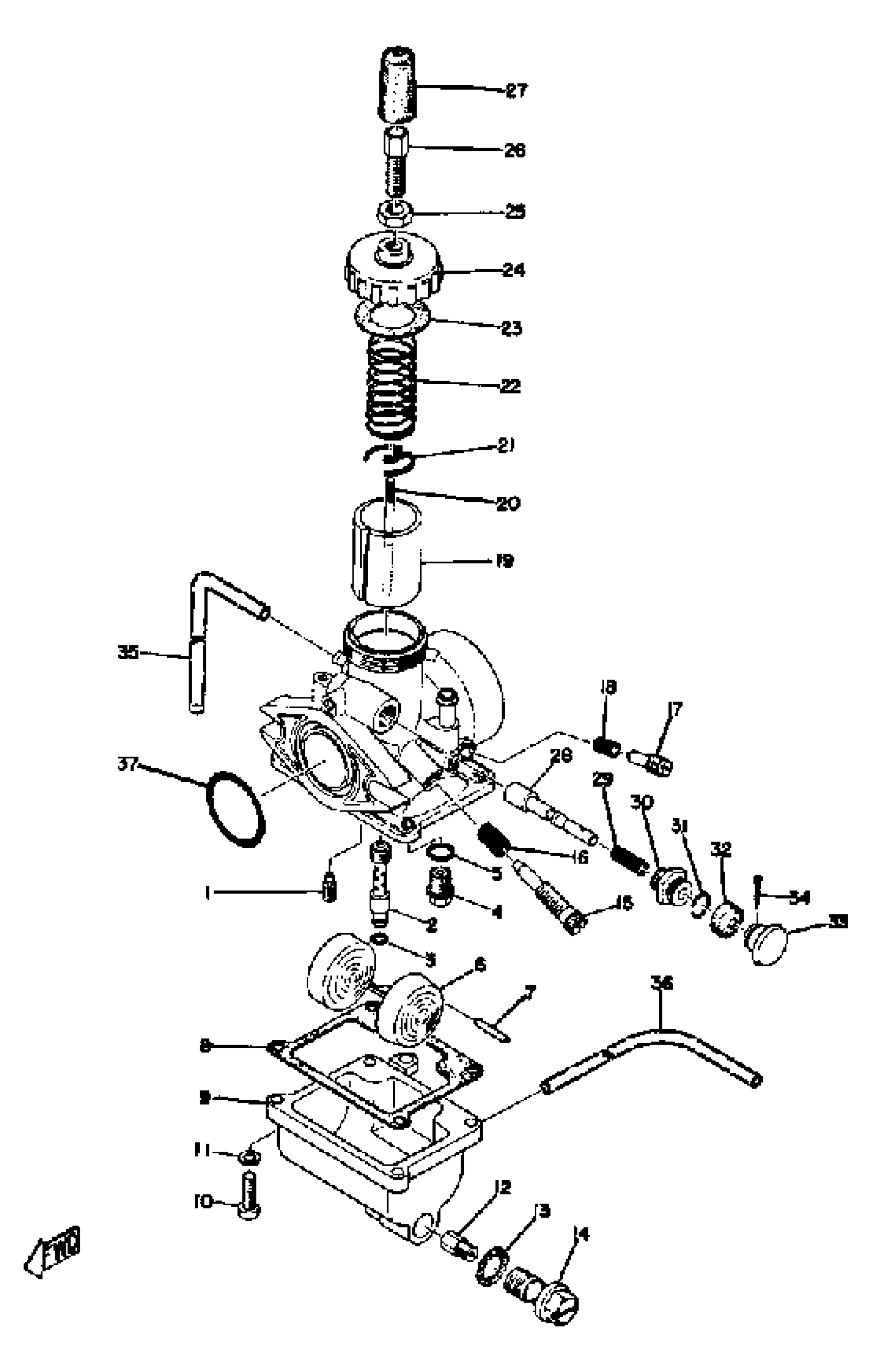

Yamaha YZ80A (YZ80A_B_C) 1974 CARBURETOR YZ80B Diagram

#

Description
Price

1

JET, PILOT (# 22.5)

260-14142-22-A0

$9.99

1

CARBURETOR ASSEMBLY 1

(492-14101-61-00)

Unavailable

2

NOZZLE, MAIN

(304-14141-30-00)

Unavailable

3

O-RING

214-14147-00-00

$7.99

4

VALVE SEAT ASSY

353-14190-15-00

Unavailable

5

WASHER, VALVE SEAT

127-14195-00-00

$7.99

6

FLOAT

4NR-14185-00-00

$41.99

7

PIN, FLOAT

127-14186-00-00

$6.65

8

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

9

. BODY, FLOAT CHMBR 1 (304-14181-00-00)

304-14181-08-00

Unavailable

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

JET, MAIN #160

137-14143-32-00

$9.99

12

JET, MAIN #170

137-14143-34-00

$7.99

12

JET, MAIN #180

137-14143-36-A1

Unavailable

13

GASKET

304-14198-00-00

Unavailable

14

BOLT,BANJO

479-14166-00-00

Unavailable

15

. SCREW, THROTTLE

304-14122-00-00

Unavailable

16

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

17

AIR SCREW SET

22K-14104-00-00

Unavailable

18

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

19

. VALVE, THROTTLE 1

304-14112-15-00

Unavailable

20

NEEDLE

166-14116-13-00

Unavailable

21

. SEAT, SPRING

137-14136-00-00

Unavailable

22

SPRING, THROTTLE VALVE

3X3-14131-00-00

Unavailable

23

GASKET

193-14126-00-00

Unavailable

24

TOP, MIXING CHAMBER

193-14158-00-00

Unavailable

25

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

26

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

27

CAP

8A7-14169-00-00

Unavailable

28

. PLUNGER, STARTER

304-14171-00-00

Unavailable

29

SPRING, PLUNGER

156-14135-00-00

Unavailable

30

CAP, PLUNGER

152-14174-00-00

Unavailable

31

CLIP, PLUNGER

353-14138-00-00

Unavailable

32

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

33

HOLDER

304-14261-00-00

Unavailable

34

PIN, COTTER

91490-16020-00

Unavailable

35

PIPE, AIR VENT

183-14197-01-00

Unavailable

36

PIPE

23F-14197-00-00

Unavailable

37

O-RING

241-14147-00-00

Unavailable
