CARBURETOR YZ80A

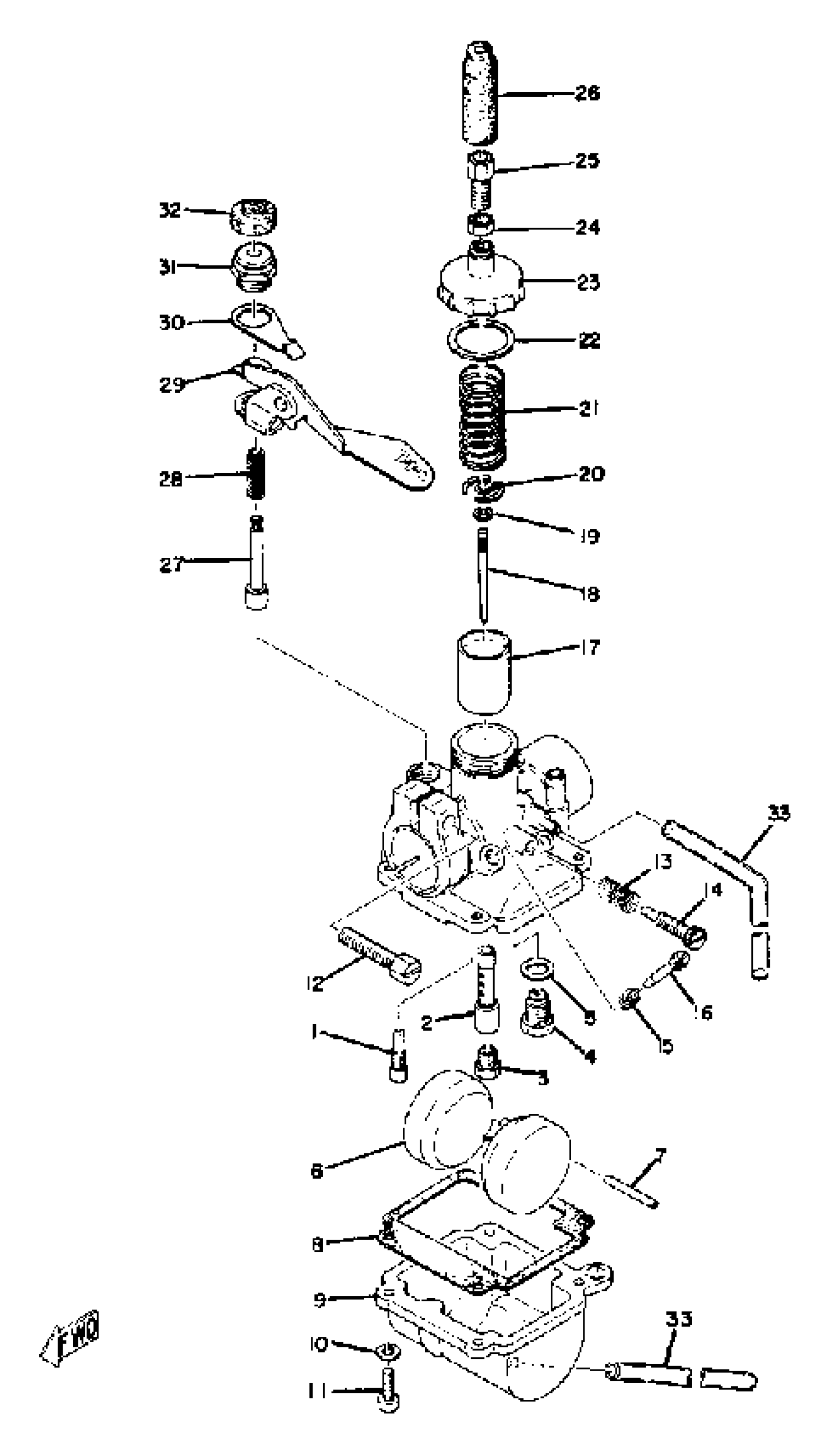

Yamaha YZ80A (YZ80A_B_C) 1974 CARBURETOR YZ80A Diagram
#
1
JET, PILOT #32
(367-14342-16-00)
Unavailable
1
. JET, PILOT #34
367-14342-17-00
Unavailable
1
JET, PILOT #36
(367-14342-18-00)
Unavailable
1
CARBURETOR ASSEMBLY 1
462-14301-60-00
Unavailable
2
NOZZLE, MAIN
(462-14341-00-00)
Unavailable
3
JET, MAIN #82
(462-14343-41-00)
Unavailable
3
JET, MAIN #84
(462-14343-42-00)
Unavailable
3
. JET, MAIN #86
462-14343-43-00
Unavailable
3
JET, MAIN #88
(462-14343-44-00)
Unavailable
3
JET, MAIN #90
(462-14343-45-00)
Unavailable
6
FLOAT
367-14385-00-00
Unavailable
9
. BODY, FLOAT CHAMBER (367-14381-00-00)
367-14381-25-00
Unavailable
10
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
11
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
12
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
13
. SPRING, PILOT ADJUSTING
646-14212-01-00
Unavailable
14
SCREW, PILOT ADJUSTING
646-14211-02-00
Unavailable
15
. SPRING, AIR ADJUST
367-14337-00-00
Unavailable
16
. SCREW, AIR ADJUSTING
396-14323-00-00
Unavailable
17
. VALVE, THROTTLE 1
367-14312-10-00
Unavailable
17
VALVE, THROTTLE 1
(367-14312-15-00)
Unavailable
17
. VALVE, THROTTLE 1
367-14312-20-00
Unavailable
18
. NEEDLE
462-14336-00-00
Unavailable
19
. CLIP
288-14137-00-00
Unavailable
20
. SEAT, SPRING (367-14136-00)
367-14136-02-00
Unavailable
21
. SPRING, THRTL VALVE
367-14331-00-00
Unavailable
22
. GASKET
367-14126-00-00
Unavailable
23
CAP, MIXING CHAMBER
(367-14168-00-33)
Unavailable
24
NUT, CABLE ADJUSTING
85L-14161-00-00
Unavailable
25
. SCREW, CABLE ADJUSTING
288-14124-00-00
Unavailable
26
. CAP
367-14169-00-00
Unavailable
27
PLUNGER,STARTER
29J-1410A-00-00
Unavailable
28
. SPRING, PLUNGER
367-14335-00-00
Unavailable
29
. LEVER, STARTER
367-14375-01-00
Unavailable
30
. STOPPER
367-14377-00-00
Unavailable
31
PLUNGER,STARTER
29J-1410A-00-00
Unavailable
32
COVER, PLUNGER CAP
(367-14373-00-00)
Unavailable
33
PIPE, OVER FLOW
367-14396-00-00
Unavailable
