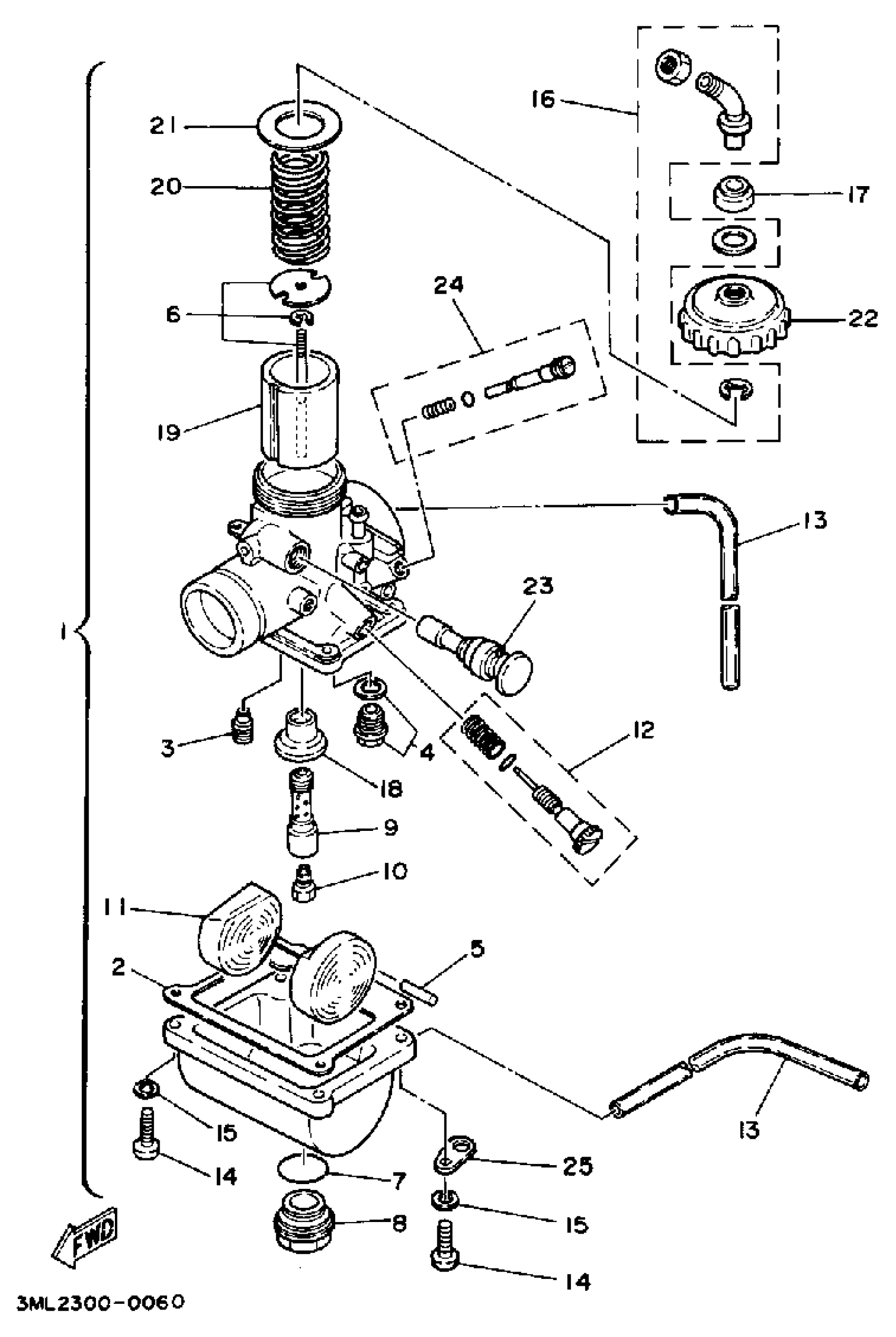

Yamaha YZ80A (YZ80A_B_C) 1974 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

1LR-14101-00-00

Unavailable

2

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

3

JET,PILOT (# 30)

260-14142-30-00

$9.99

3

JET, PILOT (# 35)

260-14142-35-00

$9.99

3

JET, PILOT (# 40)

260-14142-40-00

$8.99

4

NEEDLE VALVE SET

23L-14107-25-00

$42.99

5

PIN, FLOAT

127-14186-00-00

$6.65

6

. NEEDLE SET

58T-1490J-00-00

Unavailable

7

O-RING

3JE-14561-00-00

$16.49

8

. PLUG, SCREW

3R1-14115-00-00

Unavailable

9

. NOZZLE, MAIN

3R1-14141-50-00

Unavailable

9

. NOZZLE, MAIN

3R1-14141-52-00

Unavailable

9

. NOZZLE, MAIN

3R1-14141-54-00

Unavailable

10

JET, MAIN #270

137-14143-54-A1

$11.99

10

JET, MAIN #280

137-14143-56-A0

Unavailable

10

JET, MAIN #290

137-14143-58-A1

Unavailable

10

JET, MAIN #300

137-14143-60-A0

Unavailable

11

FLOAT

314-14185-00-00

Unavailable

12

THROTTLE SCREW SET

31J-14103-00-00

Unavailable

13

PIPE

23F-14197-00-00

Unavailable

14

SCREW, PAN HEAD

98517-04016-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

16

. CABLE ADJUST SCREW SET

22W-14106-00-00

Unavailable

17

CAP

3X3-14169-00-00

Unavailable

18

. WASHER, MAIN JET

39K-14153-00-00

Unavailable

19

. VALVE, THROTTLE 1

2X6-14112-25-00

Unavailable

19

. VALVE, THROTTLE 1

2X6-14112-30-00

Unavailable

19

. VALVE, THROTTLE 1

2X6-14112-35-00

Unavailable

20

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

21

GASKET

2A6-14126-00-00

Unavailable

22

. TOP, MIXING CHAMBER

2A6-14158-00-00

Unavailable

23

PLUNGER, STARTER

4U5-14171-00-00

Unavailable

24

AIR SCREW SET

10W-14104-00-00

Unavailable

25

PLATE

132-14146-00-00

Unavailable
