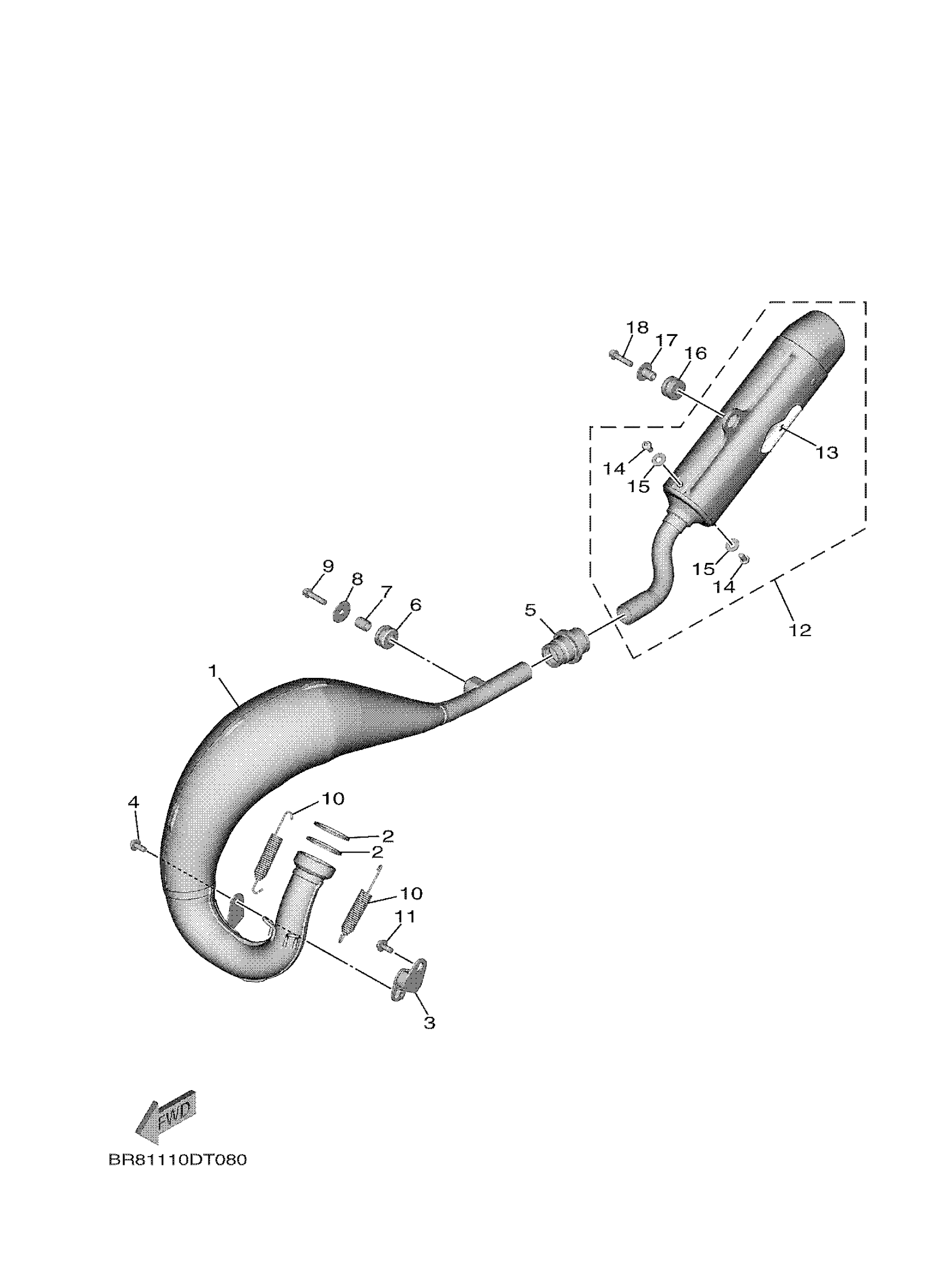

Yamaha YZ65T (YZ65) D995 2026 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

BR8-14610-00-00

Unavailable

2

SEAL, EXHAUST

BR8-14642-00-00

$9.76

3

STAY, MUFFLER 1

565-14771-01-00

$15.57

4

BOLT, WITH WASHER

90119-06133-00

$4.40

5

JOINT, EXHAUST 1

17W-14615-00-00

$28.10

6

GROMMET

90480-18411-00

$8.33

7

COLLAR(34X)

90387-105L0-00

$6.95

8

WASHER, PLATE

90201-06086-00

$5.47

9

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

10

SPRING, TENSION

90506-20018-00

$7.30

11

BOLT, WITH WASHER

90119-06133-00

$4.40

12

SILENCER, EXHAUST

BR8-14753-00-00

$176.44

13

FIBER

BR8-1469A-00-00

$35.09

14

BOLT, BUTTON HEAD

92017-06010-00

$2.86

15

. WASHER, PLATE

90201-06050-00

Unavailable

16

GROMMET(4EW)

90480-16561-00

Unavailable

17

COLLAR

90387-06168-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47
