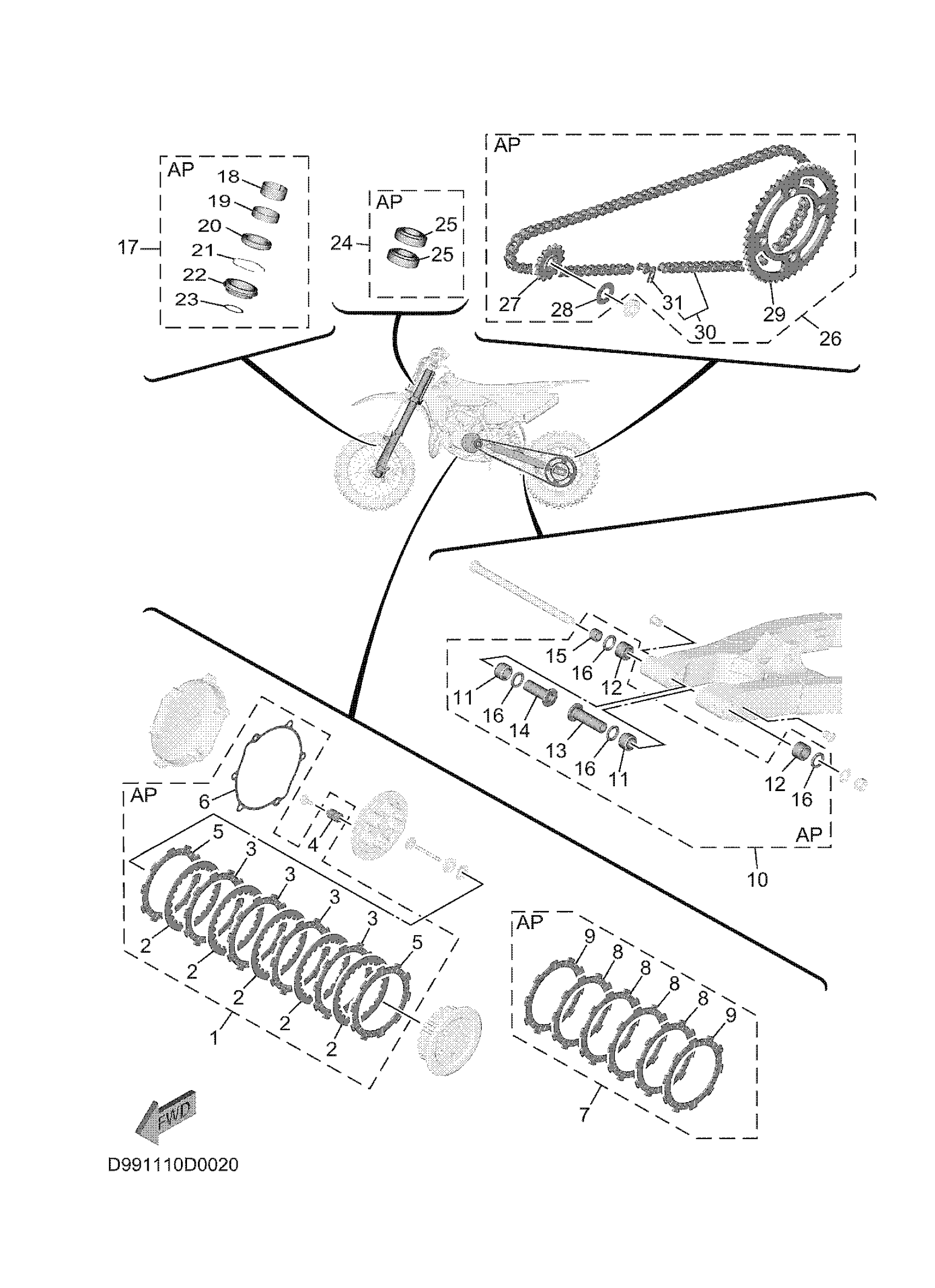

Yamaha YZ65T (YZ65) D995 2026 3 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

BR8-W001G-00-00

$123.91

2

PLATE, CLUTCH 1

131-16324-10-00

$17.70

3

PLATE, FRICTION

4ES-16321-00-00

$14.81

4

SPRING, COMPRESSION(58T)

90501-204A0-00

$5.75

5

PLATE, FRICTION

3XP-16321-00-00

$16.14

6

GASKET, CARBURETOR COVER 2

5PA-15463-00-00

$10.40

7

FRICTION PLATE KIT

BR8-W001M-00-00

$64.67

8

PLATE, FRICTION

4ES-16321-00-00

$14.81

9

PLATE, FRICTION

3XP-16321-00-00

$16.14

10

SWING ARM PIVOT BEARING KIT

1SN-W002C-00-00

$100.21

11

BUSH(39K)

90385-17042-00

$17.77

12

BEARING, CYLINDRICAL(39K)

93317-21746-00

$27.78

13

COLLAR(39K)

90387-127J8-00

$30.33

14

COLLAR(39K)

90387-127J7-00

$25.76

15

COLLAR(4ES)

90387-1200U-00

$15.71

16

OIL SEAL

93109-17071-00

Unavailable

17

FORK SEAL KIT (ONE FORK)

BR8-W003B-00-00

Unavailable

18

PISTON, FRONT FORK

5PA-23171-00-00

Unavailable

19

METAL, SLIDE 1

5PA-23125-00-00

Unavailable

20

OIL SEAL

4ES-23145-00-00

Unavailable

21

RING, SNAP

4A1-23156-00-00

Unavailable

22

SEAL, DUST

4ES-23144-00-00

Unavailable

23

GASKET

2HH-23158-L0-00

Unavailable

24

STEERING BEARING K

B1U-W000B-00-00

Unavailable

25

BEARING(4ES)

93332-00079-00

Unavailable

26

CHAIN & SPROCKET KIT

BR8-W001A-10-00

Unavailable

27

SPROCKET, DRIVE (14T)

9381A-14243-00

Unavailable

28

WASHER, LOCK(2HG)

90215-20261-00

Unavailable

29

SPROCKET, DRIVEN (47T)

BR8-25447-00-00

Unavailable

30

CHAIN

9Y582-48113-00

Unavailable

31

JOINT, CHAIN

94682-48001-00

Unavailable
