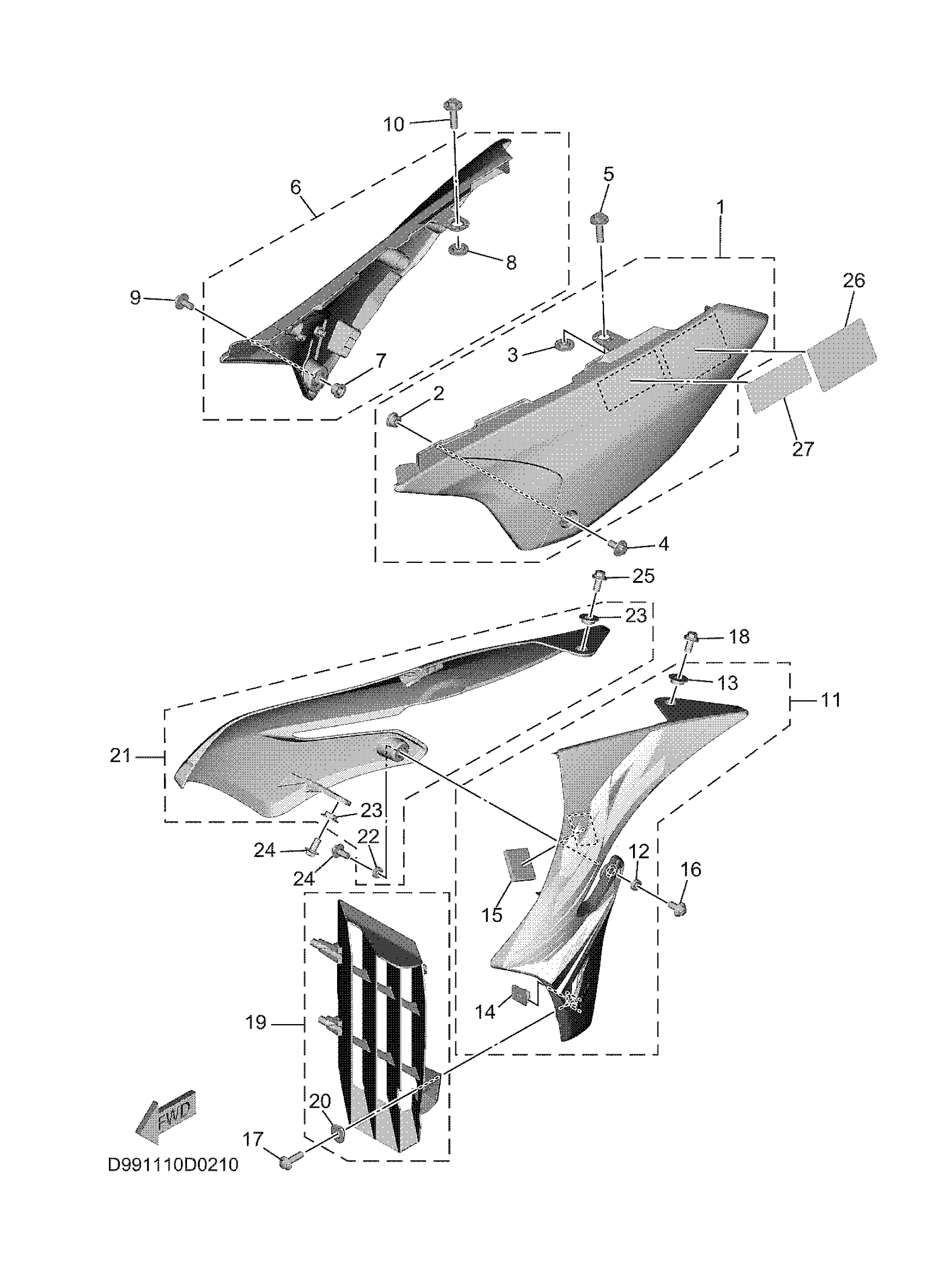

Yamaha YZ65S (YZ65) D991 2025 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

BR8-21710-10-00

$32.99

2

COLLAR

90387-06307-00

$5.60

3

COLLAR

90387-07045-00

$7.49

4

BOLT, FLANGE

90105-06170-00

$4.72

5

BOLT, WITH WASHER

90119-06149-00

$8.49

6

SIDE COVER ASSY 2

BR8-21720-10-00

$32.99

7

COLLAR

90387-06307-00

$5.60

8

COLLAR

90387-07045-00

$7.49

9

BOLT, FLANGE

90105-06170-00

$4.72

10

BOLT, WITH WASHER

90119-06149-00

$8.49

11

SIDE COVER ASSY 3

BR8-21730-00-00

Unavailable

11

SIDE COVER INSERT

BR8-217R0-N0-00

$90.99

12

COLLAR

90387-06106-00

$7.49

13

COLLAR

17D-14449-00-00

$7.99

14

NUT, SPRING(4ES)

90183-06069-00

Unavailable

15

DAMPER

BR8-2174X-00-00

Unavailable

16

BOLT, FLANGE

90105-06064-00

Unavailable

17

BOLT, FLANGE

90105-06203-00

Unavailable

18

BOLT, WITH WASHER

90119-06133-00

Unavailable

19

PANEL 1

BR8-2172A-20-00

Unavailable

20

COLLAR

17D-14449-00-00

$7.99

21

SIDE COVER ASSY 4

BR8-21740-00-00

Unavailable

21

SIDE COVER INSERT

BR8-217S0-N0-00

Unavailable

22

COLLAR

90387-06106-00

$7.49

23

COLLAR

17D-14449-00-00

$7.99

24

BOLT, FLANGE

90105-06064-00

Unavailable

25

BOLT, WITH WASHER

90119-06133-00

Unavailable

26

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

27

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable
