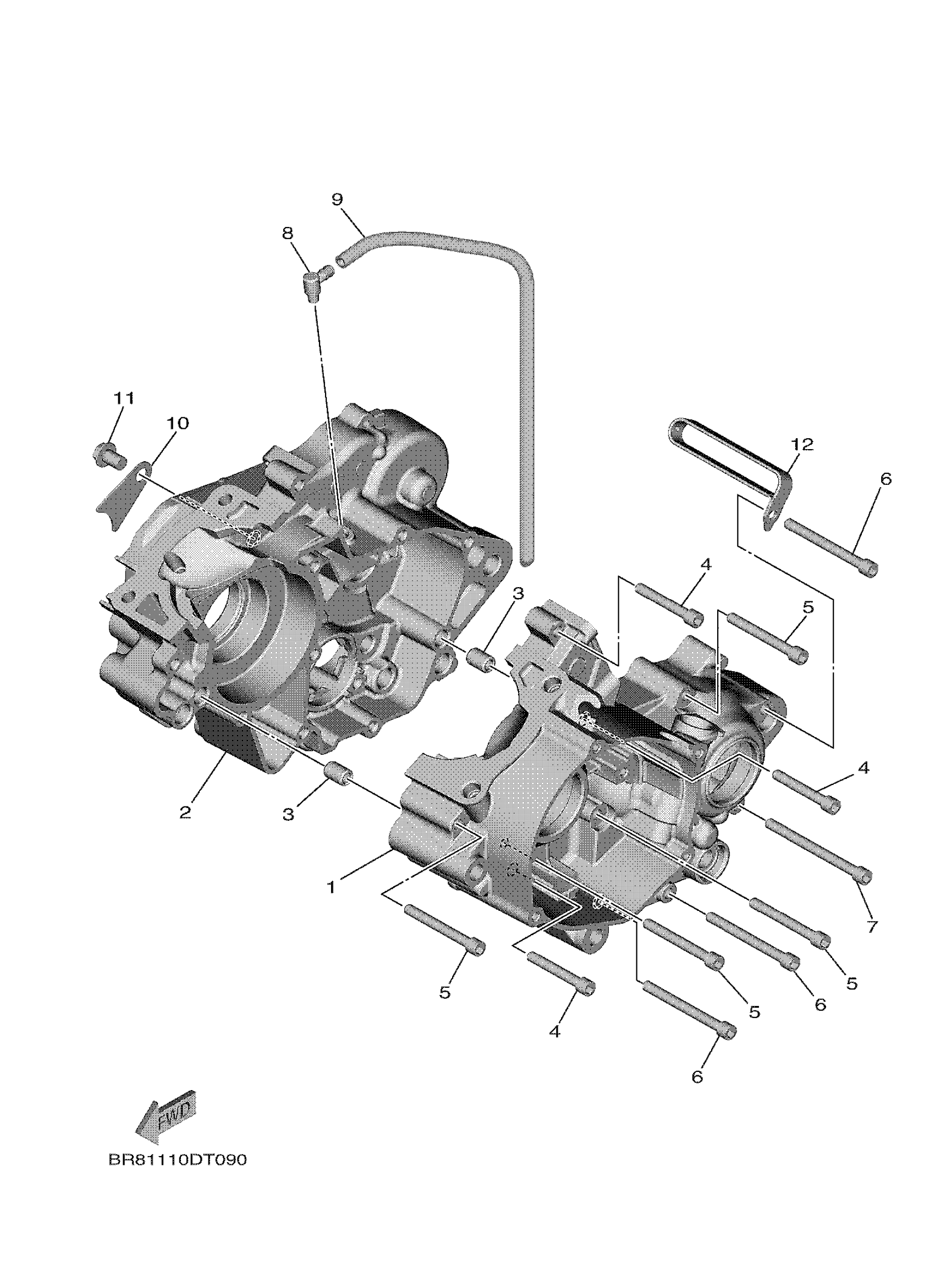

Yamaha YZ65S (YZ65) D991 2025 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

BR8-15111-00-00

Unavailable

2

CRANKCASE 2

BR8-15121-00-00

$683.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT

91342-06040-00

$1.12

5

BOLT

91342-06050-00

Unavailable

6

BOLT

91342-06060-00

Unavailable

7

BOLT

91342-06070-00

$2.17

8

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

9

HOSE (L340)

90445-08684-00

$4.29

10

HOLDER

5PA-15118-00-00

$6.99

11

BOLT, FLANGE

95022-08012-00

$12.49

12

CLAMP(4NX)

90461-10136-00

$23.99
