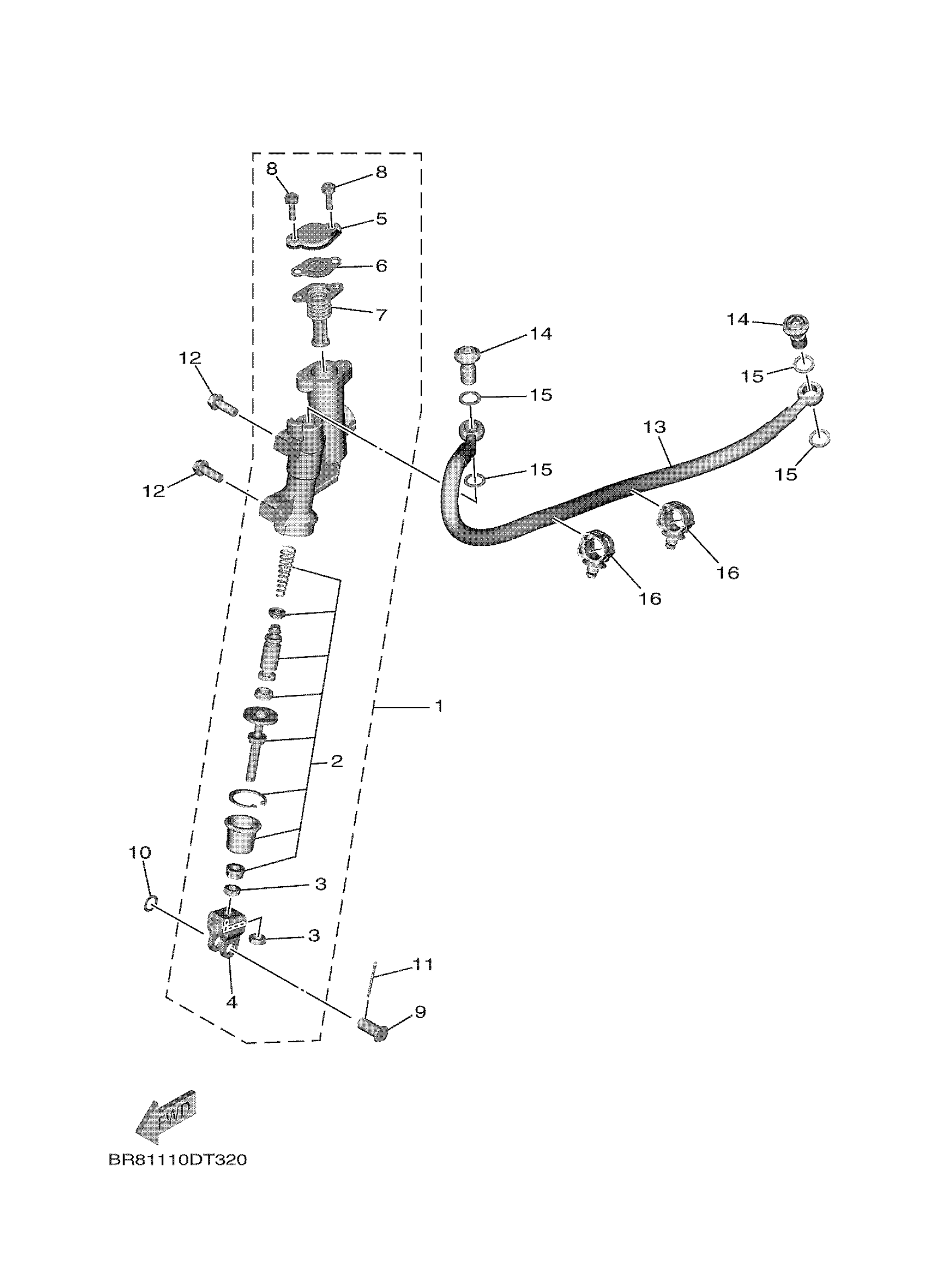

Yamaha YZ65R (YZ65) BR8S 2024 REAR MASTER CYLINDER Diagram

Description

Price

RR. MASTER CYLINDER ASSY.

BR8-2583V-00-00

$126.23

CYLINDER KIT, MASTER

BR8-25808-00-00

$53.47

NUT, HEXAGON SMALL

95317-08700-00

$6.57

JOINT

2YK-27222-00-00

$18.91

CAP, RESERVOIR

5UN-25852-50-00

$14.24

PLATE, DIAPHRAGM

5UN-2585B-00-00

$5.99

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$11.48

BOLT

5UN-27217-00-00

$4.44

PIN, CLEVIS(2YK)

90240-08124-00

$5.30

WASHER, PLATE 1562722600

90201-08083-00

$5.86

PIN, COTTER

91490-16020-00

$5.74

BOLT, FLANGE

90105-06090-00

$5.80

HOSE, BRAKE 2

BR8-25873-00-00

Unavailable

BOLT, UNION

90401-10172-00

$3.46

GASKET

90430-10005-00

$6.57

CLAMP

90464-12018-00

Unavailable
