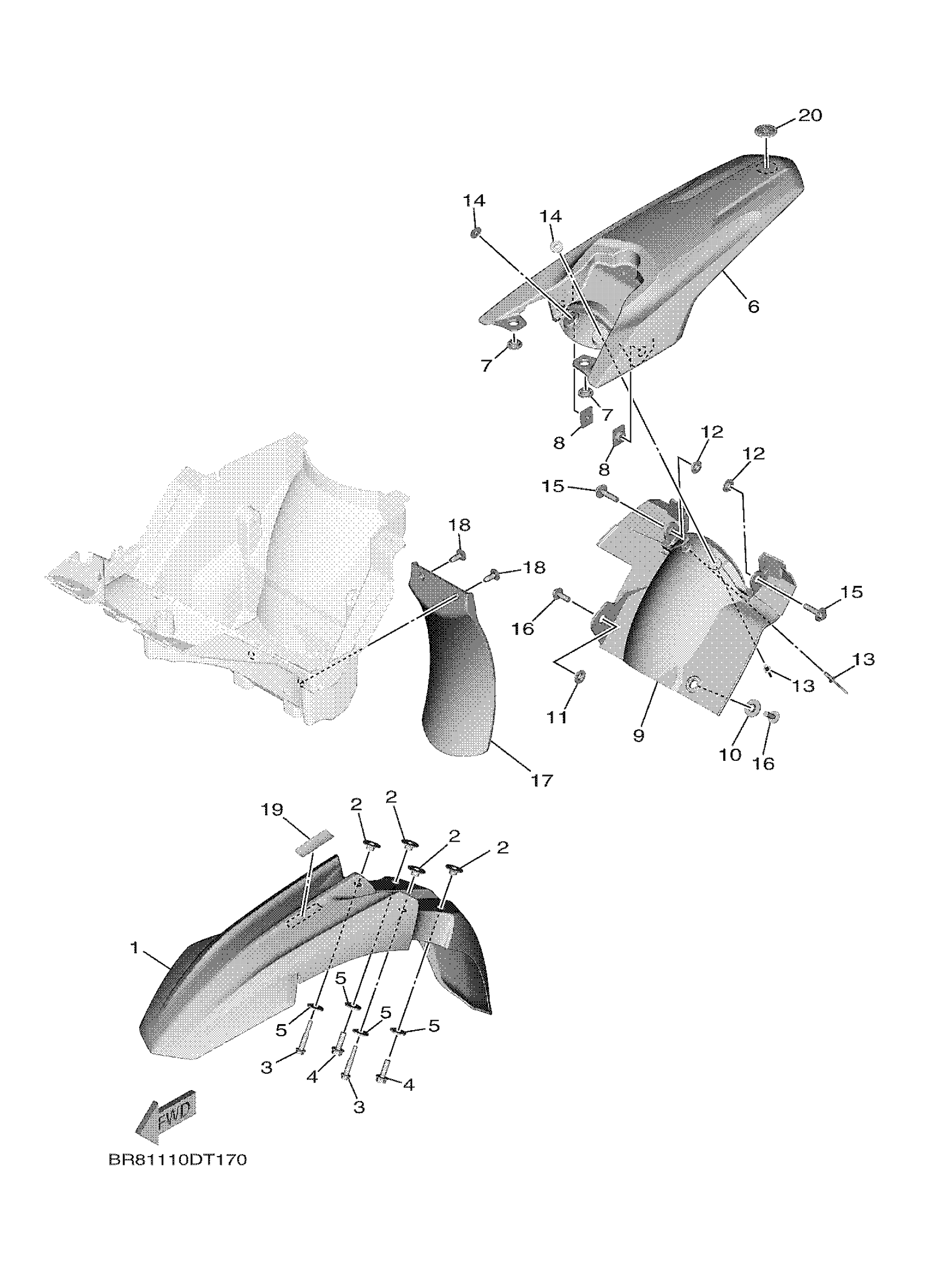

Yamaha YZ65R (YZ65) BR8S 2024 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BR8-21511-00-00

$32.89

2

COLLAR

90387-06259-00

$5.76

3

BOLT, FLANGE

90105-06210-00

$8.77

4

BOLT, FLANGE

90105-06127-00

$5.75

5

WASHER, PLATE

90201-06077-00

$4.76

6

FENDER, REAR

BR8-21611-00-00

$40.58

7

COLLAR

90387-08086-00

$5.05

8

NUT, REAR FENDER

5XE-21635-10-00

$11.84

9

FENDER 2

BR8-2162R-00-00

Unavailable

10

COLLAR(3XJ)

90387-064X4-00

$5.03

11

COLLAR

90387-07045-00

$5.59

12

COLLAR

90387-07027-00

$6.12

13

RIVET, BLIND

90267-40019-00

$1.36

14

WASHER, PLATE

90201-04030-00

$1.41

15

BOLT, WITH WASHER

90119-06149-00

$5.75

16

BOLT, FLANGE

90105-06170-00

Unavailable

17

GUARD, FLAP

17D-21642-00-00

Unavailable

18

SCREW, TAPPING

97702-60016-00

Unavailable

19

LABEL, CAUTION

3XJ-2415E-A2-00

Unavailable

20

TUNING FORK MARK

5FK-2175C-31-00

Unavailable
