2022 Yamaha YZ65 (YZ65N) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2022 Yamaha YZ65 (YZ65N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

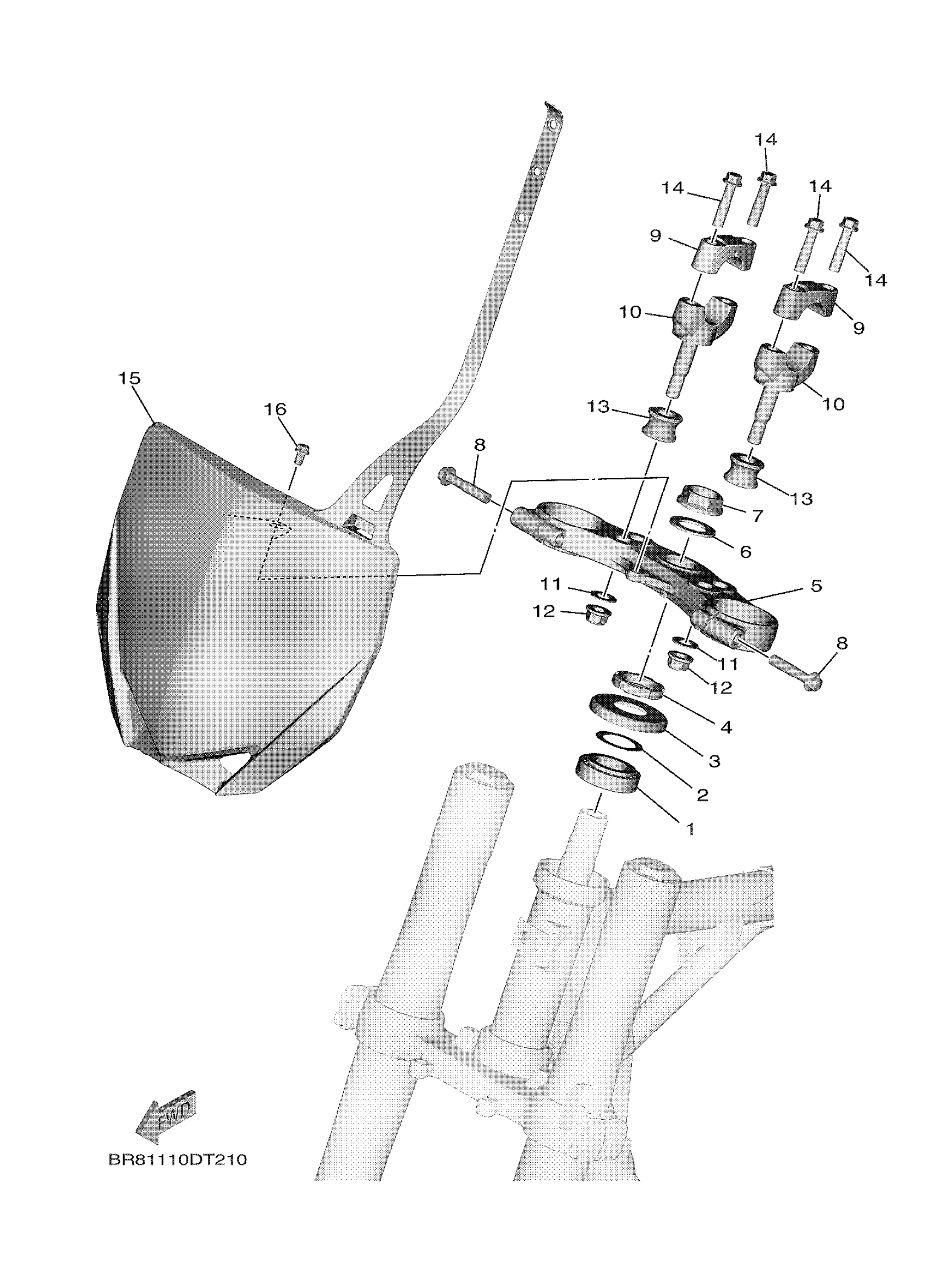

2022 Yamaha YZ65 (YZ65N) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4ES)

93332-00079-00

1
Out of stock

2

WASHER, PLATE(1FK)

90201-256K5-00

1
Out of stock

3

COVER, BALL RACE 1

1J7-23415-00-00

1
Out of stock

4

NUT

90179-25004-00

1
Out of stock

5

CROWN, HANDLE

BR8-23435-00-00

—
Out of stock

6

WASHER, PLATE

90201-22018-00

1
Out of stock

7

NUT

90179-22025-00

1
Out of stock

8

BOLT, FLANGE DEEP RECESS

95E32-08040-00

1
Out of stock

9

HOLDER, HANDLE UPPER

B2W-23441-00-00

1
Out of stock

10

HOLDER, HANDLE LOWER

BR8-23442-00-00

1
Out of stock

11

WASHER, PLATE

90201-10045-00

1
Out of stock

12

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

13

COLLAR

BR8-23113-00-00

1
Out of stock

14

BOLT, FLANGE DEEP RECESS

95E34-08030-00

1
Out of stock

15

PLATE, NUMBER

1SN-23485-10-00

1
Out of stock

16

BOLT, FLANGE

90105-06064-00

—
Out of stock
← Rear Wheel Steering Handle & Cable →
