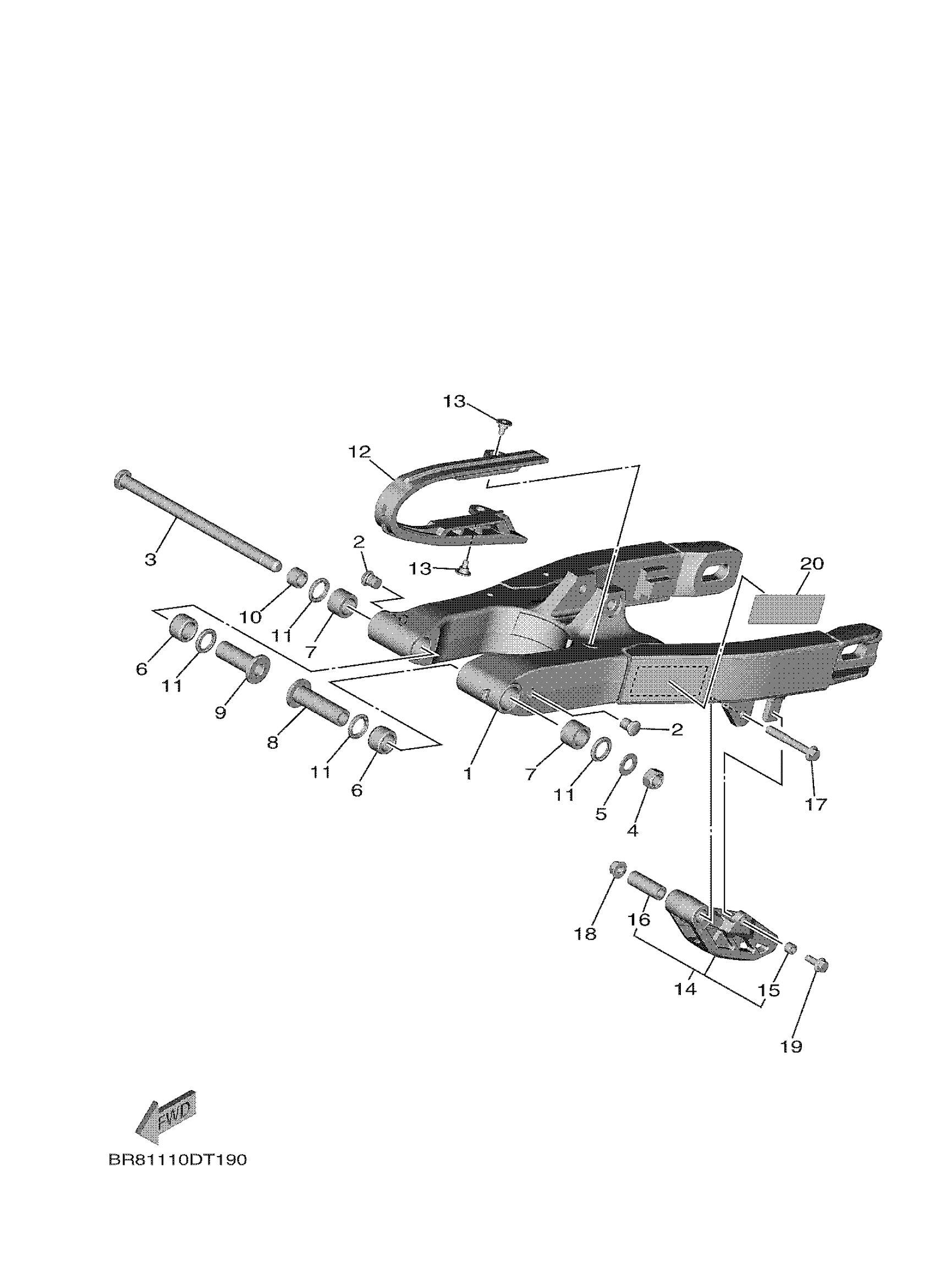

Yamaha YZ65N (YZ65) BR8E 2022 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

BR8-22110-10-00

$577.99

2

PLUG (31M)

90338-10150-00

$5.76

3

SHAFT, PIVOT

BR8-22141-00-00

$22.15

4

NUT, U

95612-12100-00

$3.82

5

WASHER, PLATE

90201-12032-00

$4.26

6

BUSH(39K)

90385-17042-00

$17.77

7

BEARING, CYLINDRICAL(39K)

93317-21746-00

$27.78

8

COLLAR(39K)

90387-127J8-00

$30.33

9

COLLAR(39K)

90387-127J7-00

$25.76

10

COLLAR(4ES)

90387-1200U-00

$15.71

11

OIL SEAL

93109-17071-00

$6.29

12

SEAL, GUARD

BR8-22151-00-00

$79.42

13

SCREW, 1

1C3-22969-90-00

$5.37

14

SUPPORT, CHAIN

BR8-22199-00-00

$45.19

15

COLLAR

90387-06207-00

$5.87

16

COLLAR

90387-09002-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95E32-08055-00

Unavailable

18

NUT, SELF-LOCKING

95602-08200-00

Unavailable

19

BOLT, FLANGE DEEP RECESS

95D02-06016-00

Unavailable

20

LABEL, TIRE

3RV-21668-A1-00

Unavailable
