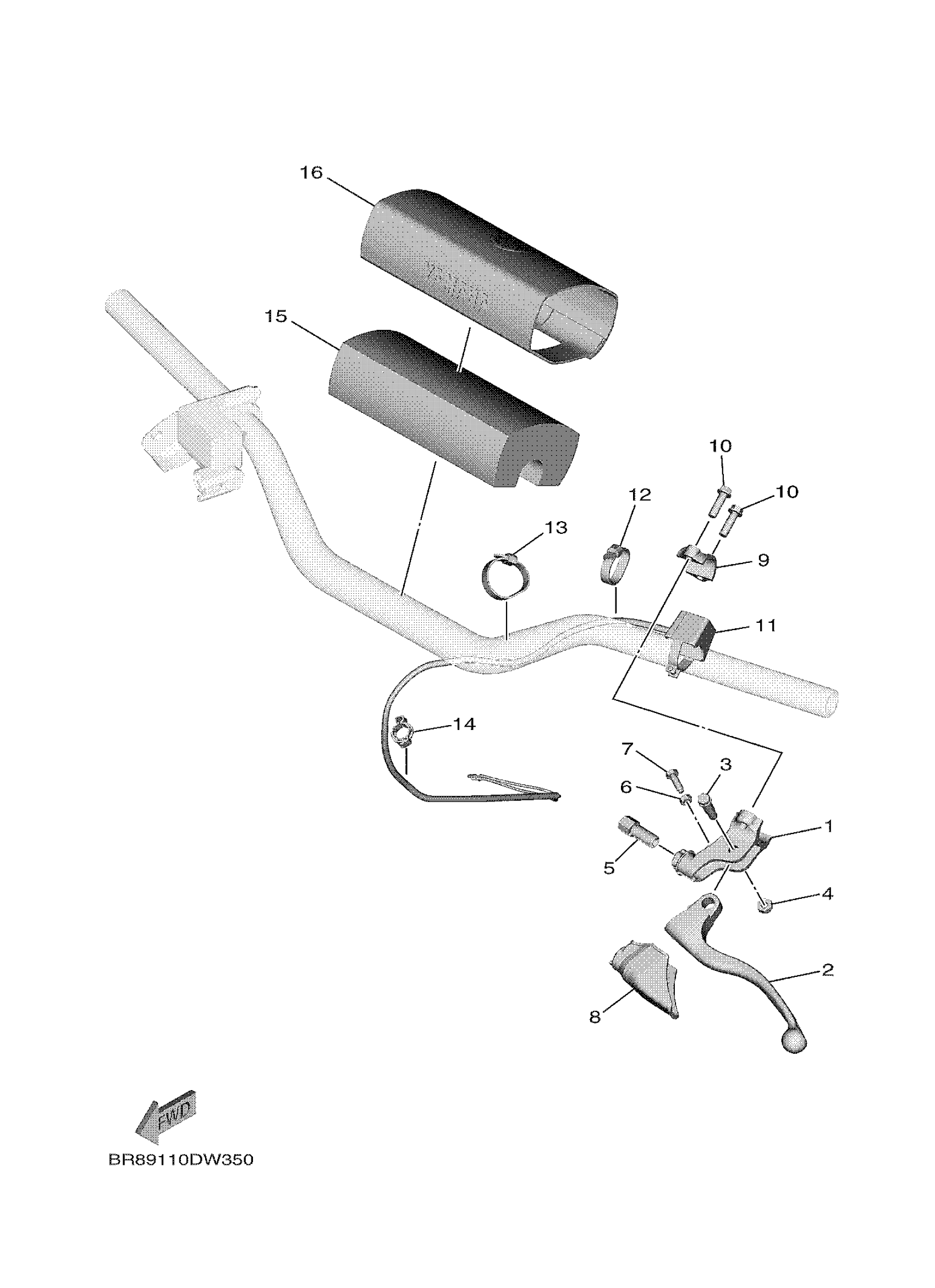

Yamaha YZ65N (YZ65) BR8E 2022 HANDLE SWITCH & LEVER Diagram

Description

Price

HOLDER, LEVER 1

17D-82911-00-00

$37.99

LEVER 1

17D-83912-01-00

$42.99

BOLT

90109-06034-00

$7.49

NUT, LENS FITTING

5LP-84126-10-00

$6.99

BOLT, ADJUSTING

17D-26337-00-00

$45.99

NUT, HEXAGON (663)

95380-05600-00

$8.49

BOLT

90101-05005-00

$3.08

COVER, HANDLE LEVER 1

34P-26372-00-00

$14.49

HOLDER, LEVER LOWER 1

33D-82913-00-00

$29.99

BOLT, FLANGE DEEP RECESS

95E32-06020-00

$0.86

SWITCH, HANDLE 1

BR8-83976-01-00

Unavailable

CLAMP

90464-13077-00

$8.49

CLAMP(4FM)

90464-15195-00

$4.41

CLAMP

90464-12013-00

$8.49

PROTECTOR, HANDLEBAR

5XC-26124-90-00

$42.99

COVER, HANDLE UPPER 1

BF1-26143-00-00

Unavailable
