Partiron

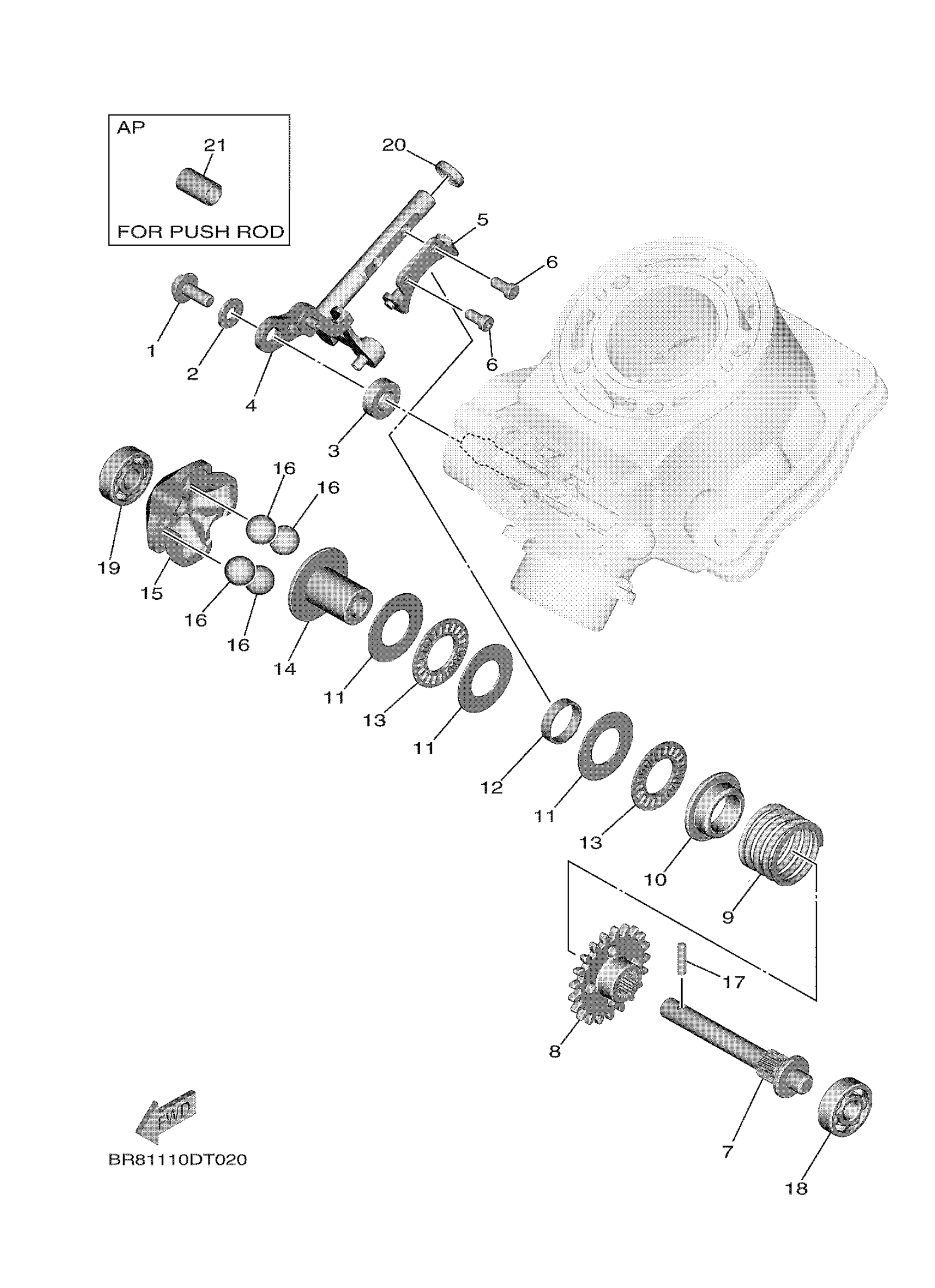

Yamaha YZ65N (YZ65) BR8E 2022 GOVERNOR Diagram

#

Description
Price

1

BOLT, FLANGE

90105-05014-00

$2.07

2

WASHER, PLATE

90201-05021-00

$1.54

3

COLLAR (7R4)

90387-085E1-00

$5.02

4

PUSH ROD ASSY

BR8-11990-00-00

Unavailable

5

FORK, GOVERNOR

3JE-11922-01-00

$35.29

6

BOLT

91312-04008-00

$2.19

7

SHAFT, GOVERNOR

5X4-11921-02-00

$49.12

8

GEAR, GOVERNOR

BR8-11953-00-00

$28.74

9

SPRING, COMPRESSION

90501-26001-00

$3.97

10

PLATE

5CU-11952-00-00

$14.92

11

WASHER, PLATE (5X5)

90201-154F5-00

$6.51

12

COLLAR (5X4)

90387-152F2-00

$10.70

13

BEARING, THRUST (713)

93340-21505-00

$15.55

14

RETAINER, WEIGHT

5CU-11912-00-00

$54.59

15

RETAINER

5CU-11911-00-00

Unavailable

16

BALL(71F)

93507-16020-00

Unavailable

17

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

18

BEARING

93300-60801-00

Unavailable

19

BEARING

93300-60801-00

Unavailable

20

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

21

COLLAR(73H)

90387-080K6-00

Unavailable
