Description

Price

1

FRONT FRAME COMP.

BR8-21101-01-00

$1,300.99

2

REAR FRAME COMP.

BR8-21190-00-00

Unavailable

3

BOLT, WASHER BASED(36Y)

90105-08307-00

$9.49

4

BOLT, FLANGE

90105-08231-00

$3.40

5

BOLT, FLANGE

90105-10148-00

$7.49

6

BOLT, FLANGE

90105-10174-00

$11.49

7

WASHER, PLATE

90201-10045-00

$8.49

8

NUT

90179-10024-00

$10.49

9

TENSIONER

30X-22178-00-00

$35.99

10

BUSH

4V4-22184-00-00

$4.47

11

WASHER, PLATE

90201-08045-00

$5.60

12

COLLAR

90387-08041-00

$8.49

13

BOLT, FLANGE DEEP RECESS

95E32-08040-00

$0.85

14

TENSIONER

4ES-22178-01-00

$4.47

15

BOLT, WITH WASHER

90119-06200-00

Unavailable

16

COLLAR(J45)

90387-064T3-00

Unavailable

17

PROTECTOR, FUEL TANK

3HA-24141-00-00

Unavailable

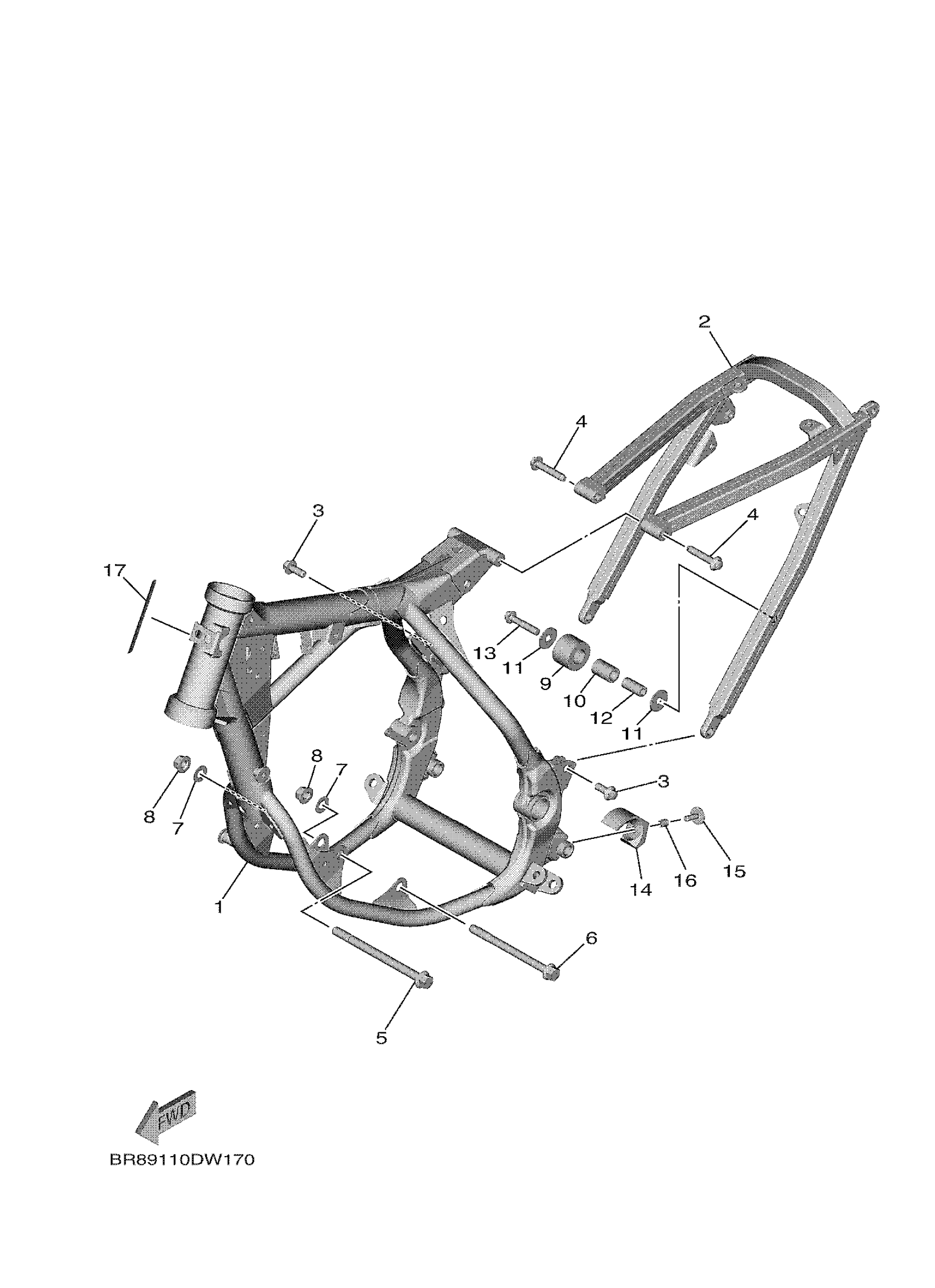

Yamaha YZ65N (YZ65) BR8E 2022 FRAME Diagram

FRONT FRAME COMP.

REAR FRAME COMP.

BOLT, WASHER BASED(36Y)

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

NUT

TENSIONER

BUSH

WASHER, PLATE

COLLAR

BOLT, FLANGE DEEP RECESS

TENSIONER

BOLT, WITH WASHER

COLLAR(J45)

PROTECTOR, FUEL TANK
