Description

Price

1

BOLT, FLANGE

90105-05014-00

$2.71

2

WASHER, PLATE

90201-05021-00

$1.96

3

COLLAR (7R4)

90387-085E1-00

$7.49

4

PUSH ROD ASSY

BR8-11990-00-00

Unavailable

5

FORK, GOVERNOR

3JE-11922-01-00

$43.99

6

BOLT

91312-04008-00

$2.82

7

SHAFT, GOVERNOR

5X4-11921-02-00

$56.99

8

GEAR, GOVERNOR

BR8-11953-00-00

$39.99

9

SPRING, COMPRESSION

90501-26001-00

Unavailable

10

PLATE

5CU-11952-00-00

$17.49

11

WASHER, PLATE (5X5)

90201-154F5-00

$10.49

12

COLLAR (5X4)

90387-152F2-00

$14.99

13

BEARING, THRUST (713)

93340-21505-00

$18.99

14

RETAINER, WEIGHT

5CU-11912-00-00

$60.99

15

RETAINER

5CU-11911-00-00

Unavailable

16

BALL(71F)

93507-16020-00

Unavailable

17

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

18

BEARING

93300-60801-00

Unavailable

19

BEARING

93300-60801-00

Unavailable

20

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

21

COLLAR(73H)

90387-080K6-00

Unavailable

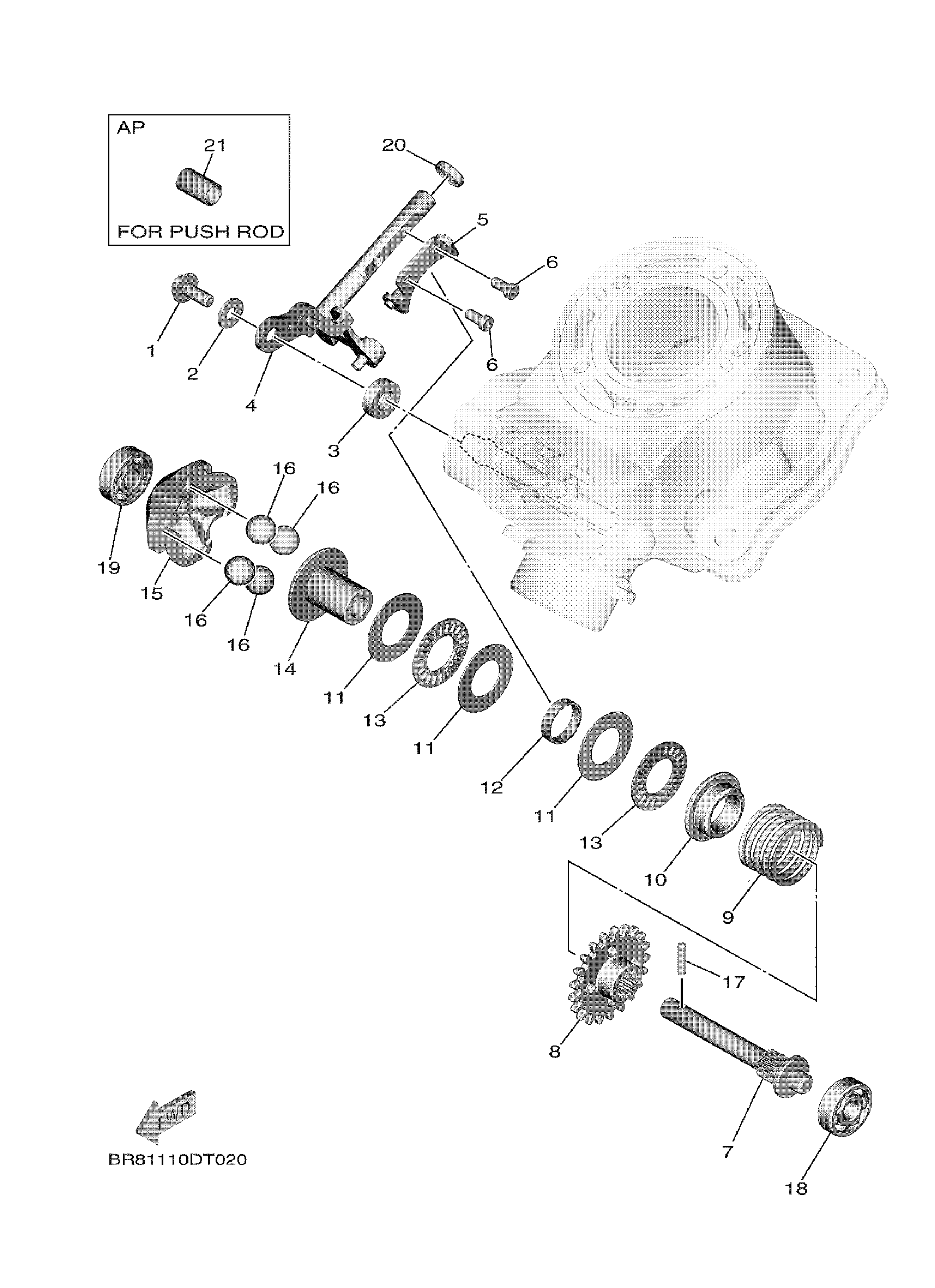

Yamaha YZ65M (YZ65) BR89 2021 GOVERNOR Diagram

BOLT, FLANGE

WASHER, PLATE

COLLAR (7R4)

PUSH ROD ASSY

FORK, GOVERNOR

BOLT

SHAFT, GOVERNOR

GEAR, GOVERNOR

SPRING, COMPRESSION

PLATE

WASHER, PLATE (5X5)

COLLAR (5X4)

BEARING, THRUST (713)

RETAINER, WEIGHT

RETAINER

BALL(71F)

PIN, DOWEL(3HN)

BEARING

BEARING

OIL SEAL (8X12X3-371)

COLLAR(73H)
