Description

Price

1

WHEEL RIM ASSY

BR8-25102-00-00

$360.99

2

HUB, FRONT

4ES-25111-01-00

$175.99

3

SPACER, BEARING

BR8-25117-00-00

$26.99

4

BEARING(3WF)

93306-20119-00

$33.99

5

OIL SEAL (22X32X5-818)

93102-22087-00

$12.49

6

DISC, BRAKE (LEFT)

BR8-2582T-00-00

$85.99

7

RIM (1.60-14)

94416-14007-00

$369.99

8

SPOKE SET, FRONT

BR8-25104-00-00

$47.99

9

SCREW, COUNTERSUNK

90151-06023-00

$8.49

10

GROMMET (397)

90480-10068-00

$8.49

11

FRONT TIRE SET

BR8-25108-01-00

Unavailable

15

BOLT, FLANGE

90105-12120-00

$17.99

16

NUT, SELF-LOCKING

90185-12010-00

$8.49

17

WASHER, PLATE

90201-12055-00

$8.49

18

COLLAR, WHEEL

BR8-25183-00-00

$15.99

19

WRENCH, HEXAGON

1RH-28166-00-00

Unavailable

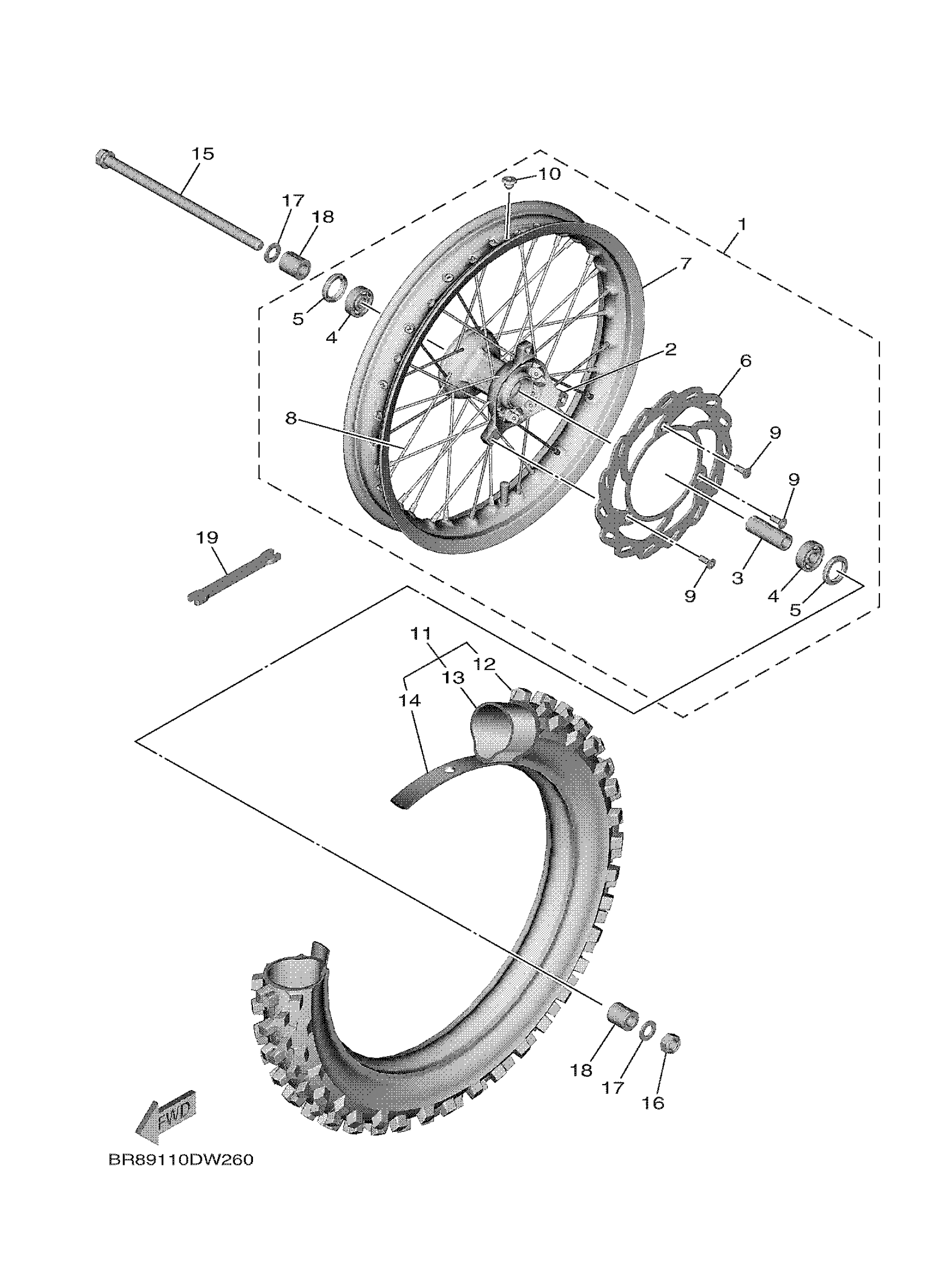

Yamaha YZ65M (YZ65) BR89 2021 FRONT WHEEL Diagram

WHEEL RIM ASSY

HUB, FRONT

SPACER, BEARING

BEARING(3WF)

OIL SEAL (22X32X5-818)

DISC, BRAKE (LEFT)

RIM (1.60-14)

SPOKE SET, FRONT

SCREW, COUNTERSUNK

GROMMET (397)

FRONT TIRE SET

BOLT, FLANGE

NUT, SELF-LOCKING

WASHER, PLATE

COLLAR, WHEEL

WRENCH, HEXAGON
