Description

Price

1

FENDER, FRONT

BR8-21511-00-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06210-00

$10.49

4

BOLT, FLANGE

90105-06127-00

$8.49

5

WASHER, PLATE

90201-06077-00

$5.60

6

FENDER, REAR

BR8-21611-00-00

$39.99

7

COLLAR

90387-08086-00

$7.49

8

NUT, REAR FENDER

5XE-21635-10-00

$13.49

9

FENDER 2

BR8-2162R-00-00

Unavailable

10

COLLAR(3XJ)

90387-064X4-00

$7.49

11

COLLAR

90387-07045-00

$7.49

12

COLLAR

90387-07027-00

$8.49

13

RIVET, BLIND

90267-40019-00

$2.17

14

WASHER, PLATE

90201-04030-00

$2.23

15

BOLT, WITH WASHER

90119-06149-00

$8.49

16

BOLT, FLANGE

90105-06170-00

Unavailable

17

GUARD, FLAP

17D-21642-00-00

Unavailable

18

SCREW, TAPPING

97702-60016-00

Unavailable

19

LABEL, CAUTION

3XJ-2415E-A1-00

Unavailable

20

TUNING FORK MARK

5FK-2175C-31-00

Unavailable

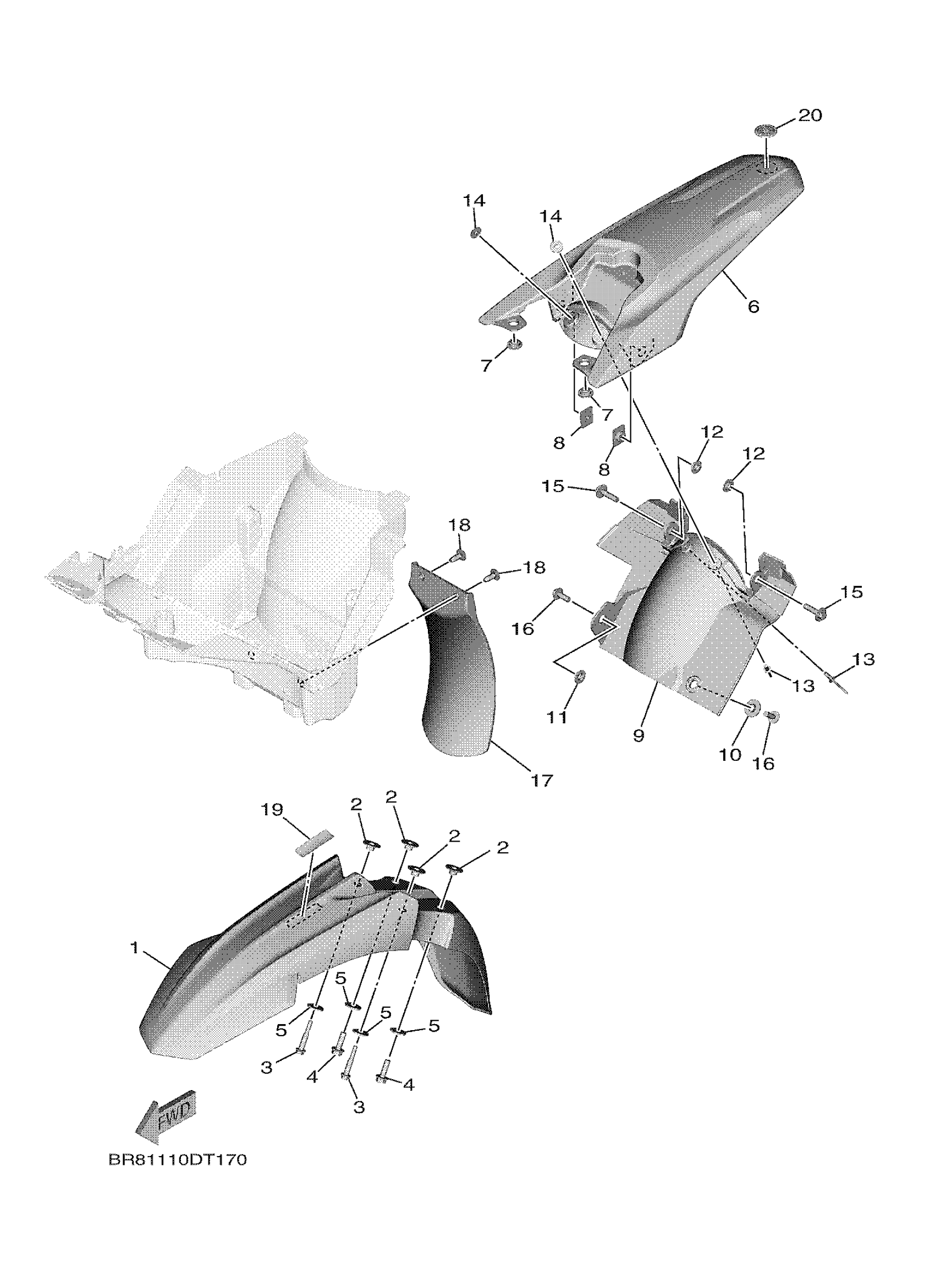

Yamaha YZ65M (YZ65) BR89 2021 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

FENDER, REAR

COLLAR

NUT, REAR FENDER

FENDER 2

COLLAR(3XJ)

COLLAR

COLLAR

RIVET, BLIND

WASHER, PLATE

BOLT, WITH WASHER

BOLT, FLANGE

GUARD, FLAP

SCREW, TAPPING

LABEL, CAUTION

TUNING FORK MARK
