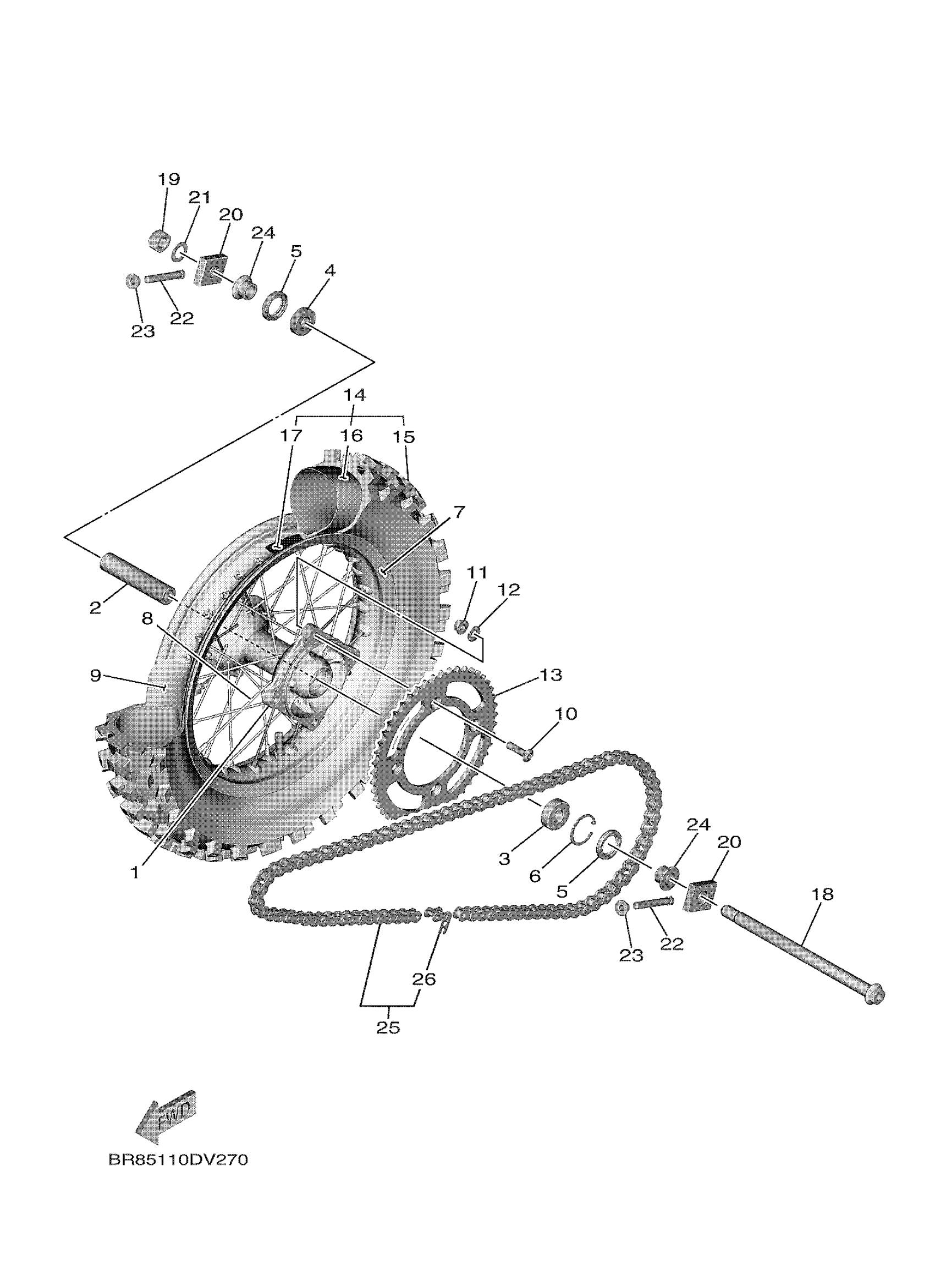

Yamaha YZ65L (YZ65) BR85 2020 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4ES-25311-00-00

$302.99

2

SPACER, BEARING

BR8-25317-00-00

Unavailable

3

BRG,R-B 6002RS 32MM 30G KY

93306-00201-00

$37.99

4

BEARING

93306-20203-00

$24.99

5

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

6

CIRCLIP(47Y)

99009-35500-00

$8.49

7

RIM (1.60-12)

94416-12005-00

$252.99

8

SPOKE SET, REAR

BR8-25304-00-00

$47.99

9

SPACER, BEAD

5X2-25394-00-00

$39.99

10

SCREW, COUNTERSUNK

90152-08001-00

$3.55

11

NUT, SELF-LOCKING

90185-08008-00

$7.49

12

WASHER, PLATE

90201-08043-00

$7.49

13

SPROCKET, DRIVEN (46T)

BR8-25446-00-00

Unavailable

13

SPROCKET, DRIVEN (47T)

BR8-25447-00-00

$71.99

13

SPROCKET, DRIVEN (48T)

BR8-25448-00-00

Unavailable

14

REAR TIRE SET

BR8-25308-01-00

Unavailable

18

AXLE, WHEEL

BR8-25381-00-00

Unavailable

19

NUT, SELF-LOCKING

90185-14009-00

Unavailable

20

PULLER, CHAIN 2

BR8-25389-00-00

Unavailable

21

WASHER, PLAIN (434)

90201-14411-00

Unavailable

22

BOLT

90101-08006-00

Unavailable

23

NUT

90179-08029-00

Unavailable

24

COLLAR, WHEEL

BR8-25383-00-00

Unavailable

25

CHAIN

9Y582-48113-00

Unavailable

26

JOINT, CHAIN

94682-48001-00

Unavailable
