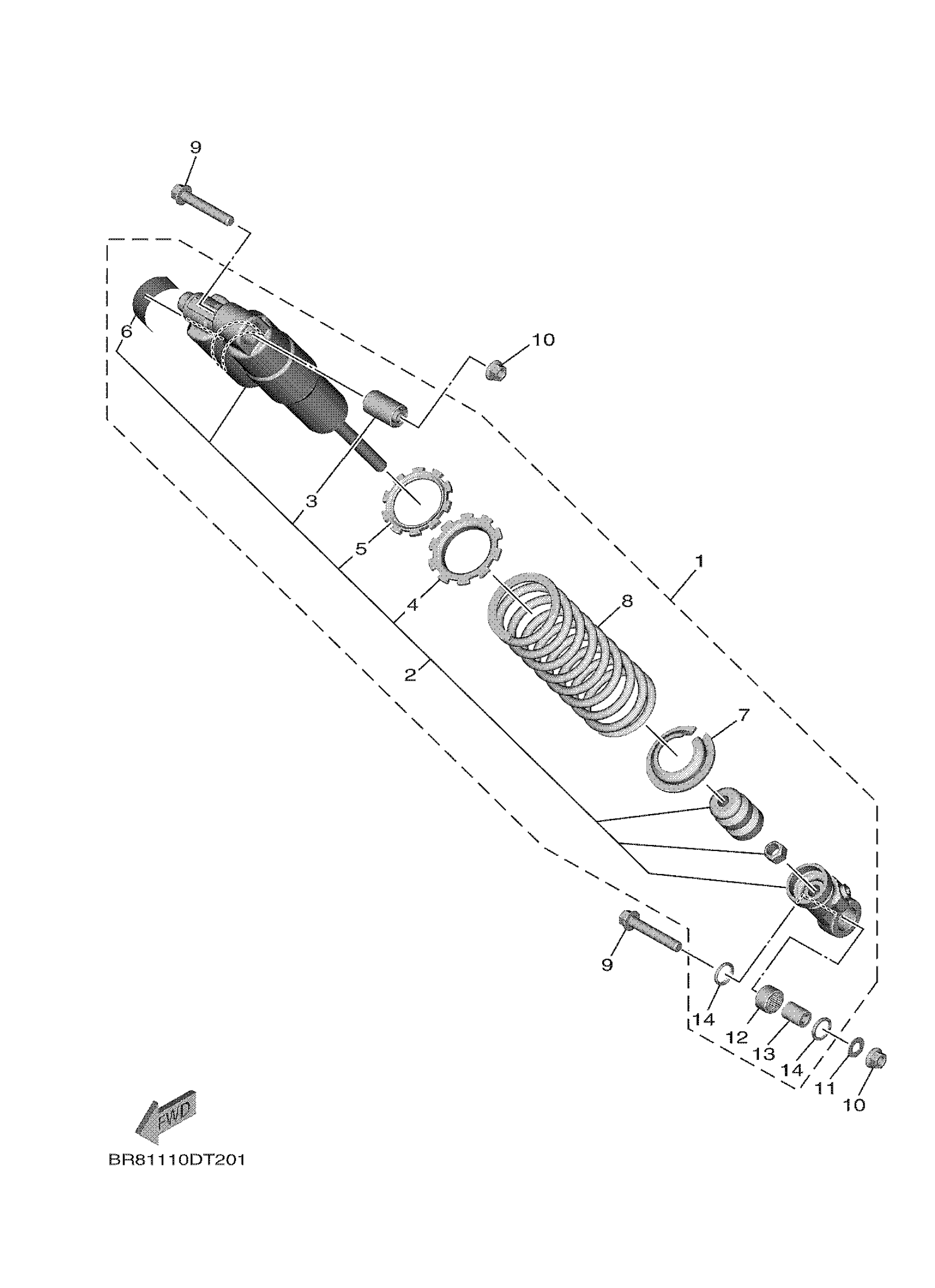

Yamaha YZ65L (YZ65) BR85 2020 REAR ARM SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

BR8-22200-01-00

$617.99

2

DAMPER SUB ASSY

BR8-22201-01-00

$559.99

3

BUSH, REAR SHOCK ABSORBER

4ES-22216-00-00

$37.99

4

GUIDE, SPRING 1

4ES-22214-00-00

Unavailable

5

NUT 1

4ES-22251-00-00

Unavailable

6

LABEL, WARNING

4AA-22259-80-00

$13.49

7

GUIDE, SPRING 1

BR8-22214-00-00

$24.99

8

SPRING

BR8-22212-00-00

$233.99

9

BOLT, FLANGE

90105-10390-00

$7.49

10

NUT

90179-10024-00

$10.49

11

WASHER, PLATE

90201-10045-00

$8.49

12

BEARING

5UN-22176-00-00

$32.99

13

BUSH

BR8-22184-00-00

$39.99

14

SEAL, DUST

5NY-22475-00-00

$12.99
