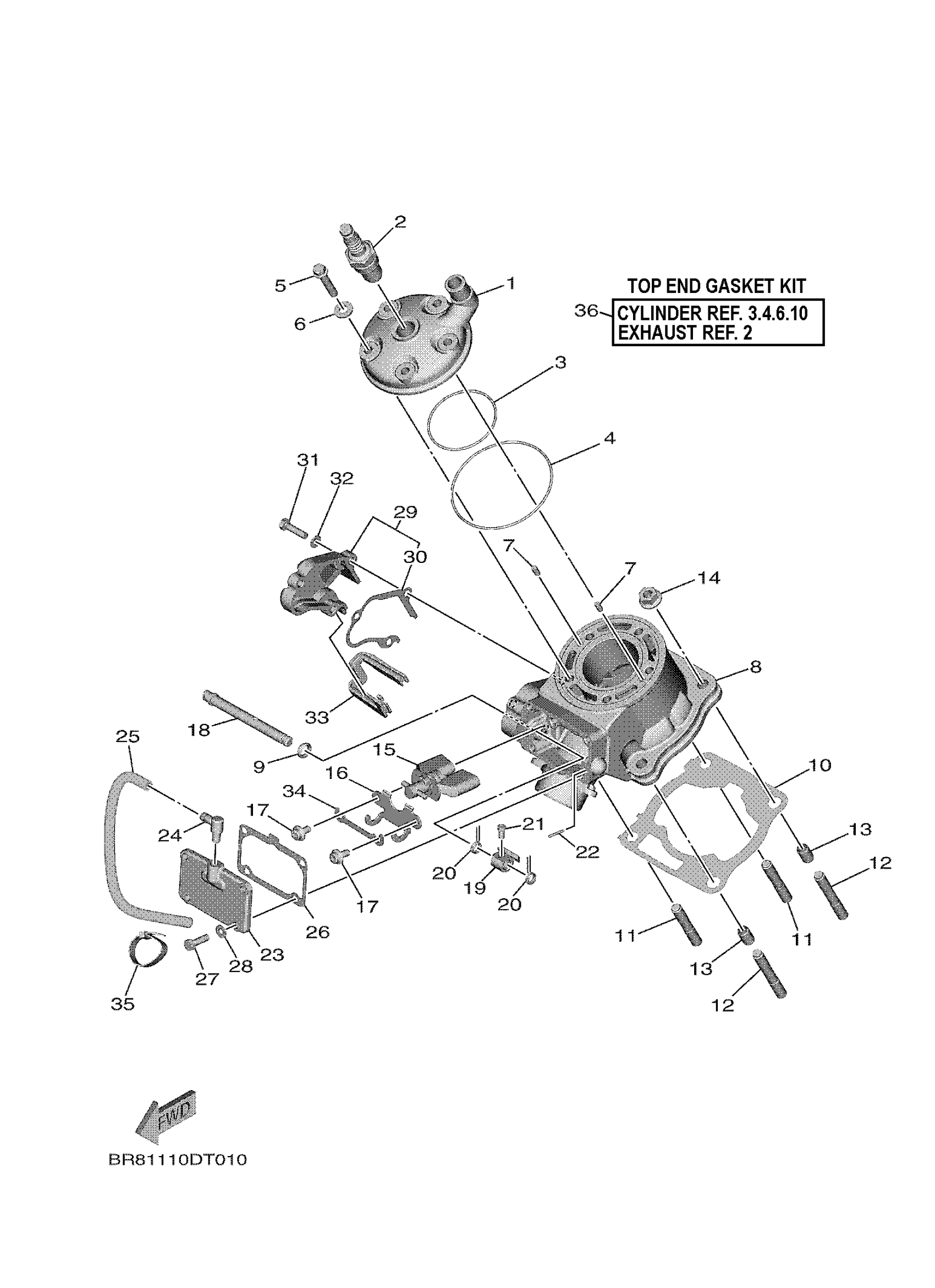

Yamaha YZ65L (YZ65) BR85 2020 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

BR8-11111-00-00

$196.59

2

PLUG, SPARK (NGK BR9ECM)

94702-00357-00

$14.44

3

O-RING(50M)

93210-50582-00

$3.22

4

O-RING(6U1)

93210-76MF8-00

$8.31

5

BOLT, FLANGE

90105-06195-00

$1.51

6

WASHER, PLATE (22F)

90201-066F0-00

$5.86

7

PIN, DOWEL (278)

93604-08071-00

$5.75

8

CYLINDER 1

BR8-11311-00-00

$601.68

9

OIL SEAL (8X12X3-371)

93104-08040-00

$11.41

10

GASKET, CYLINDER

BR8-11351-00-00

$5.80

11

BOLT, STUD

90116-08031-00

$7.77

12

BOLT, STUD

90116-08028-00

$6.34

13

PIN, DOWEL

99590-10114-00

$4.11

14

NUT

90179-08019-00

$4.87

15

VALVE ASSY

BR8-1131D-00-00

$216.29

16

HOLDER 3

5CU-1131U-10-00

Unavailable

17

BOLT

90109-05002-00

Unavailable

18

SHAFT 1

BR8-1131V-00-00

Unavailable

19

LEVER, LINK

4SS-11832-00-00

Unavailable

20

SPRING, TORSION

90508-155B8-00

Unavailable

21

BOLT

91312-04008-00

Unavailable

22

PIN, DOWEL

93602-16M10-00

$2.80

23

COVER

BR8-1131M-00-00

Unavailable

24

CONNECTOR, SUCTION PIPE

38W-13115-00-00

Unavailable

25

HOSE (L340)

90445-08684-00

Unavailable

26

GASKET

BR8-11354-00-00

Unavailable

27

BOLT(6A1)

97095-05016-00

Unavailable

28

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

HOUSING 1

BR8-11991-00-00

Unavailable

30

GASKET

BR8-11993-00-00

Unavailable

31

BOLT(3JK)

97027-05020-00

Unavailable

32

WASHER, PLAIN (646)

92990-05600-00

Unavailable

33

SEAL, HOUSING

BR8-11995-00-00

Unavailable

34

HOLDER 4

BR8-1131P-00-00

Unavailable

35

CLAMP

90464-25004-00

Unavailable

36

TOP END GASKET KIT

BR8-W0001-00-00

Unavailable
