Description

Price

1

DISK, REAR BRAKE 2

BR8-2582W-00-00

$86.99

2

SCREW, COUNTERSUNK

90151-06079-00

$3.23

3

CALIPER ASSY, REAR 2

BR8-2580W-00-00

Unavailable

4

PISTON ASSY, CALIPER

4ES-W0057-00-00

$102.99

5

CALIPER SEAL KIT

4ES-W0047-00-00

$19.99

6

SUPPORT, PAD

1UY-25919-51-00

$22.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT 2

BR8-25806-00-00

$60.99

9

SHIM, CALIPER

3GD-25827-00-00

Unavailable

10

PIN, PAD

3GD-25933-00-00

$28.99

11

BOOT, CALIPER

1UY-25917-51-00

$6.99

12

BOOT 2

1UY-25937-51-00

$14.49

13

DUST PLUG

3GD-25916-00-00

$7.99

14

SUPPORT BRACKET ASSY

4ES-25920-01-00

Unavailable

15

BOLT

90111-08029-00

$8.49

16

WASHER, PLATE

90201-08043-00

Unavailable

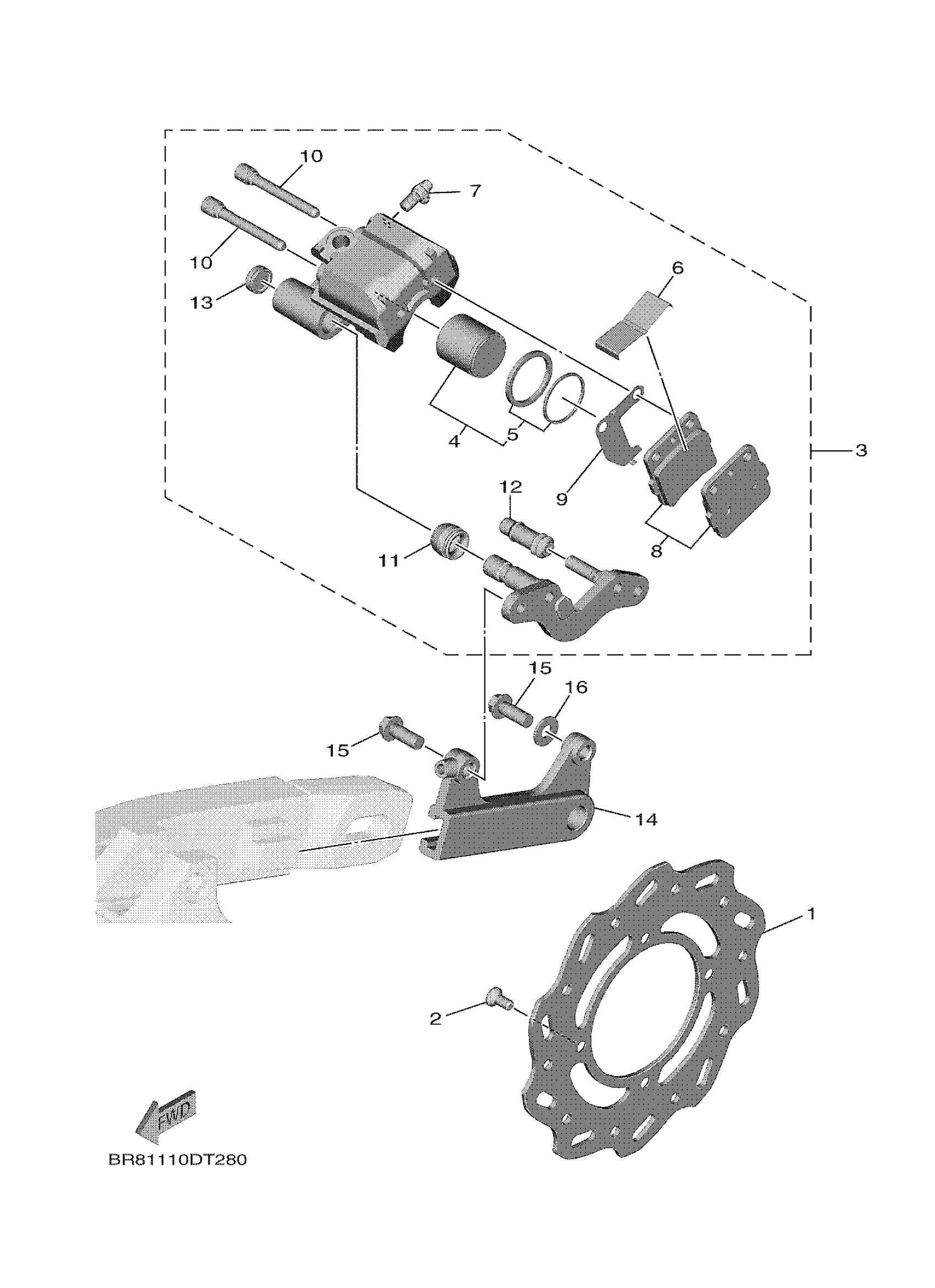

Yamaha YZ65J (YZ65) BR81 2018 REAR BRAKE CALIPER Diagram

DISK, REAR BRAKE 2

SCREW, COUNTERSUNK

CALIPER ASSY, REAR 2

PISTON ASSY, CALIPER

CALIPER SEAL KIT

SUPPORT, PAD

BLEED SCREW KIT

BRAKE PAD KIT 2

SHIM, CALIPER

PIN, PAD

BOOT, CALIPER

BOOT 2

DUST PLUG

SUPPORT BRACKET ASSY

BOLT

WASHER, PLATE
