Description

Price

1

REAR ARM COMP.

BR8-22110-00-00

$712.99

2

PLUG (31M)

90338-10150-00

$8.49

3

SHAFT, PIVOT

BR8-22141-00-00

$25.99

4

NUT, U

95612-12100-00

$5.60

5

WASHER, PLATE

90201-12032-00

$7.49

6

BUSH(39K)

90385-17042-00

$21.99

7

BEARING, CYLINDRICAL(39K)

93317-21746-00

$34.99

8

COLLAR(39K)

90387-127J8-00

$35.99

9

COLLAR(39K)

90387-127J7-00

$30.99

10

COLLAR(4ES)

90387-1200U-00

$17.99

11

OIL SEAL

93109-17071-00

$7.49

12

SEAL, GUARD

BR8-22151-00-00

$86.99

13

SCREW, 1

1C3-22969-90-00

$6.99

14

SUPPORT, CHAIN

BR8-22199-00-00

$55.99

15

COLLAR

90387-06207-00

$7.49

16

COLLAR

90387-09002-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95E32-08055-00

Unavailable

18

NUT, SELF-LOCKING

95602-08200-00

Unavailable

19

BOLT, FLANGE DEEP RECESS

95D02-06016-00

Unavailable

20

LABEL, TIRE

3RV-21668-A1-00

Unavailable

21

SWING ARM PIVOT BEARING KIT

1SN-W002C-00-00

Unavailable

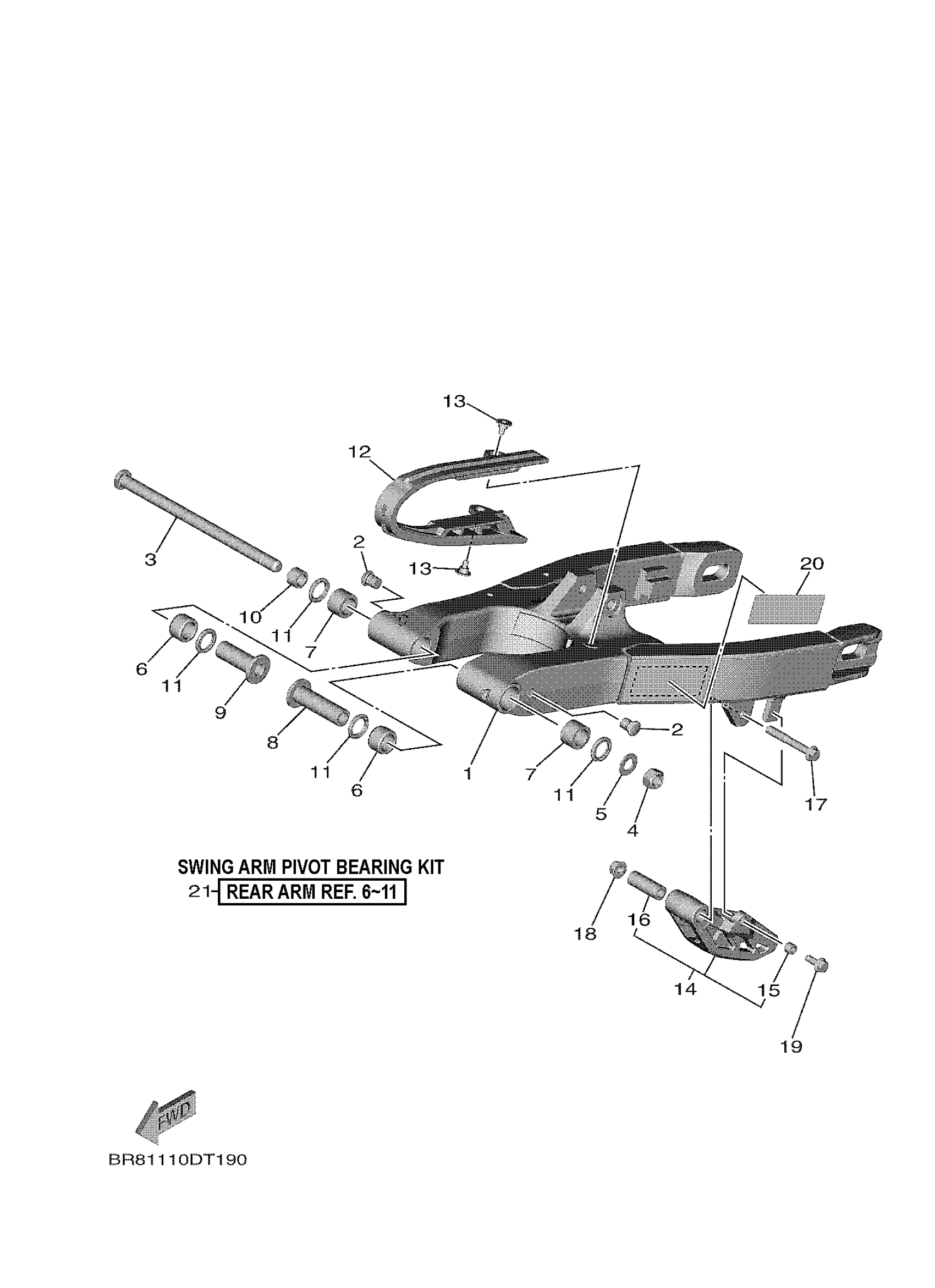

Yamaha YZ65J (YZ65) BR81 2018 REAR ARM Diagram

REAR ARM COMP.

PLUG (31M)

SHAFT, PIVOT

NUT, U

WASHER, PLATE

BUSH(39K)

BEARING, CYLINDRICAL(39K)

COLLAR(39K)

COLLAR(39K)

COLLAR(4ES)

OIL SEAL

SEAL, GUARD

SCREW, 1

SUPPORT, CHAIN

COLLAR

COLLAR

BOLT, FLANGE DEEP RECESS

NUT, SELF-LOCKING

BOLT, FLANGE DEEP RECESS

LABEL, TIRE

SWING ARM PIVOT BEARING KIT
