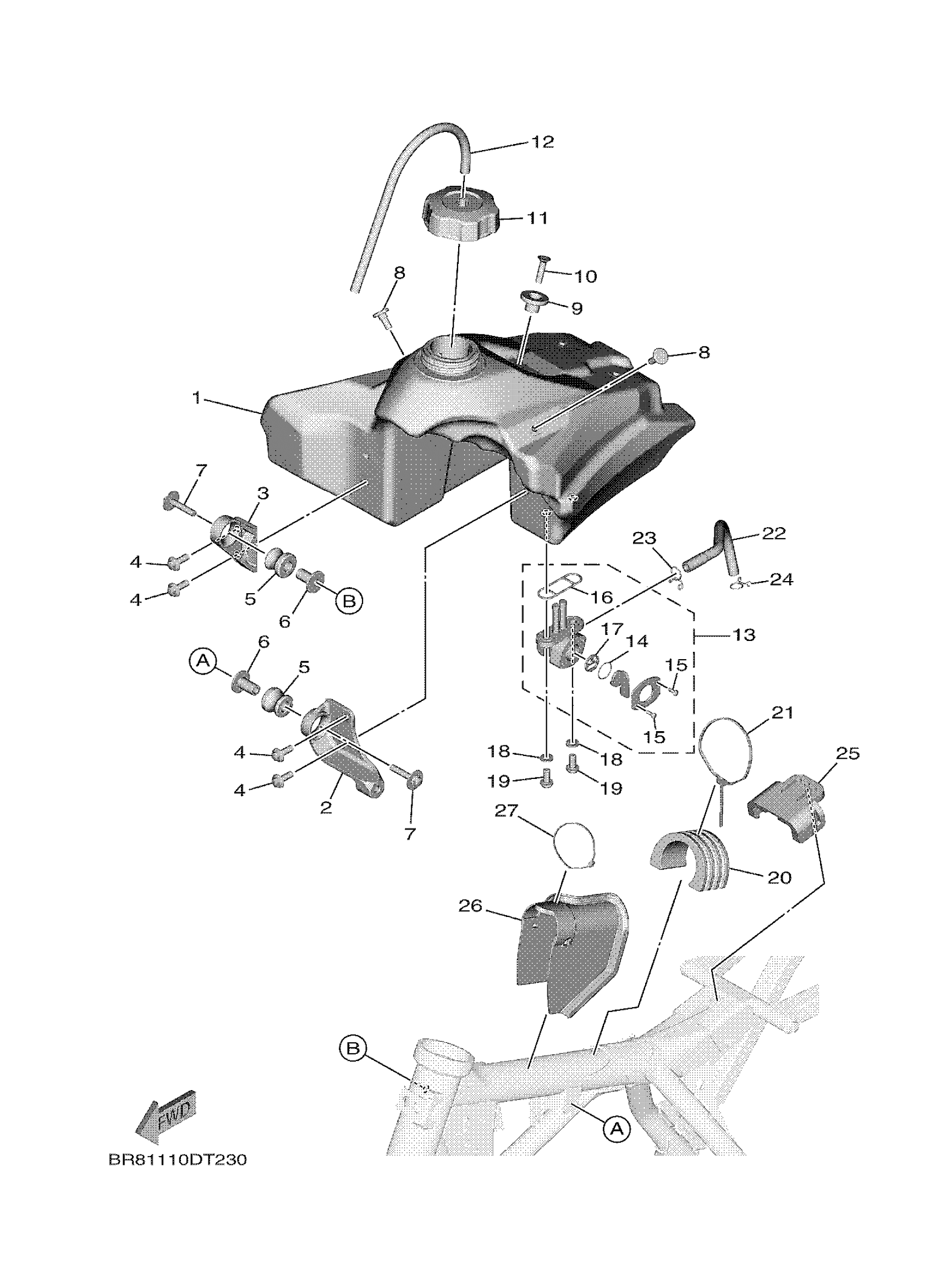

Yamaha YZ65J (YZ65) BR81 2018 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BR8-24110-10-00

Unavailable

2

STAY, FUEL TANK 1

BR8-24115-00-00

$36.99

3

STAY, FUEL TANK 2

BR8-24116-00-00

Unavailable

4

BOLT, FLANGE

90105-06170-00

$4.72

5

GROMMET(4AA)

90480-18549-00

$10.49

6

COLLAR

90387-06091-00

$8.49

7

BOLT, WITH WASHER

90119-06262-00

$8.49

8

BOLT

90109-06327-00

$1.38

9

BRACKET, SEAT

4EW-2412F-00-00

$14.49

10

SCREW, FLAT HEAD

98702-06025-00

$8.49

11

CAP ASSY

2FJ-24610-20-00

$68.99

12

HOSE (L280)

90445-09004-00

Unavailable

13

FUEL COCK ASSY 1

4DP-24500-10-00

$91.99

14

SEAL, COCK

3AJ-24534-10-00

$7.99

15

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

16

O-RING

4X8-24512-10-00

Unavailable

17

VALVE PACKING

3AC-24523-00-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

SCREW

90149-06108-00

Unavailable

20

DAMPER, LOCATING 2

5PA-24182-00-00

Unavailable

21

CLAMP

90464-65001-00

Unavailable

22

PIPE, FUEL 1

BR8-24311-00-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable

24

CLIP

90467-09002-00

Unavailable

25

DAMPER, LOCATING 1

5PA-24181-00-00

Unavailable

26

MOLE, FUEL TANK 1

BR8-2418B-00-00

Unavailable

27

CLAMP

90464-65001-00

Unavailable
