Description

Price

1

HUB, FRONT

4ES-25111-01-00

$175.99

2

SPACER, BEARING

BR8-25117-00-00

$26.99

3

BEARING(3WF)

93306-20119-00

$33.99

4

OIL SEAL (22X32X5-818)

93102-22087-00

$12.49

5

RIM (1.60-14)

94416-14007-00

$369.99

6

SPOKE SET, FRONT

BR8-25104-00-00

$47.99

7

GROMMET (397)

90480-10068-00

$8.49

8

FRONT TIRE SET

BR8-25108-01-00

Unavailable

9

. TIRE (60/100-14 M7311)

94106-14008-00

Unavailable

10

. TUBE (60/100-14 TR-4)

94206-14003-00

Unavailable

11

. BAND, RIM (25-14)

94306-14035-00

Unavailable

12

BOLT, FLANGE

90105-12120-00

$17.99

13

NUT, SELF-LOCKING

90185-12010-00

$8.49

14

WASHER, PLATE

90201-12055-00

$8.49

15

COLLAR, WHEEL

BR8-25183-00-00

$15.99

16

WRENCH, HEXAGON

1RH-28166-00-00

Unavailable

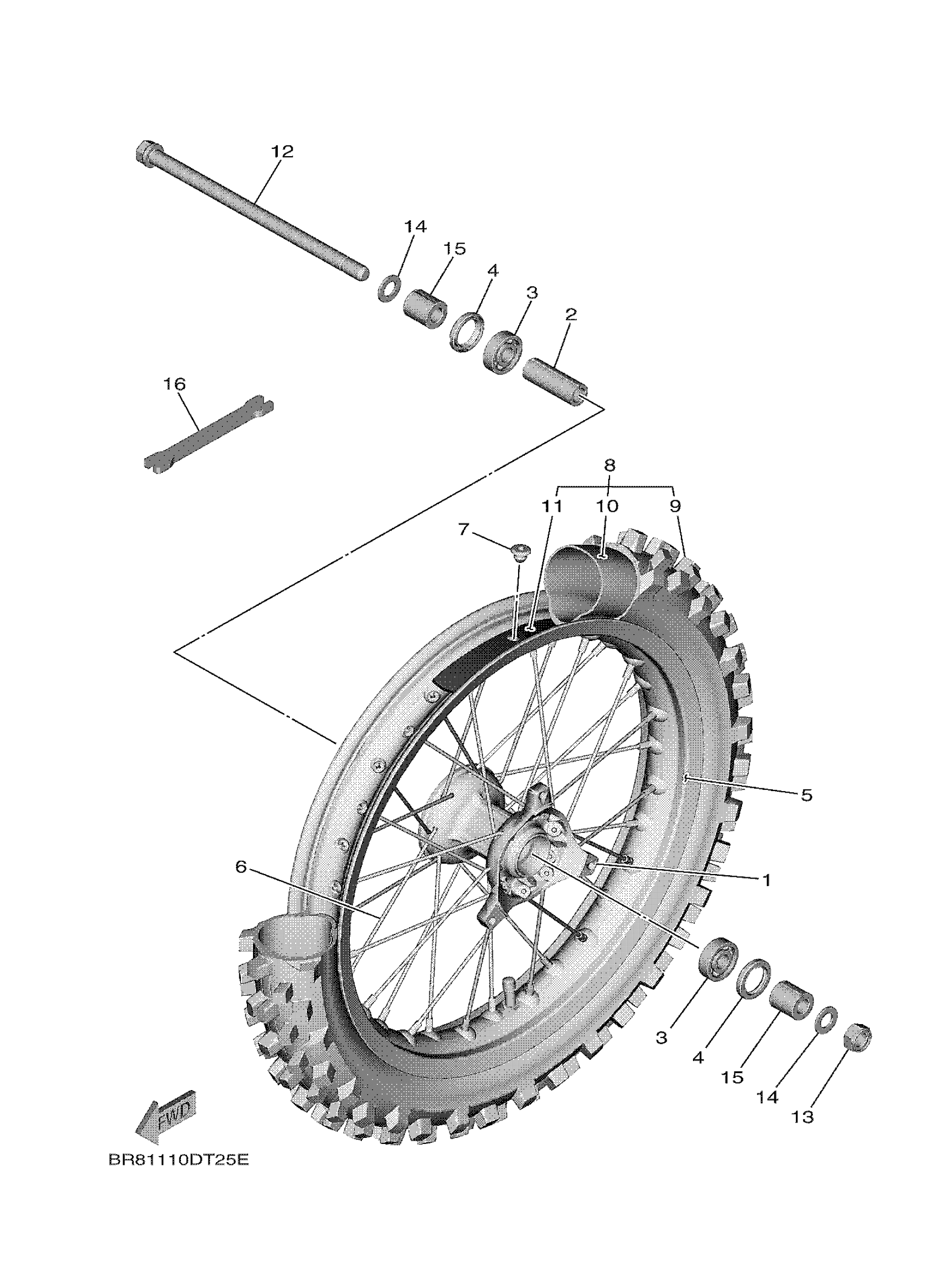

Yamaha YZ65J (YZ65) BR81 2018 FRONT WHEEL Diagram

HUB, FRONT

SPACER, BEARING

BEARING(3WF)

OIL SEAL (22X32X5-818)

RIM (1.60-14)

SPOKE SET, FRONT

GROMMET (397)

FRONT TIRE SET

. TIRE (60/100-14 M7311)

. TUBE (60/100-14 TR-4)

. BAND, RIM (25-14)

BOLT, FLANGE

NUT, SELF-LOCKING

WASHER, PLATE

COLLAR, WHEEL

WRENCH, HEXAGON
