FRONT FORK

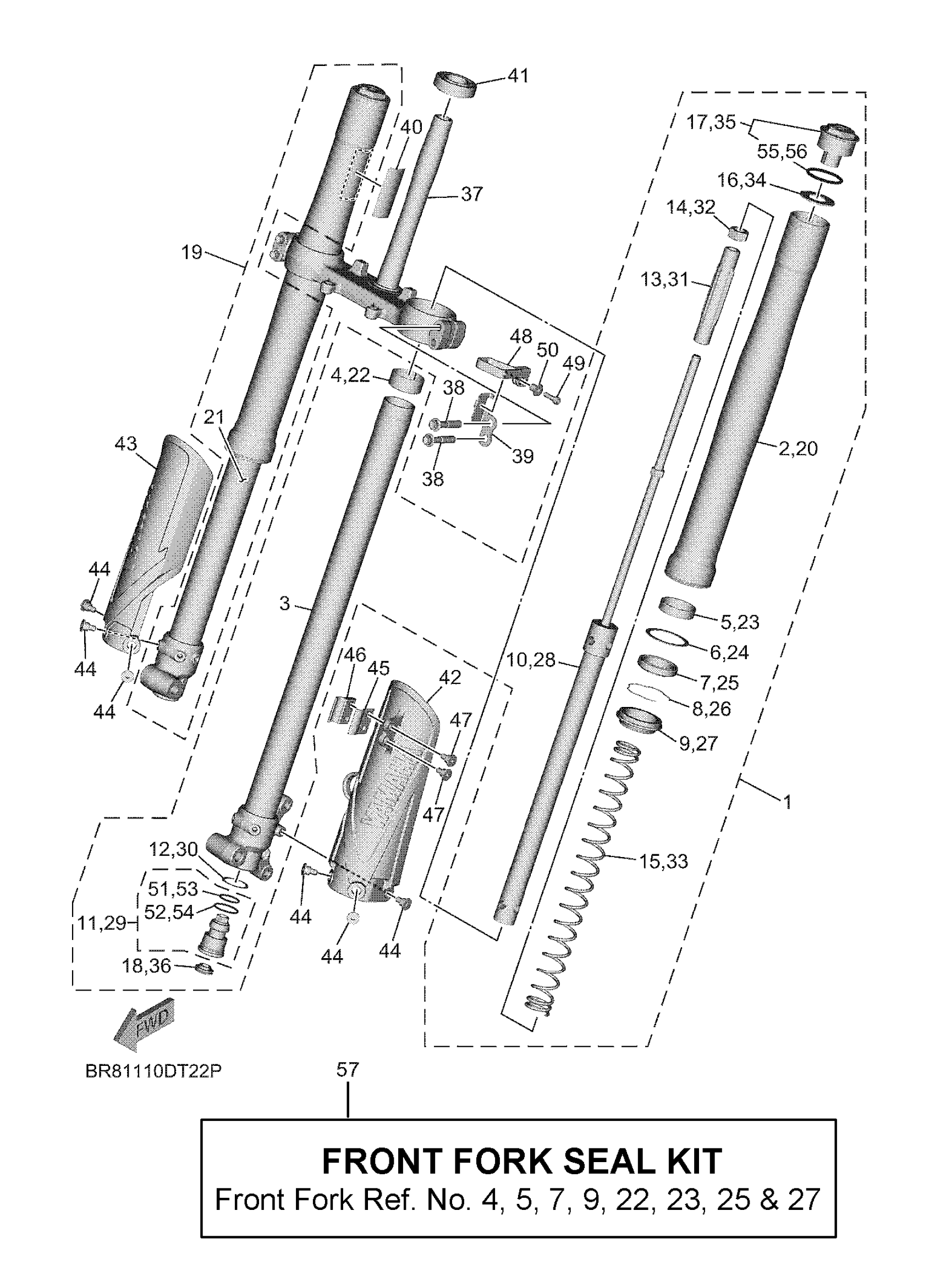

Yamaha YZ65J (YZ65) BR81 2018 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
BR8-23102-00-00
Unavailable
2
TUBE, OUTER 2
BR8-23136-00-00
Unavailable
3
INNER TUBE COMP.2
BR8-23120-00-00
Unavailable
10
CYLINDER COMP., FRONT FORK
BR8-23170-00-00
Unavailable
11
VALVE COMP.
BR8-2316A-00-00
Unavailable
13
SEAT, SPRING UPPER
BR8-23142-00-00
Unavailable
16
WASHER, SPRING UPPER
5PA-23149-00-00
Unavailable
17
BOLT, CAP
BR8-23111-00-00
Unavailable
18
PLUG
3JD-2312G-L0-00
Unavailable
19
FRONT FORK ASSY (R.H)
BR8-23103-00-00
Unavailable
20
TUBE, OUTER 2
BR8-23136-00-00
Unavailable
21
INNER TUBE COMP.1
BR8-23110-00-00
Unavailable
28
CYLINDER COMP., FRONT FORK
BR8-23170-00-00
Unavailable
29
VALVE COMP.
BR8-2316A-00-00
Unavailable
31
SEAT, SPRING UPPER
BR8-23142-00-00
Unavailable
34
WASHER, SPRING UPPER
5PA-23149-00-00
Unavailable
35
BOLT, CAP
BR8-23111-00-00
Unavailable
36
PLUG
3JD-2312G-L0-00
Unavailable
37
UNDER BRACKET COMP.
BR8-23340-00-00
Unavailable
38
BOLT 1
5PA-23346-00-00
Unavailable
39
GUIDE, CABLE
BR8-2331E-00-00
Unavailable
40
SEAL
BR8-21268-00-00
Unavailable
41
BEARING(4ES)
93332-00079-00
Unavailable
42
PROTECTER COMP., 1
BR8-2314H-00-00
Unavailable
43
PROTECTER COMP., 2
BR8-2314J-00-00
Unavailable
44
BOLT
90109-06232-00
Unavailable
45
CLAMP
17D-23466-00-00
Unavailable
46
CLAMP
17D-23467-00-00
Unavailable
47
BOLT
90109-06232-00
Unavailable
48
GUIDE, CABLE
5TJ-23389-80-00
Unavailable
49
BOLT, SOCKET
91317-05016-00
Unavailable
50
COLLAR
90387-05065-00
Unavailable
51
O-RING
4DA-23147-L1-00
Unavailable
52
GASKET
276-23114-02-00
Unavailable
53
O-RING
4DA-23147-L1-00
Unavailable
54
GASKET
276-23114-02-00
Unavailable
55
O-RING
4V4-23188-L1-00
Unavailable
56
O-RING
4V4-23188-L1-00
Unavailable
57
FORK SEAL KIT (TWO FORKS)
4ES-W003B-00-00
Unavailable
