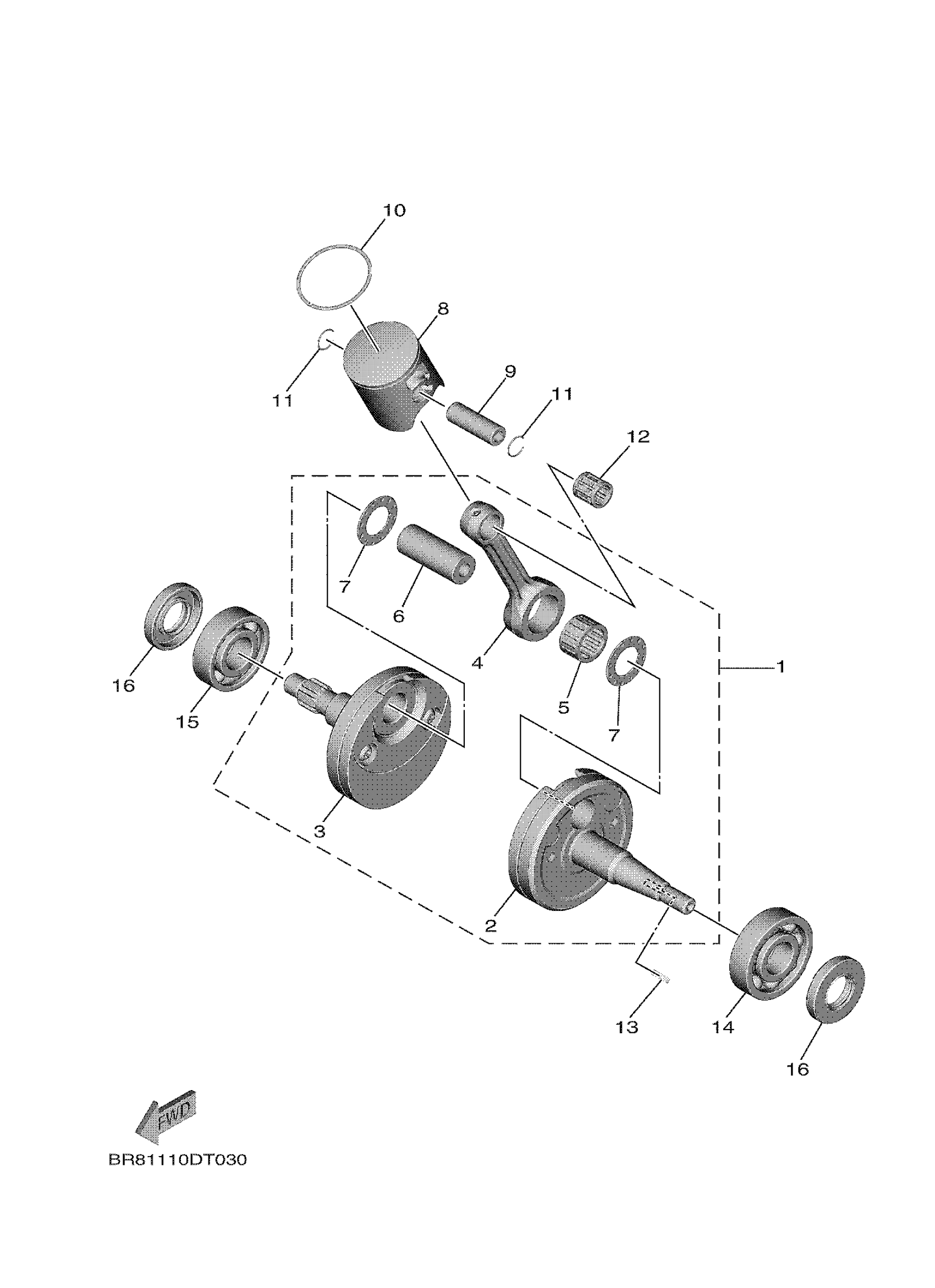

Yamaha YZ65J (YZ65) BR81 2018 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

BR8-11400-00-00

$338.99

2

CRANKSHAFT

BR8-11410-00-00

$130.99

3

CRANKSHAFT

BR8-11420-00-00

$130.99

4

ROD, CONNECTING

BR8-11651-00-00

Unavailable

5

BEARING, CYLINDRICAL(43K)

93310-418M6-00

Unavailable

6

PIN, CRANK 1

BR8-11681-00-00

Unavailable

7

WASHER 132116850000

90209-18112-00

$10.49

8

PISTON (STD)

BR8-11631-01-A0

$76.99

8

PISTON (STD)

BR8-11631-01-B0

$76.99

8

PISTON (STD)

BR8-11631-01-C0

$76.99

8

PISTON (STD)

BR8-11631-01-D0

$76.99

9

PIN, PISTON

BR8-11633-00-00

$9.49

10

RING, PISTON

BR8-11611-01-00

$12.49

11

CIRCLIP(1NM)

93450-13130-00

$8.49

12

BEARING

93310-21283-00

$14.99

13

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

14

BEARING(4ED)

93306-20468-00

Unavailable

15

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

16

OIL SEAL

93102-20485-00

Unavailable
