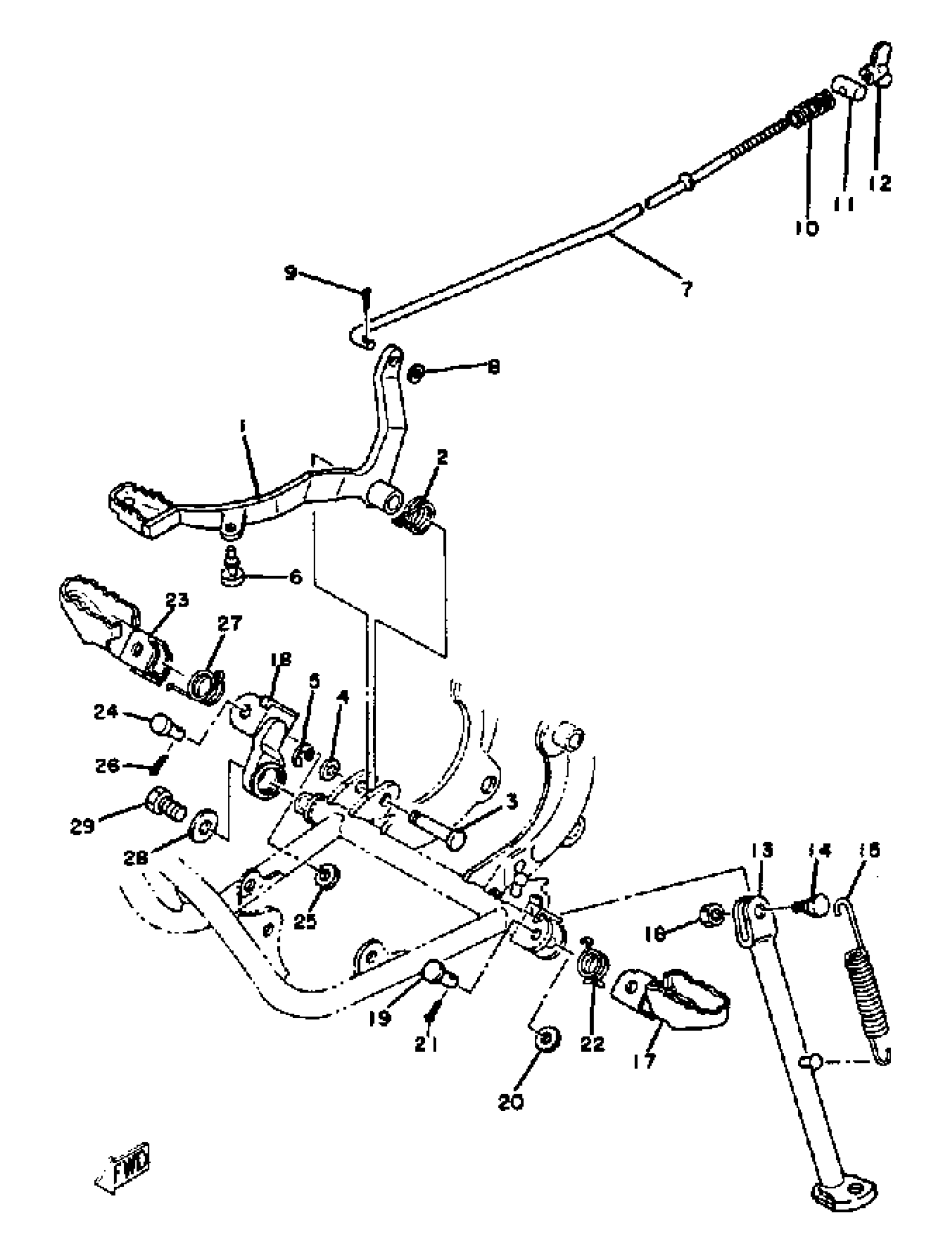

Yamaha YZ60H (YZ60H_J_K) 1981 STAND - FOOTREST - YZ60H - J - K Diagram

#

Description
Price

1

PEDAL, BRAKE

4V0-27211-00-00

Unavailable

2

SPRING, TORSION

90508-29466-00

Unavailable

3

PIN, SPEC''L SHAPE

90249-10138-00

Unavailable

4

WASHER, PLATE

92990-10600-00

Unavailable

5

CIRCLIP (137)

93430-08007-00

$8.49

5

CIRCLIP(2R6)

99001-08600-00

$8.49

6

GROMMET

90480-15215-00

Unavailable

7

ROD, BRAKE

4V0-27231-00-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

PIN, COTTER

91490-20025-00

$1.99

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

PIN 1562723700

90249-12008-00

$8.49

12

NUT (25K)

90179-06411-00

$8.49

13

STAND, SIDE

4V0-27311-00-R4

Unavailable

14

BOLT 1092537300

90109-08063-00

$10.49

14

BOLT 1092537300

90109-08063-00

$10.49

15

SPRING, TENSION (1L9)

90506-26270-00

Unavailable

16

. NUT

95380-08700-00

Unavailable

17

FOOTREST 1

22W-27411-01-90

Unavailable

18

BRACKET, FOOTREST 2

4V0-27422-00-33

Unavailable

19

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

22

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

23

FOOTREST 2

22W-27421-01-90

Unavailable

24

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

24

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

Unavailable

26

PIN, COTTER

91490-25020-00

Unavailable

27

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

28

WASHER, PLATE

90201-10144-00

Unavailable

29

BOLT,HEXAGON

97017-10016-00

Unavailable
