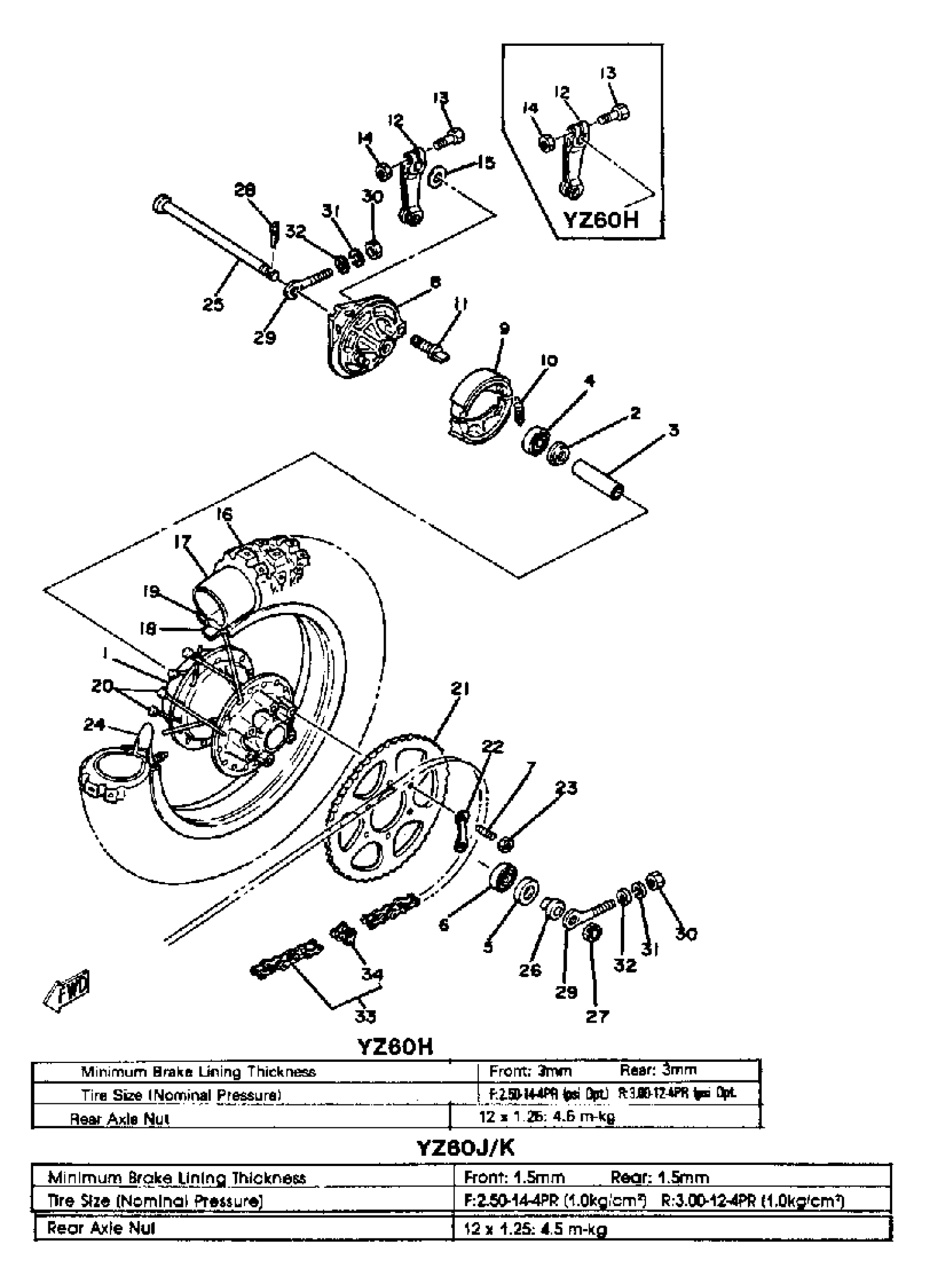

Yamaha YZ60H (YZ60H_J_K) 1981 REAR WHEEL - YZ60H - J - K Diagram

#

Description
Price

1

HUB, REAR

(3R0-25311-11-98)

Unavailable

2

FLANGE, SPACER

109-25315-00-00

$7.99

3

SPACER (1U1)

90560-12170-00

$17.99

4

BRG.

93306-30101-00

$36.99

5

OIL SEAL(3TU)

93106-20033-00

$13.49

6

BEARING

93306-30102-00

$39.99

7

.. BOLT, STUD

90116-08247-00

Unavailable

8

PLATE, BRAKE SHOE

3R0-25321-00-98

Unavailable

9

BRAKESHOE SET-2PCS

451-W2535-00-00

Unavailable

10

SPRING TENSION 451251330000

90506-14081-00

$8.49

11

CAMSHAFT

4N0-25151-00-00

Unavailable

12

LEVER, CAMSHAFT

3R0-25355-11-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER PLATE 164185720000

90201-12166-00

$9.49

16

TIRE

94130-121A7-00

Unavailable

17

TUBE (17J)

94230-12208-00

Unavailable

18

BAND, RIM (3R0)

94330-12100-00

Unavailable

19

RIM (1.60-12)

94416-12002-00

Unavailable

20

SPOKE SET, REAR

4V0-25304-00-00

Unavailable

21

SPROCKET, DRIVN 40T

4V0-25440-12-33

Unavailable

21

SPROCKET, DRVN42T

4V0-25442-10-00

Unavailable

21

SPROCKET, DRIVN 44T

4V0-25444-10-33

Unavailable

22

WASHER, LOCK

22W-25412-00-00

Unavailable

23

NUT, HEXAGON (509)

90170-08158-00

Unavailable

24

SPACER, BEAD

5X2-25394-00-00

Unavailable

25

AXLE, WHEEL

367-25381-01-00

Unavailable

26

COLLAR (40E)

90387-127E0-00

Unavailable

27

NUT CASTLE(481)

90171-12005-00

Unavailable

28

PIN, COTTER

91490-30030-00

Unavailable

29

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

CHAIN, DRIVE

94580-52098-00

Unavailable

34

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
