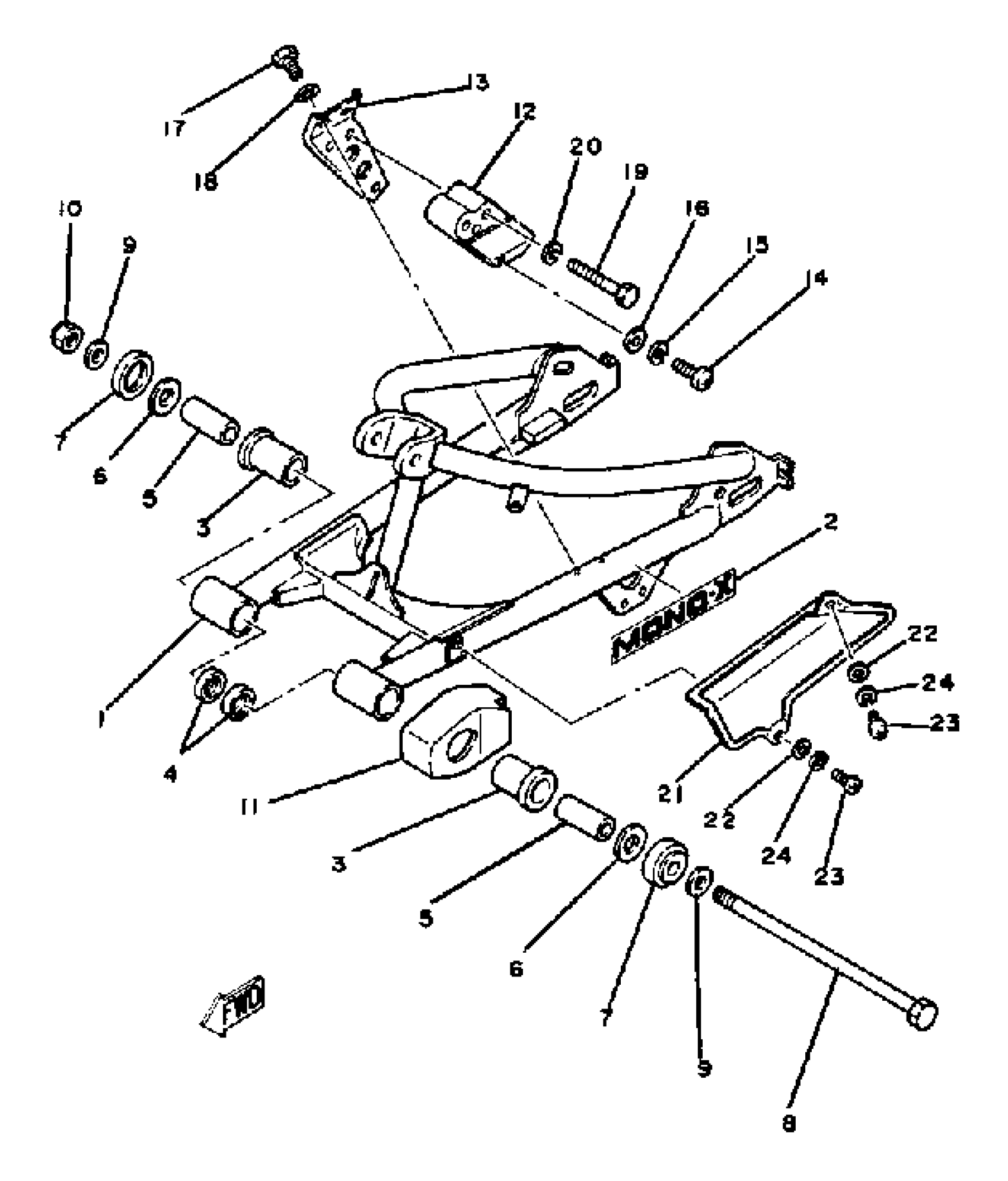

Yamaha YZ60H (YZ60H_J_K) 1981 REAR ARM - YZ60H - J - K Diagram

#

Description
Price

1

REAR ARM

4V0-22110-02-35

Unavailable

2

REFLECTOR

4V0-2218A-00-00

Unavailable

3

BUSH

90386-18099-00

$12.59

4

OIL SEAL (2J5)

93109-18020-00

$10.43

5

BUSHING, REAR ARM INNER

2J5-22124-00-00

$42.11

6

SHIM

401-22127-00-00

$6.17

6

SHIM

401-22127-00-00

$6.17

7

COVER, THRUST 1

401-22128-01-00

$23.80

8

SHAFT, PIVOT

4V0-22141-00-00

Unavailable

9

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

9

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

10

SEAL, GUARD

4V0-22151-00-00

Unavailable

11

SEAL, GUARD

4V0-22151-00-00

Unavailable

12

SUPPORT, CHAIN

4V0-22199-00-00

Unavailable

13

ARM, TENSIONER

4V0-22179-00-00

Unavailable

14

SCREW PAN HEAD

98580-06020-00

Unavailable

15

WASHER, SPRING

92995-06100-00

$2.95

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

BOLT, HEXAGON

97013-06045-00

Unavailable

20

WASHER, SPRING

92995-06100-00

$2.95

21

CASE, CHAIN

3R0-22311-00-00

Unavailable

22

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

23

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
