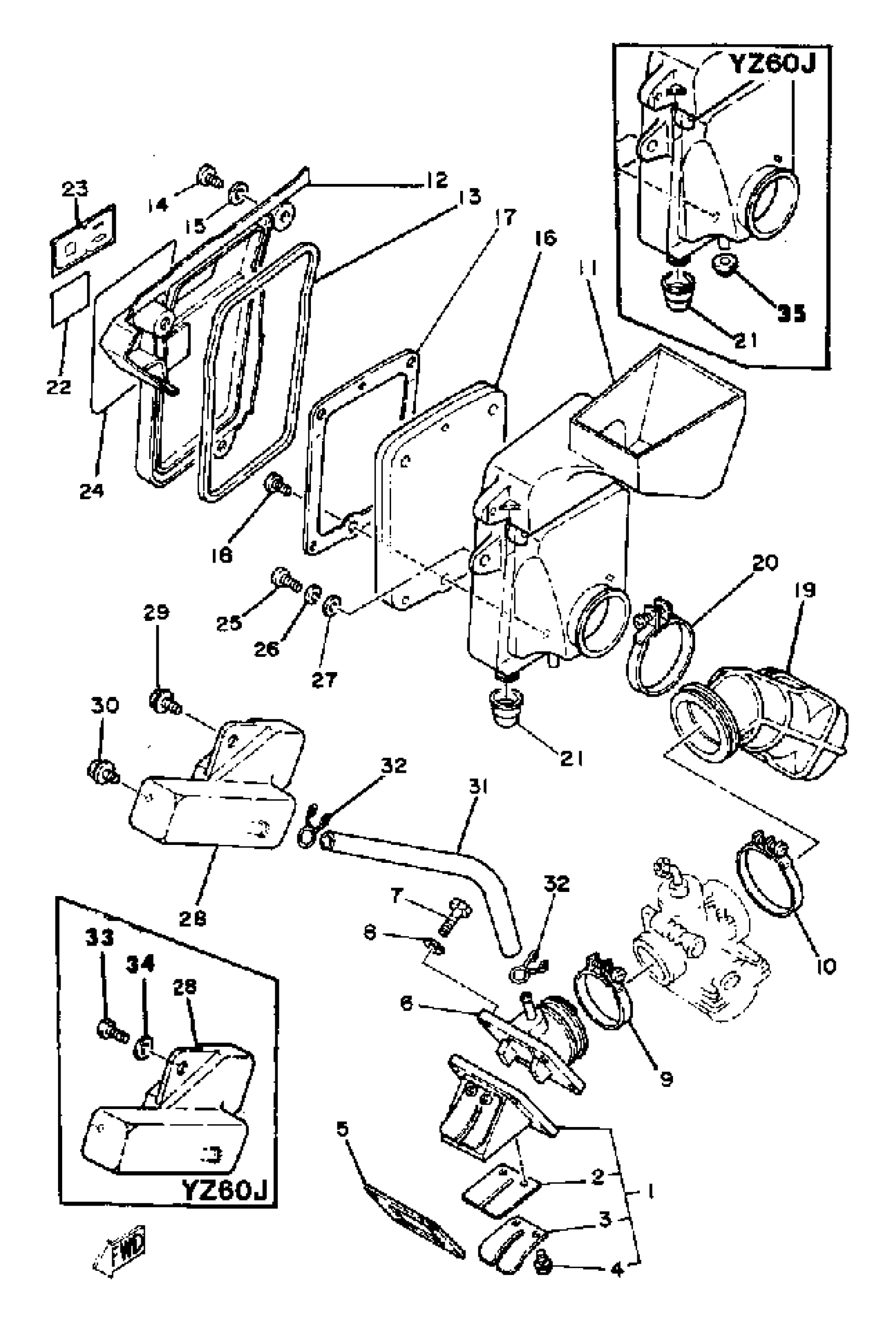

Yamaha YZ60H (YZ60H_J_K) 1981 INTAKE - YZ60J - K Diagram

#

Description
Price

1

REED VALVE ASSY

345-13610-20-00

$215.32

2

REED, VALVE

345-13613-70-00

$58.53

3

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

5

GASKET, VALVE SEAT

87A-13621-00-00

$7.43

6

JOINT, CARBURETOR

5X1-13565-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

CLAMP, HOSE (5H0)

90460-43179-00

$15.59

10

CLAMP HOSE 304144550000

90460-51059-00

$13.70

11

CASE, AIR CLEANER 1

(5X1-14411-00-00)

Unavailable

12

CAP, CLEANER CASE 1

(5X1-14412-00-00)

Unavailable

13

SEAL

50M-14462-01-00

$8.99

14

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

15

WASHER, PLATE

90201-06M08-00

$2.16

16

ELEMENT, AIR CLNR

5X1-14451-00-00

Unavailable

17

PLATE, ELEMENT FTNG

5X1-14468-00-00

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

19

JOINT, AIR CLNR 1

5X1-14453-00-00

Unavailable

20

CLAMP, HOSE

(90460-58807-00)

Unavailable

21

SEAL

(5X1-14457-00-00)

Unavailable

22

EMBLEM

4V3-1441K-00-00

Unavailable

23

EMBLEM 1

5X1-21781-00-00

Unavailable

24

EMBLEM

5X1-1441K-00-00

Unavailable

25

SCREW, PAN

98507-06014-00

Unavailable

26

WASHER, SPRING

92995-06100-00

$2.95

27

WASHER, PLATE

90201-06M08-00

$2.16

28

CHAMBER, AIR

5X1-13581-00-00

Unavailable

29

BOLT, WITH WASHER

90119-06242-00

Unavailable

30

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

31

HOSE

90445-13603-00

Unavailable

31

CLIP(6M6)

90467-13M13-00

$6.82

32

CLIP(MG5)

90467-14117-00

Unavailable

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

34

WASHER, PLATE

90201-06M08-00

$2.16

35

GROMMET

90480-10190-00

Unavailable
