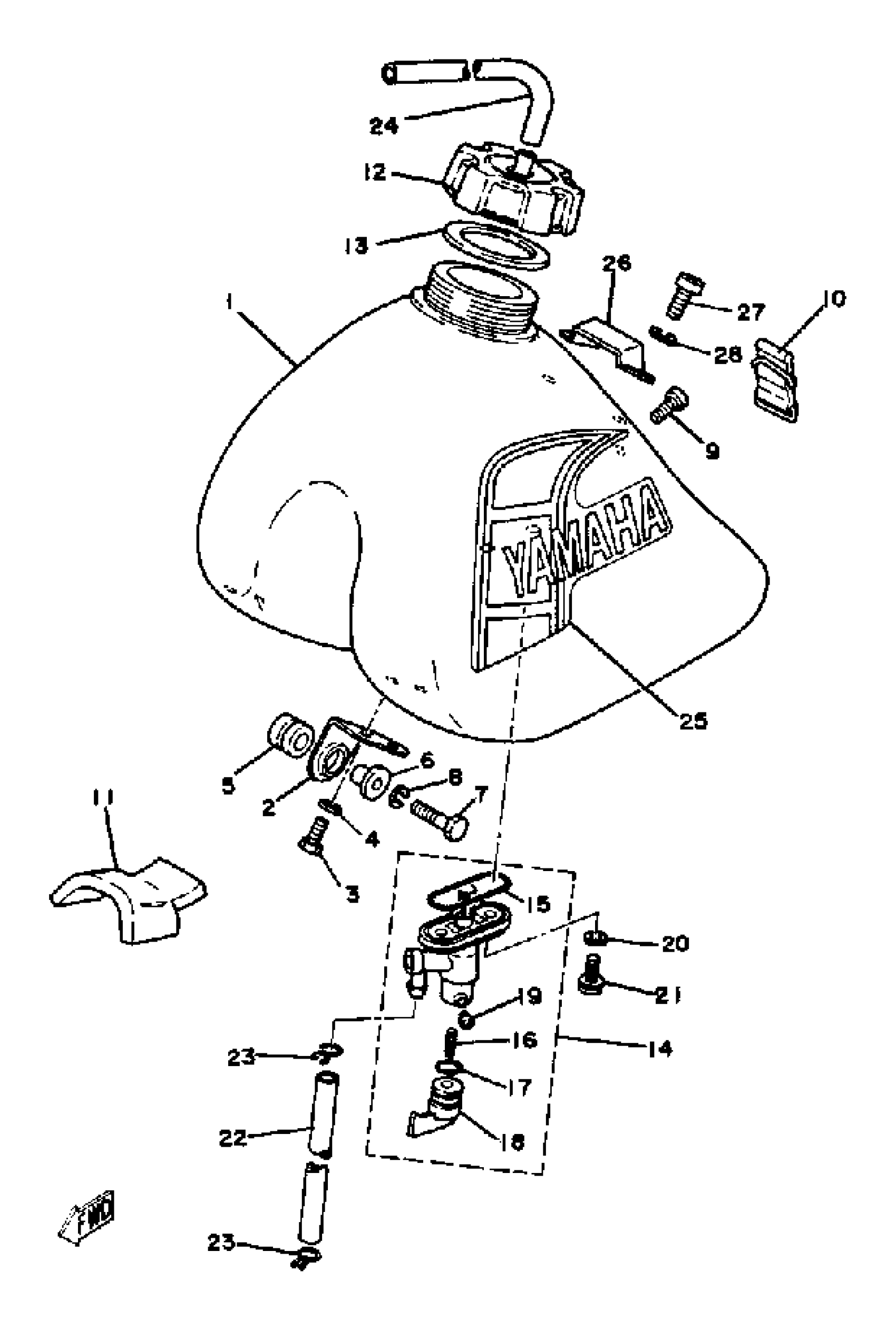

Yamaha YZ60H (YZ60H_J_K) 1981 FUEL TANK - YZ60J - K Diagram

#

Description
Price

1

FUEL TANK

5X1-24110-00-00

Unavailable

2

HOLDER, DAMPER

3R0-24144-00-00

Unavailable

3

BOLT(3JP)

97017-06010-00

$3.76

4

WASHER, SPRING

92995-06100-00

Unavailable

5

GROMMET 839774310000

90480-14023-00

$7.49

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SCREW, BIND(J39)

98980-06014-00

$9.49

10

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

11

DAMPER, LOCATING 1

(5X1-24181-00-00)

Unavailable

12

BODY, CAP

5X7-24611-01-00

Unavailable

13

PACKING, CAP

5X7-24612-00-00

Unavailable

14

FUEL COCK ASSY

2K5-24500-00-00

$86.99

15

GASKET, BODY

214-24512-00-00

$30.99

16

. SPRING

1A0-24529-01-00

Unavailable

17

O-RING

1A0-24512-00-00

Unavailable

18

. LEVER, COCK

1A0-24524-01-00

Unavailable

19

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

20

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

HOSE (L198)

90445-11293-00

Unavailable

23

CLIP

90467-100A1-00

Unavailable

24

HOSE (L420)

90445-092K1-00

Unavailable

25

GRAPHIC SET

(5X1-24250-21-00)

Unavailable

25

GRAPHIC SET

(5X7-24240-09-00)

Unavailable

26

BRACKET, SEAT

5X7-2412F-00-00

Unavailable

27

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable
