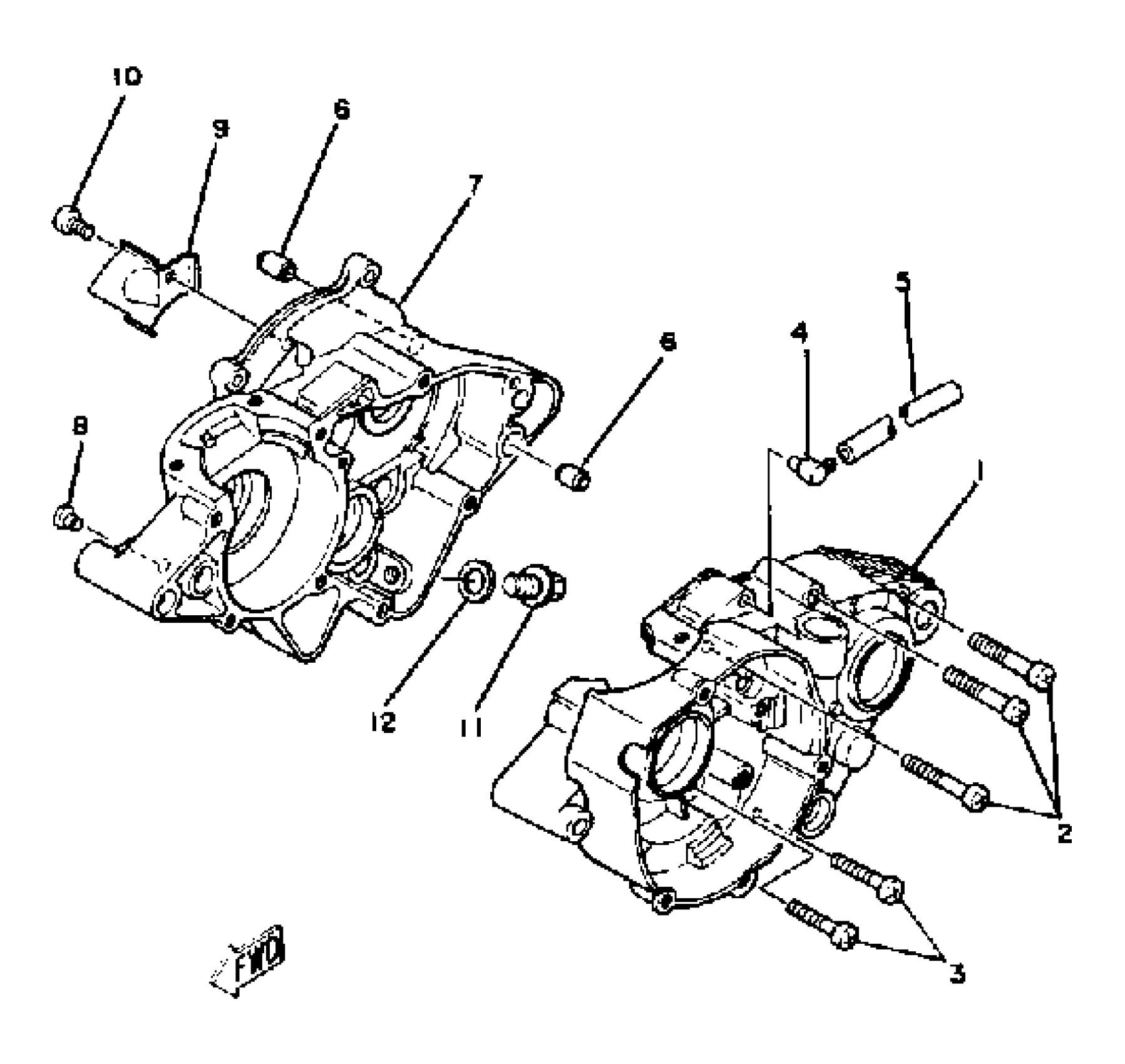

Yamaha YZ60H (YZ60H_J_K) 1981 CRANKCASE-YZ60H - J - K Diagram

#

Description
Price

1

CRANKCASE 1

4V0-15111-03-00

Unavailable

1

CRANKCASE 1

4V0-15111-03-00

Unavailable

1

BEARING(4ED)

93306-20468-00

$36.41

1

CRANKCASE 1

99999-01375-00

Unavailable

2

SCREW, PAN

98507-06045-00

$2.46

3

SCREW, PAN

98507-06035-00

$5.76

4

CONNECTOR, SUCTION PIPE

353-13115-01-00

$4.90

5

HOSE (L340)

90445-08684-00

$3.14

6

PIN, DOWEL

99530-12016-00

$3.85

7

CRANKCASE 2

4V0-15121-00-00

Unavailable

8

PLUG (17J)

90338-07124-00

$7.97

9

PLATE

4V0-15113-00-00

Unavailable

10

SCREW, PAN

98517-06012-00

$2.93

10

SCREW PAN HEAD

98580-06010-00

$5.75

10

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

11

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

12

GASKET (3JD1)

90430-12207-00

Unavailable
