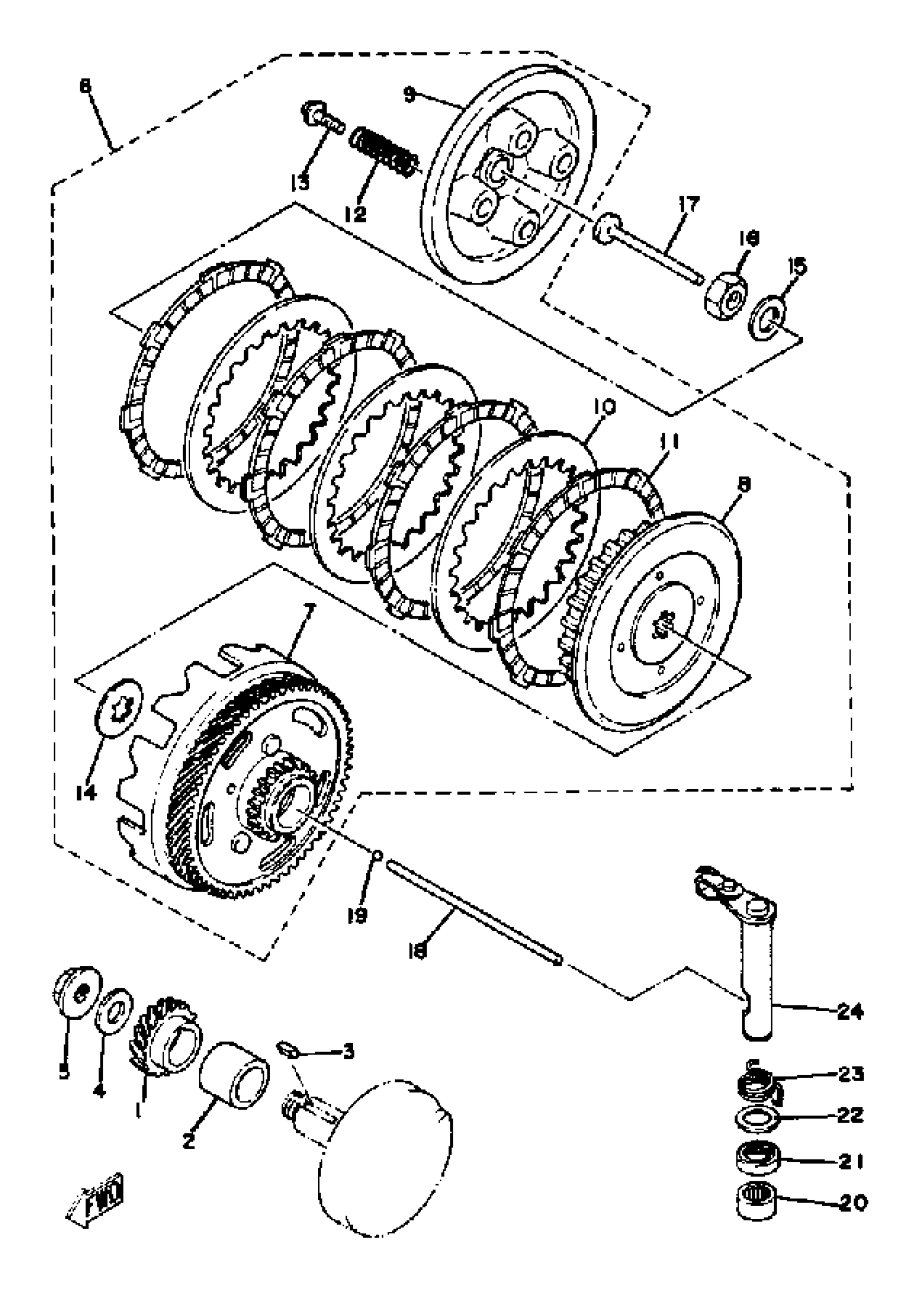

Yamaha YZ60H (YZ60H_J_K) 1981 CLUTCH-YZ60H - J - K Diagram

#

Description
Price

1

GEAR, PRI DRIVE

4V0-16111-00-00

Unavailable

2

COLLAR, DISTANCE 2761613600

90387-20175-00

Unavailable

3

KEY, STRAIGHT (3L5)

90282-05034-00

$9.49

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

5

NUT (4V2)

90179-12335-00

Unavailable

6

CLUTCH ASSEMBLY

(4V0-16300-00-00)

Unavailable

7

PRI DRVN GEAR

(4V0-16150-00-00)

Unavailable

7

. PRI DRVN GEAR

4V0-16150-01-00

Unavailable

8

. BOSS, CLUTCH

3R1-16371-00-00

Unavailable

9

. PLATE, PRESSURE 1

353-16351-00-00

Unavailable

10

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

11

PLATE, FRICTION

3XP-16321-00-00

$19.99

12

SPRING, COMPRESSION(58T)

90501-204A0-00

$8.49

13

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

14

PLATE, THRUST 1

4V0-16154-00-00

$31.99

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

16

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

17

ROD,PUSH (1)

137-16356-00-00

Unavailable

18

ROD, PUSH 2

4V0-16357-00-00

Unavailable

19

BALL

93503-16003-00

Unavailable

20

BEARING, CYLINDRICAL (3R3)

93315-21429-00

Unavailable

21

OIL SEAL (2K8)

93109-14021-00

Unavailable

22

WASHER, PLAIN (434)

90201-14411-00

Unavailable

23

SPRING, TORSION

90508-18463-00

Unavailable

24

PUSH LEVER ASSEMBLY

4V0-16380-00-00

Unavailable
