Partiron

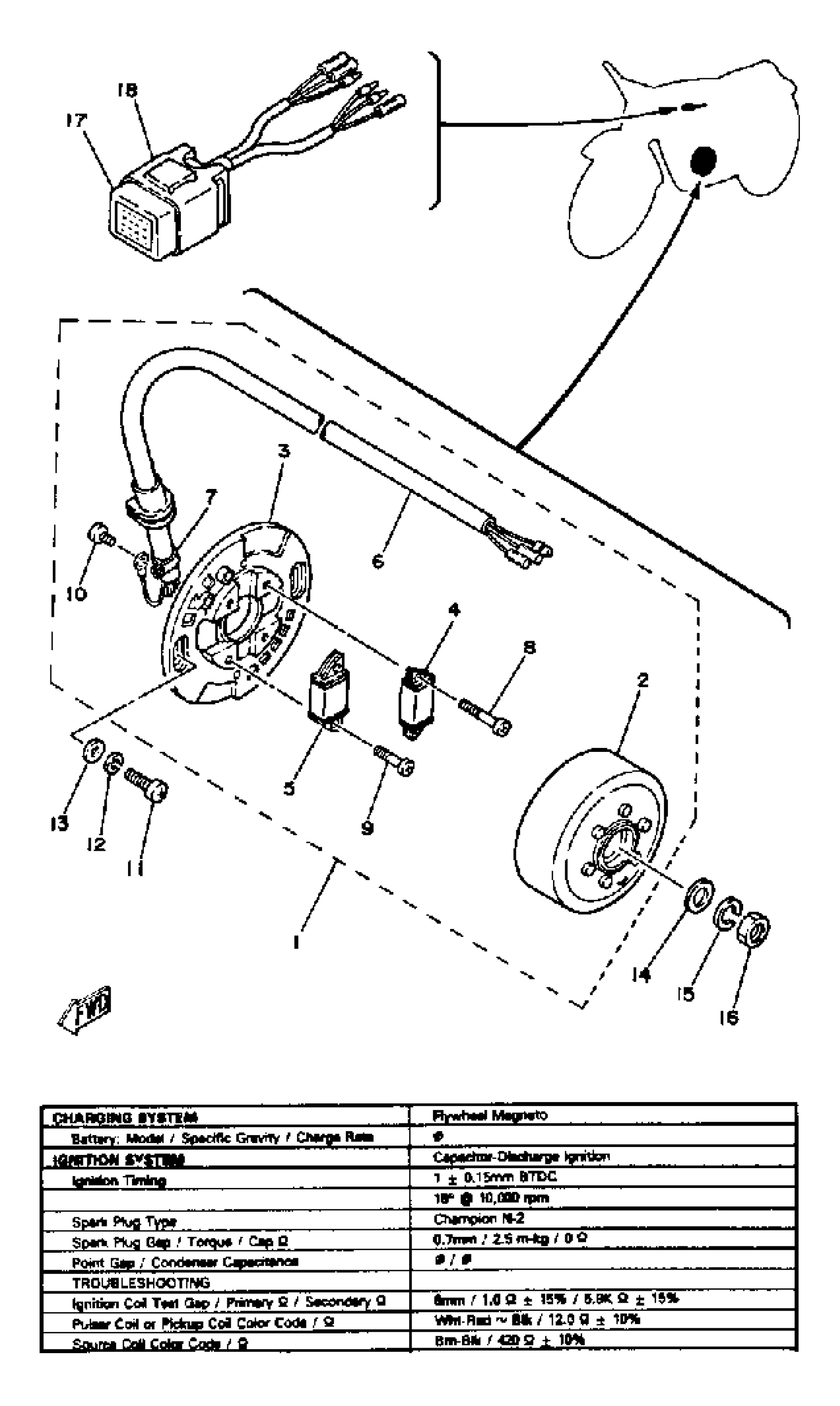

Yamaha YZ60H (YZ60H_J_K) 1981 C - D - I - MAGNETO - YZ60H Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

5X1-85500-20-00

Unavailable

2

ROTOR ASSEMBLY

(4V0-85550-20-00)

Unavailable

3

. BASE, MAGNETO

4V0-85509-20-00

Unavailable

4

. COIL SOURCE 2

4V0-85512-20-00

Unavailable

5

. COIL, PULSER

4V0-85580-20-00

Unavailable

6

LEAD WIRE ASSEMBLY

(5X1-85515-20-00)

Unavailable

7

CLAMP, LEAD

104-81328-20-00

$3.85

8

SCREW, PAN HEAD

98517-05030-00

$7.40

9

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

10

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

12

SCREW PAN HEAD

98580-06020-00

$4.89

13

WASHER, SPRING

92995-06100-00

$2.95

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

WASHER, PLATE (3L6)

90201-10774-00

$5.81

16

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

17

NUT, CRANK SHAFT (650)

90170-10113-00

Unavailable

18

CDI UNIT ASSEMBLY

5X1-85540-20-00

Unavailable

19

BAND

2A7-85546-00-00

Unavailable
