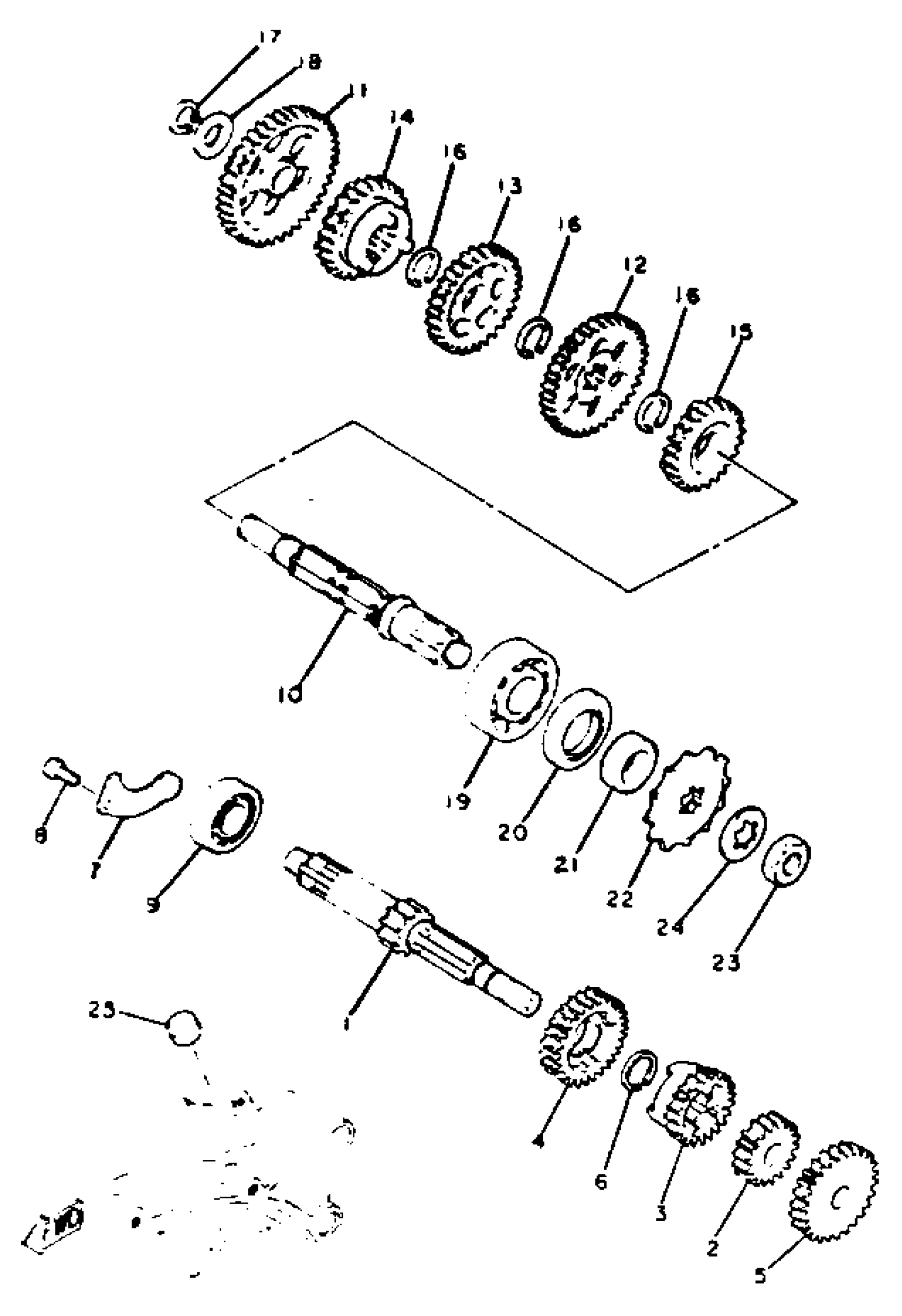

Yamaha YZ50G (YZ50G) 1980 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

353-17411-72-00

Unavailable

2

GEAR, 2ND PINION

353-17121-72-00

Unavailable

3

GEAR, 3RD PINION

353-17131-71-00

Unavailable

4

GEAR, 4TH PINION

(353-17141-72-00)

Unavailable

5

. GEAR, 5TH PINION

353-17151-00-00

Unavailable

6

CIRCLIP (4V0)

93440-16089-00

$7.49

7

PLATE, COVER

353-17471-00-00

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

9

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

10

AXLE, DRIVE

598-17421-00-00

Unavailable

11

GEAR, 1ST WHEEL

353-17211-71-00

Unavailable

12

GEAR, 2ND WHEEL

353-17221-70-00

Unavailable

13

GEAR, 3RD WHEEL

(353-17231-70-00)

Unavailable

14

GEAR, 4TH WHEEL

353-17241-00-00

Unavailable

15

GEAR, 5TH WHEEL

353-17251-00-00

Unavailable

16

CIRCLIP (4V0)

93440-16089-00

$7.49

17

CIRCLIP(13M)

99009-13400-00

Unavailable

18

SHIM

257-17219-00-00

Unavailable

19

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

20

OIL SEAL (25X40X5-101)

93102-25017-00

Unavailable

21

COLLAR

90387-17137-00

Unavailable

22

SPROCKET,DRIVE 12T(2571746121)

93811-12009-00

Unavailable

23

NUT LOCK (RD50)

90179-12181-00

Unavailable

24

WASHER, LOCK

90215-13018-00

Unavailable

25

PLUG(12Y)

90338-16029-00

Unavailable
