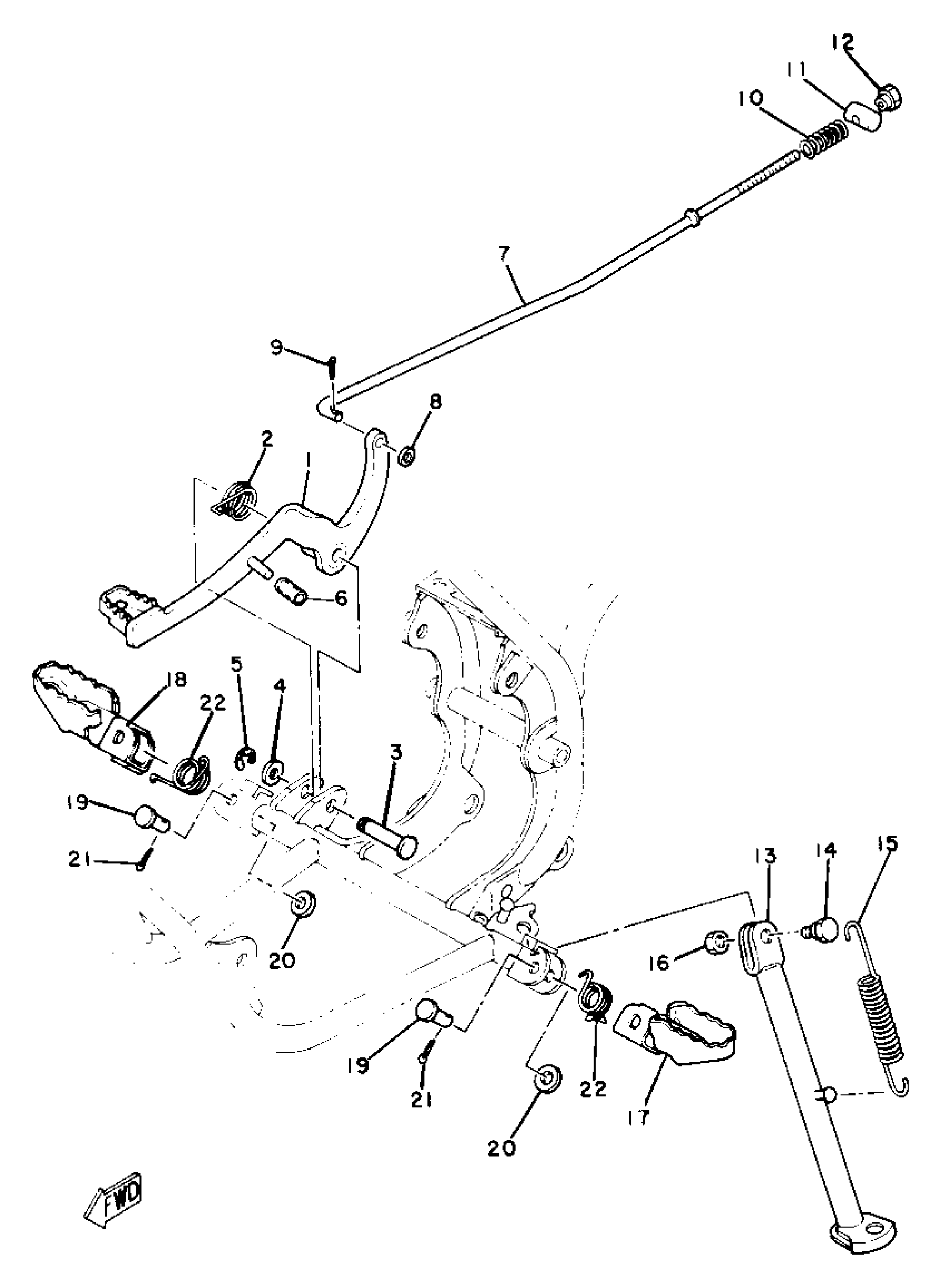

Yamaha YZ50G (YZ50G) 1980 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

3R0-27211-00-00

Unavailable

2

SPRING, TORSION

90508-29406-00

Unavailable

3

PIN, SPEC''L SHAPE

90249-10138-00

Unavailable

4

WASHER, PLATE

92990-10600-00

Unavailable

5

CIRCLIP(2R6)

99001-08600-00

$8.49

6

HOSE

(90445-07358-00)

Unavailable

7

ROD, BRAKE

3R0-27231-00-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

PIN, COTTER

91490-20025-00

$1.99

10

SPRING, (180-27236-00)

90501-10245-00

$8.49

11

PIN 1562723700

90249-12008-00

$8.49

12

NUT (25K)

90179-06411-00

$8.49

13

STAND, SIDE

462-27311-02-00

Unavailable

14

BOLT 1092537300

90109-08063-00

$10.49

15

SPRING, TENSION (1L9)

90506-26270-00

$15.99

16

. NUT

95380-08700-00

Unavailable

17

FOOTREST 1

(2J5-27411-00-00)

Unavailable

18

FOOTREST 2

(2J5-27421-00-00)

Unavailable

19

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

Unavailable

21

PIN, COTTER

91490-25020-00

Unavailable

22

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable
