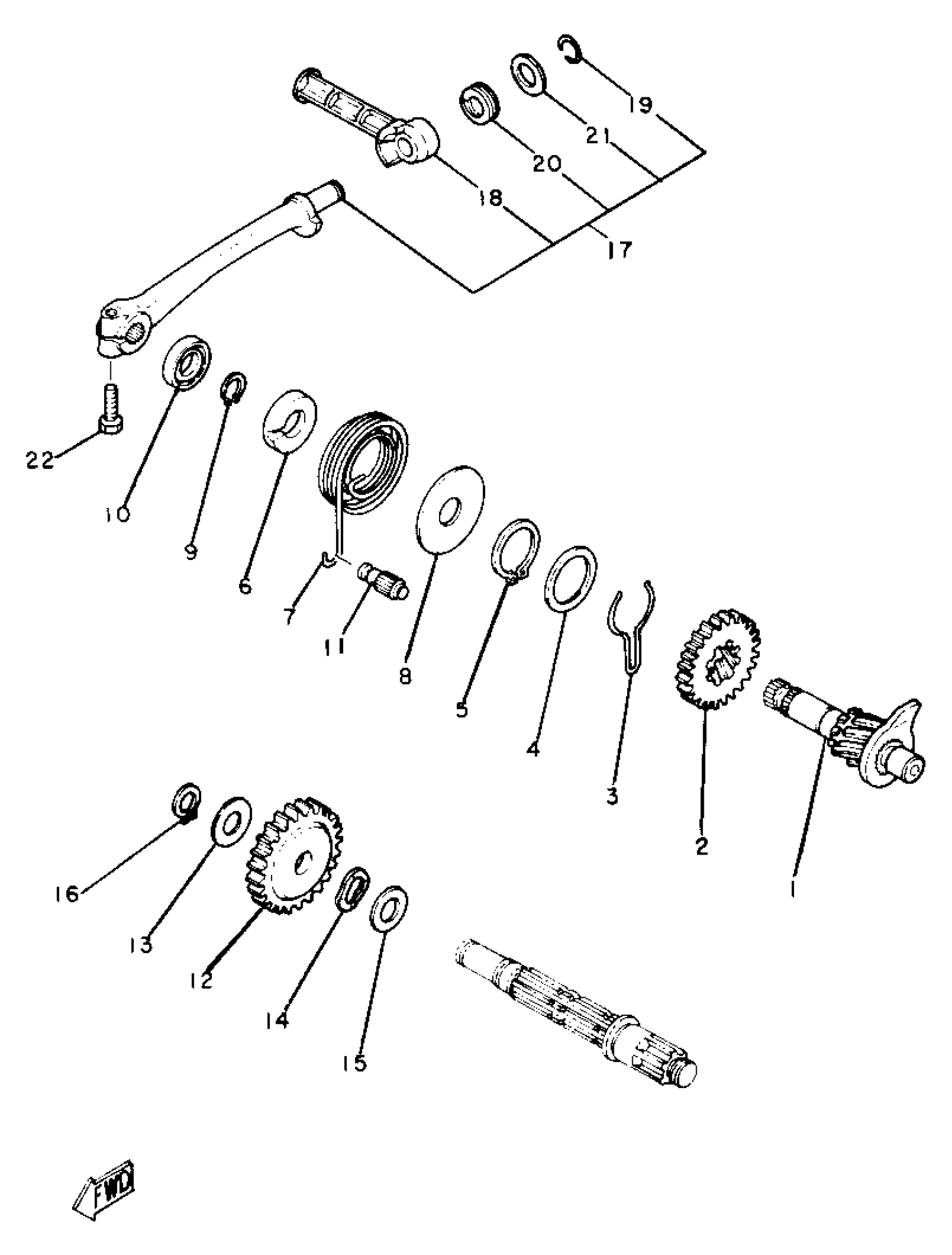

Yamaha YZ50G (YZ50G) 1980 KICK STARTER Diagram

#

Description
Price

1

KICK AXLE ASSEMBLY

(3R0-15660-00-00)

Unavailable

2

GEAR, KICK (24T)

353-15641-00-00

Unavailable

3

CLIP

90468-26038-00

Unavailable

4

WASHER, PLATE(59W)

90201-253K0-00

$8.49

5

CIRCLIP (256)

93410-25017-00

$3.76

6

SPACER

2J5-15666-00-00

Unavailable

7

SPRING, TORSION (451-15665-00)

90508-26196-00

Unavailable

8

COVER, SPRING

462-15676-00-00

Unavailable

9

CIRCLIP(1AR)

99009-15400-00

$8.49

10

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

11

STOPPER, KICK SPRING

248-15668-00-00

$7.99

12

GEAR, KICK IDLE

353-15651-00-00

Unavailable

13

WASHER, PLATE

90201-13013-00

$8.49

14

WASHER WAVE 137156430000

90206-15021-00

Unavailable

15

WASHER (692)

90201-12M34-00

Unavailable

16

CIRCLIP(10Y)

99009-12400-00

Unavailable

17

KICK CRANK ASSEMBLY

3AY-15620-00-00

Unavailable

18

LEVER, KICK

(3R0-15612-00-00)

Unavailable

19

. CIRCLIP, OUTER

93440-10028-00

Unavailable

20

SPRING, COMPRESSION (5L1)

90504-18031-00

Unavailable

21

WASHER,SPEC'L SHAPE

90209-10210-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable
