Description

Price

1

EXHAUST PIPE ASSEMBLY L

(3R0-14610-00-00)

Unavailable

2

GASKET, EXHAUST PIPE

3MT-14613-00-00

$10.99

3

BOLT, STUD (17W)

90116-08408-00

Unavailable

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

NUT(6L2)

95333-08600-00

$2.49

6

STAY, MUFFLER 1

3R0-14771-00-00

Unavailable

7

BOLT(JA9)

90101-08691-00

$4.29

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

.. WASHER, PLATE

92990-08600-00

Unavailable

10

PROTECTOR, MUFF 1

(3R0-14718-00-00)

Unavailable

11

SCREW, BIND(2TV)

98980-06008-00

$3.19

12

SILENCER, EXHAUST

3R0-14753-00-00

Unavailable

13

BAND, SILENCER

3R0-14788-00-00

Unavailable

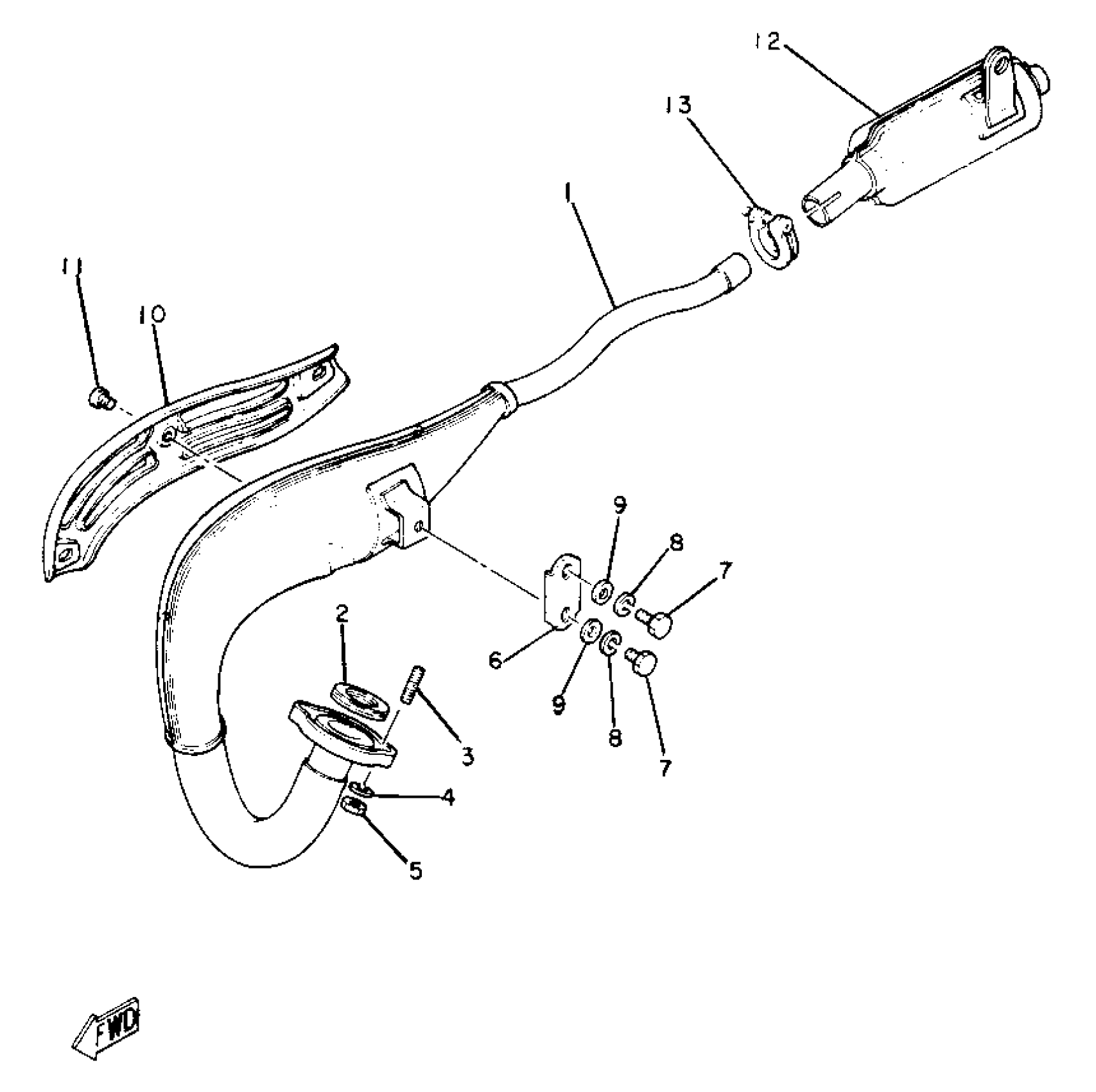

Yamaha YZ50G (YZ50G) 1980 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY L

GASKET, EXHAUST PIPE

BOLT, STUD (17W)

YBS67-8 WASHER, SPRING

NUT(6L2)

STAY, MUFFLER 1

BOLT(JA9)

YBS67-8 WASHER, SPRING

.. WASHER, PLATE

PROTECTOR, MUFF 1

SCREW, BIND(2TV)

SILENCER, EXHAUST

BAND, SILENCER
