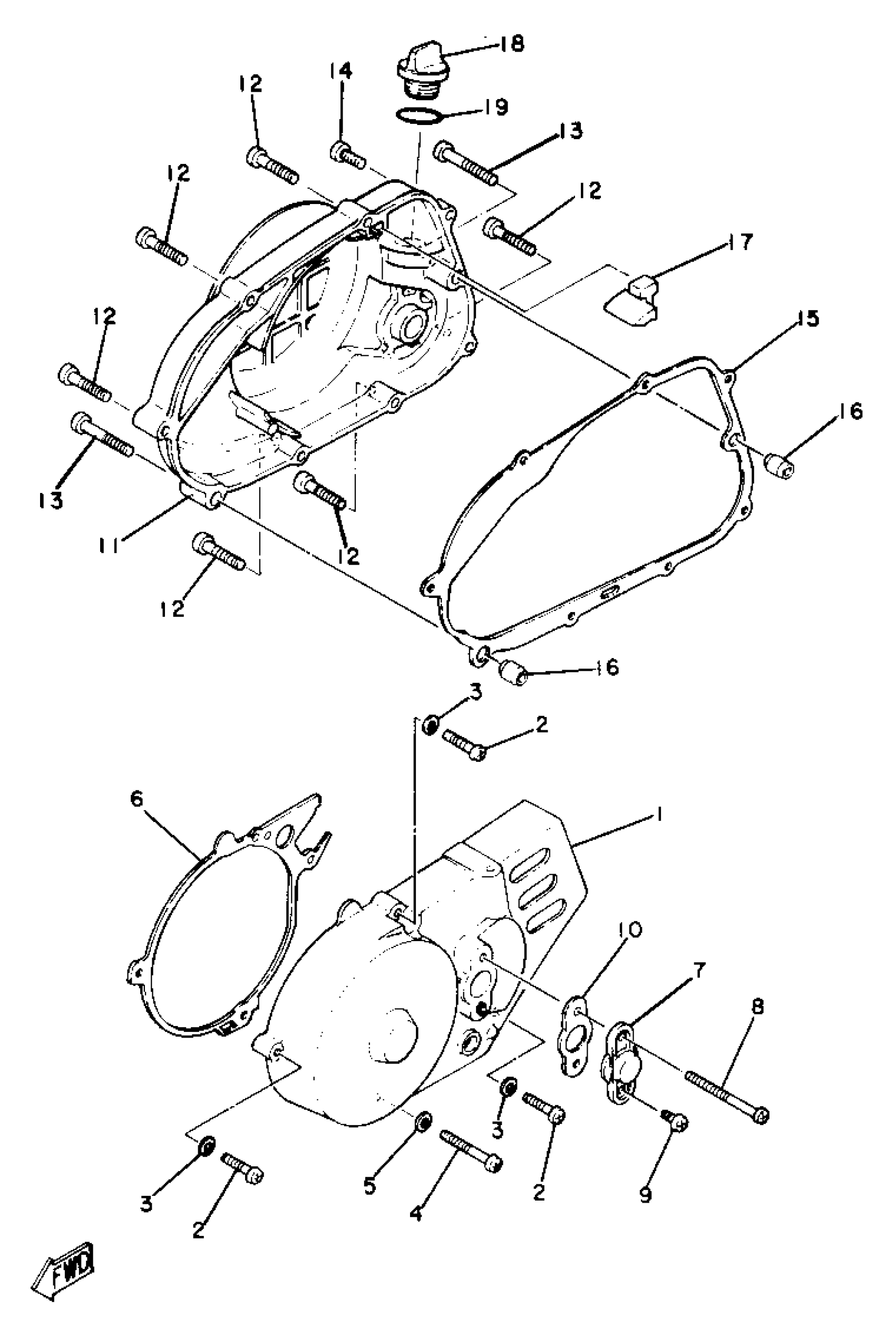

Yamaha YZ50G (YZ50G) 1980 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

3R0-15411-00-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

3

WASHER(6TA)

92907-06600-00

$0.73

4

SCREW, PAN

98507-06040-00

$2.08

5

WASHER(6TA)

92907-06600-00

$0.73

6

GASKET,CRCS COVER

3R0-15451-01-00

Unavailable

7

COVER, CAP

3R0-15417-00-00

Unavailable

8

SCREW, PAN

98507-06060-00

$5.23

9

SCREW, PAN

98507-06010-00

$2.52

10

GASKET

3R0-15457-01-00

Unavailable

11

COVER, CRANKCASE R

2J5-15421-00-00

Unavailable

12

SCREW, PAN

98517-06030-00

$2.88

13

SCREW, PAN

98507-06040-00

$2.08

14

SCREW, PAN

98507-06014-00

$5.76

15

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

$20.98

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

SCRAPER, OIL

353-15437-02-00

Unavailable

18

PLUG, OIL

3Y1-15363-10-00

Unavailable

19

O-RING

93210-21190-00

Unavailable
