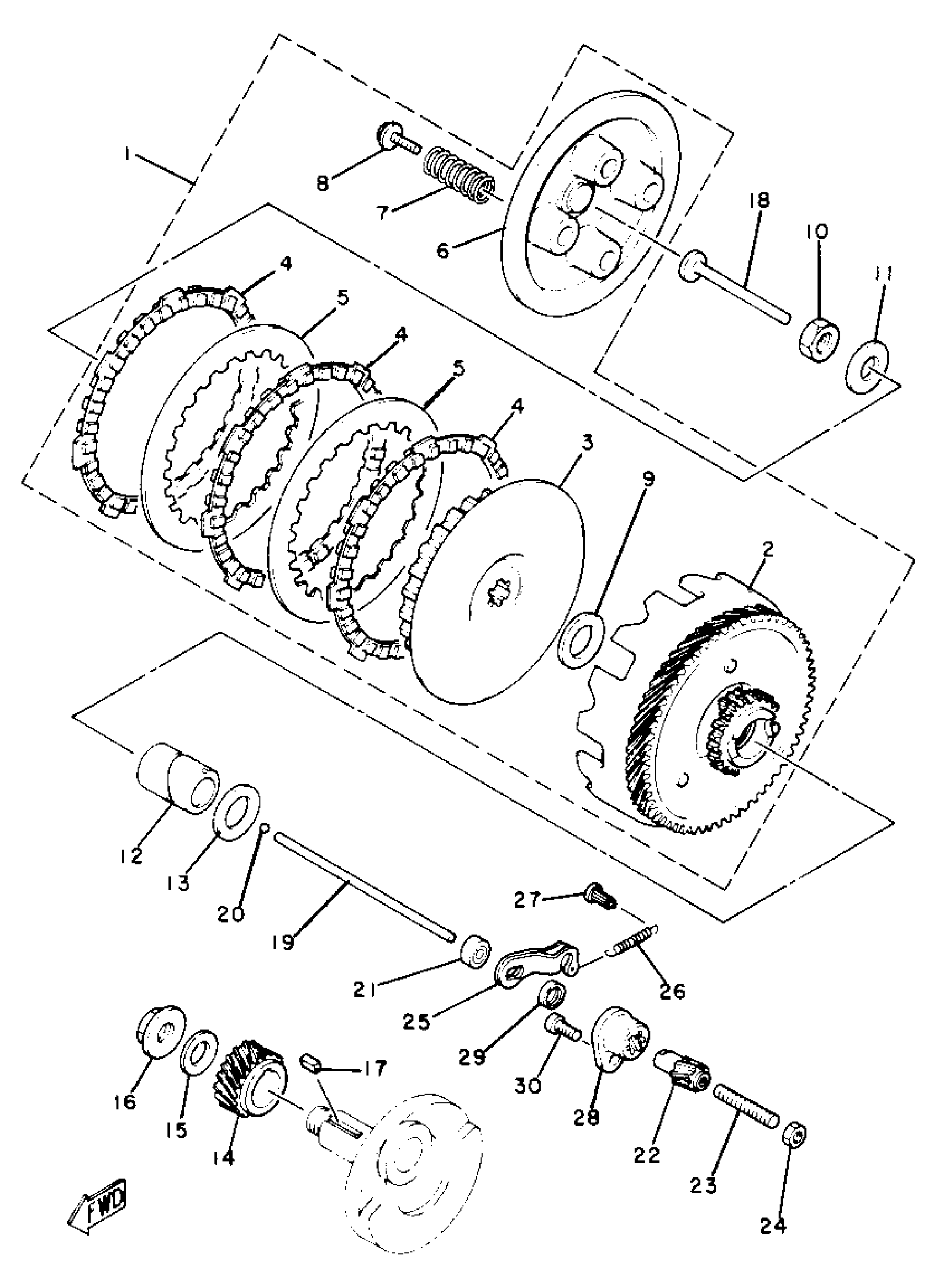

Yamaha YZ50G (YZ50G) 1980 CLUTCH Diagram
#
Description
Price
1
CLUTCH ASSEMBLY
(3R0-16300-00-00)
Unavailable
2
. PRIMARY DRIVEN GEAR COMP (68T) (2A3-16150-00)
1T0-16150-01-00
Unavailable
3
. BOSS, CLUTCH
353-16371-00-00
Unavailable
5
PLATE, CLUTCH 1
257-16324-10-00
Unavailable
6
. PLATE, PRESSURE 1
353-16351-00-00
Unavailable
11
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
12
SPACER
90560-17123-00
Unavailable
14
GEAR, PRI DRIVE
353-16111-01-00
Unavailable
15
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
16
NUT(1EE)
90179-12659-00
Unavailable
17
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
18
ROD,PUSH (1)
137-16356-00-00
Unavailable
19
ROD, PUSH (2)
257-16357-00-00
Unavailable
20
BALL
93503-16003-00
Unavailable
21
OIL SEAL(1JY)
93102-04382-00
Unavailable
22
SCREW, PUSH
241-16341-01-00
Unavailable
23
BOLT SET 241163430000
90113-06013-00
Unavailable
24
NUT(650)
95380-06700-00
Unavailable
25
LEVER, PUSH
451-16342-00-00
Unavailable
26
SPRING TENSION 257163450000
90506-07066-00
Unavailable
27
HOOK, SPRING
132-16346-00-00
Unavailable
28
HOUSING, PUSH SCREW
3R0-16396-00-00
Unavailable
29
SEAL 0IL (2V7)
93104-10085-00
Unavailable
30
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
