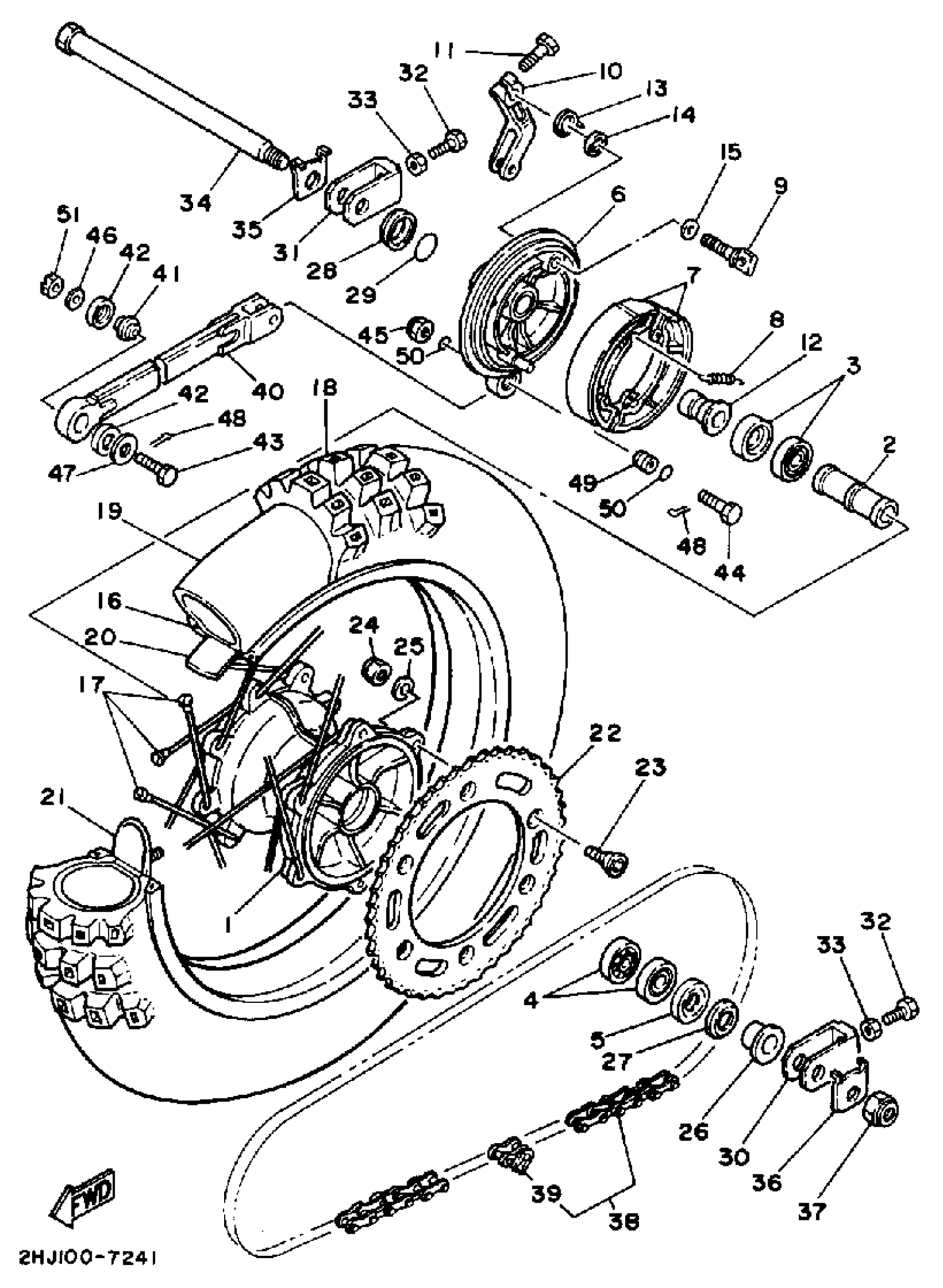

Yamaha YZ490W (MOTOCROSS) 1989 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

57H-25311-00-98

Unavailable

2

SPACER

90560-20226-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL(39X)

93106-28023-00

$12.49

6

PLATE, BRAKE SHOE

40T-25321-00-98

Unavailable

7

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

8

SPRING, TENSION 2462533300

90507-20002-00

$8.49

9

CAMSHAFT

1E6-25151-00-00

Unavailable

10

LEVER, CAMSHAFT

5X6-25355-00-00

Unavailable

11

BOLT, HEXAGON (462)

90101-06291-00

$8.49

12

COLLAR

90387-200H1-00

Unavailable

13

SPRING, TORSION

90508-29641-00

Unavailable

14

OIL SEAL (2K8)

93109-14021-00

$13.49

15

SHIM, CAM SHAFT

148-25353-00-00

$6.99

16

RIM 2.50

94425-18454-00

Unavailable

17

SPOKE SET, REAR

57H-25304-00-00

Unavailable

18

110/100-18 M22 BS

94111-187H3-00

Unavailable

19

TUBE (5A8)

94212-18188-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

SPACER, BEAD

2X5-25394-00-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK

30W-25452-00-00

Unavailable

22

SPROCKET, DRIVN 44T

(39W-25444-00-00)

Unavailable

22

SPROCKET, DRIVN 45T

(39W-25445-00-00)

Unavailable

22

SPROCKET, DRIVN 46T

(39W-25446-00-00)

Unavailable

22

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

22

SPROCKET, DRIVEN (49T) (2HH-25449-00-00)

3R4-25449-01-XX

Unavailable

22

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

23

BOLT(1TJ)

90109-081G2-00

Unavailable

24

NUT, U

95617-08100-00

Unavailable

25

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

26

COLLAR

90387-2000C-00

Unavailable

27

COVER, HUB DUST

4V4-25367-00-00

Unavailable

28

COVER, PLATE

23X-25327-00-00

Unavailable

29

O-RING

93210-31MJ5-00

Unavailable

30

PULLER, CHAIN 2

57H-25389-01-00

Unavailable

31

PULLER, CHAIN 2

57H-25389-01-00

Unavailable

32

BOLT

90101-08060-00

Unavailable

33

. NUT

95380-08700-00

Unavailable

34

AXLE, WHEEL

23X-25381-00-00

Unavailable

35

WASHER, PLATE (90201-210G3)

90209-21243-00

Unavailable

36

WASHER, PLATE (90201-180G2)

90209-18244-00

Unavailable

37

NUT, SELF-LOCKING

90185-18009-00

Unavailable

38

CHAIN

9Y581-92111-00

Unavailable

39

JOINT, CHAIN

94681-68001-00

Unavailable

40

BAR, TENSION

23X-25371-00-00

Unavailable

41

BEARING,SPECIAL

23X-253N4-09-00

Unavailable

42

OIL SEAL

93112-19006-00

Unavailable

43

BOLT, WITH HOLE

90102-08062-00

Unavailable

44

BOLT

90109-08370-00

Unavailable

45

NUT, SELF-LOCKING

90185-08169-00

Unavailable

46

.. WASHER, PLATE

92990-08600-00

Unavailable

47

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

48

PIN, COTTER

91490-20025-00

Unavailable

49

COLLAR

90387-083F0-00

Unavailable

50

O-RING (648)

93210-14167-00

Unavailable

51

NUT, SLOTTED

95307-08900-00

Unavailable
