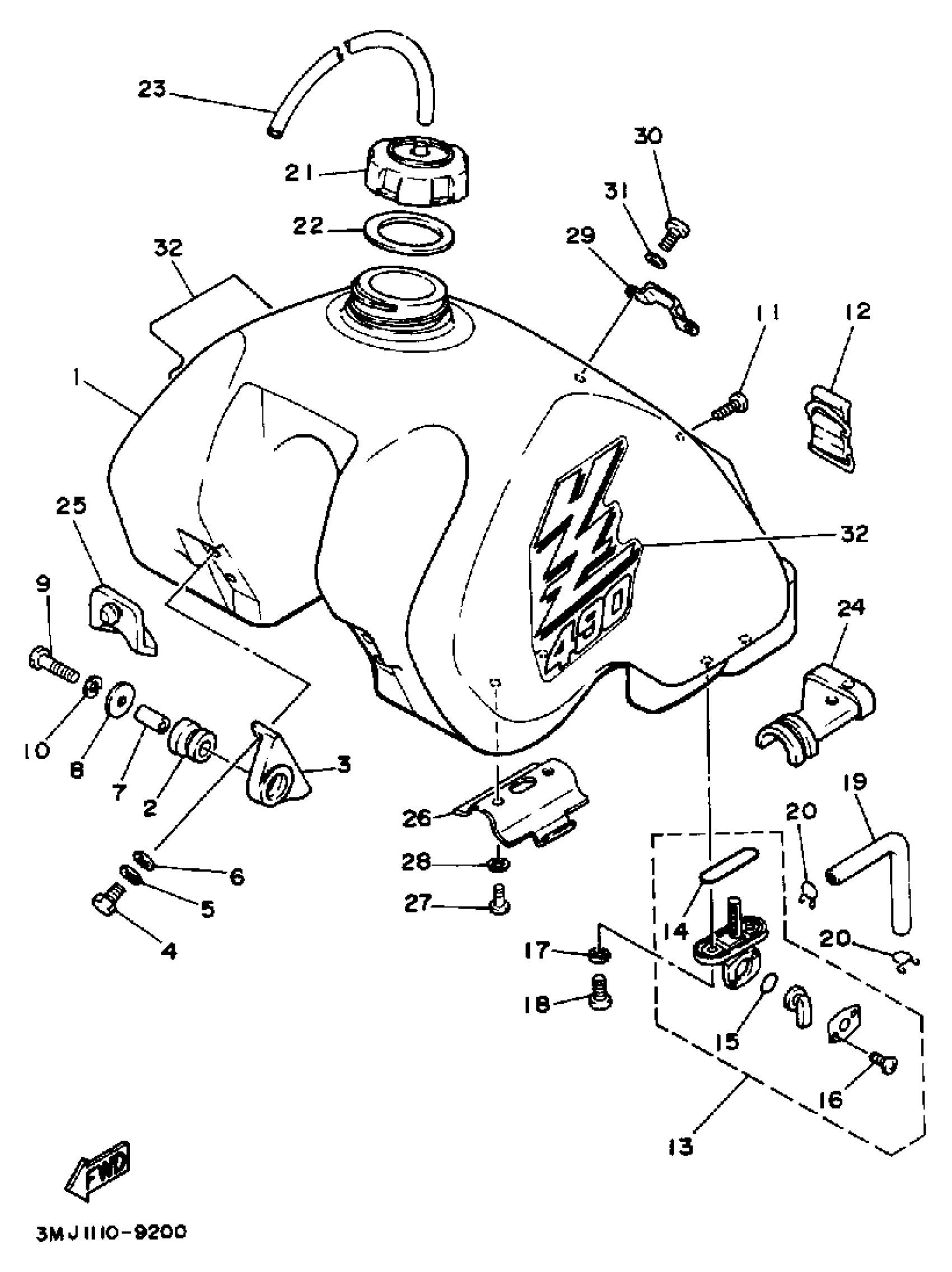

Yamaha YZ490W (MOTOCROSS) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1LV-24110-01-00

Unavailable

2

GROMMET(4AA)

90480-18549-00

$10.49

3

HOLDER, DAMPER

5XE-24144-00-00

$23.99

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

COLLAR

90387-06387-00

Unavailable

8

WASHER, PLATE (J10)

90201-06697-00

$8.49

9

BOLT(3RV)

97014-06035-00

$2.75

10

WASHER, SPRING

92995-06100-00

Unavailable

11

SCREW, BIND (J17)

98980-06020-00

$8.49

12

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

13

FUEL COCK ASSY 1

2VN-24500-02-00

$53.99

14

O-RING

4X8-24512-00-00

$8.99

15

O-RING

4X8-24534-00-00

$13.49

16

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

HOSE (L198)

90445-11293-00

Unavailable

20

CLIP

90467-100A1-00

Unavailable

21

BODY, CAP

5X7-24611-01-00

Unavailable

22

PACKING, CAP

5X7-24612-00-00

Unavailable

23

HOSE (L420)

90445-092K1-00

Unavailable

24

DAMPER, LOCATING 1

1LX-24181-00-00

Unavailable

25

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable

26

STAY,CHAMBER

4AA-2415F-00-00

Unavailable

27

SCREW PAN HEAD

98580-06010-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

$2.80

29

BRACKET, SEAT

40T-2412F-00-00

Unavailable

30

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

$2.80

32

GRAPHIC, FUEL TNK 7

3MJ-24254-00-00

Unavailable
