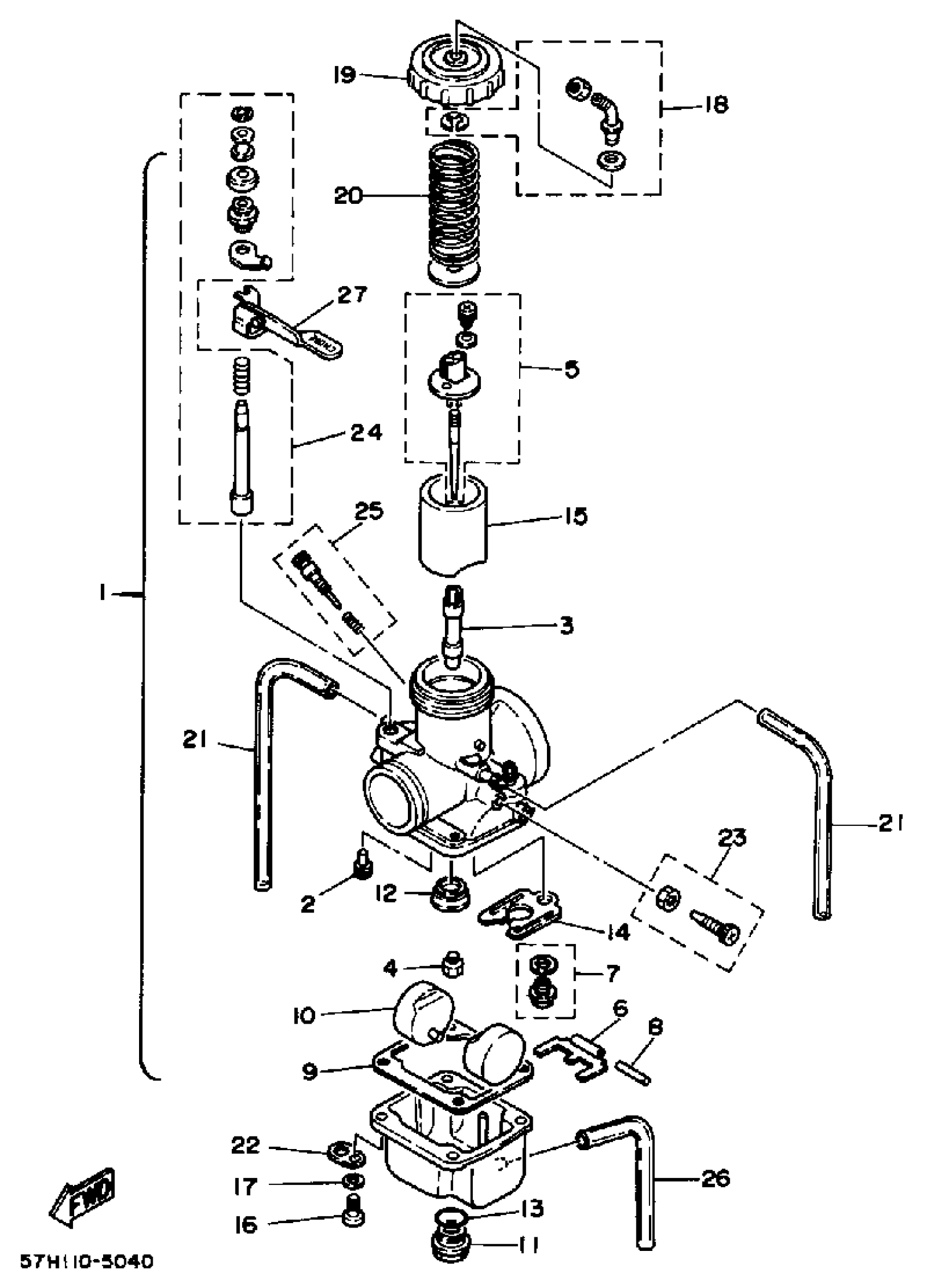

Yamaha YZ490W (MOTOCROSS) 1989 CARBURETOR Diagram

CARBURETOR ASSEMBLY1

2HJ-14101-10-00

Unavailable

JET, PIL0T(# 35)

193-14142-35-00

$9.99

. JET, PILOT #40

193-14142-40-A1

Unavailable

. JET, PILOT (#45)

193-14142-45-A1

Unavailable

. NOZZLE, MAIN Q-4

8A7-14141-54-00

Unavailable

. NOZZLE, MAIN Q-6

8A7-14141-56-00

Unavailable

. NOZZLE, MAIN Q-8

8A7-14141-58-00

Unavailable

JET, MAIN #450

137-14143-90-00

$6.99

JET, MAIN #460

137-14143-92-00

$6.99

JET, MAIN #470

137-14143-94-00

$6.99

JET, MAIN #480

137-14143-96-00

$6.99

JET, MAIN #490

137-14143-98-00

$5.49

. NEEDLE SET

2HJ-1490J-00-00

Unavailable

. ARM, FLOAT

40T-14187-00-00

Unavailable

NEEDLE VALVE SET

23X-14107-35-00

$45.99

PIN, FLOAT

537-14186-00-00

Unavailable

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

Unavailable

. FLOAT

214-14185-00-00

Unavailable

. PLUG, SCREW

40T-14115-00-00

Unavailable

. WASHER, MAIN JET

3R3-14153-00-00

Unavailable

WASHER,SCREW PLUG

278-14117-00-00

Unavailable

PLATE

(40T-14146-00-00)

Unavailable

. VALVE, THROTTLE 1 25

40T-14112-25-00

Unavailable

. VALVE, THROTTLE 1 30

40T-14112-30-00

Unavailable

. VALVE, THROTTLE

40T-14112-35-00

Unavailable

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

. CABLE ADJUST SET SCREW

40T-14106-00-00

Unavailable

. TOP, MIXING CHAMBER

40T-14158-00-00

Unavailable

. SPRING, THROTTLE VALVE

8H0-14131-00-00

Unavailable

PIPE, OVER FLOW

2J2-14196-00-00

Unavailable

. PLATE

313-14146-00-00

Unavailable

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

. STARTER SET

57H-1410A-00-00

Unavailable

AIR SCREW SET

23X-14104-00-00

Unavailable

HOSE

88R-14987-00-00

Unavailable

. LEVER, STARTER 1

57H-14175-00-00

Unavailable
