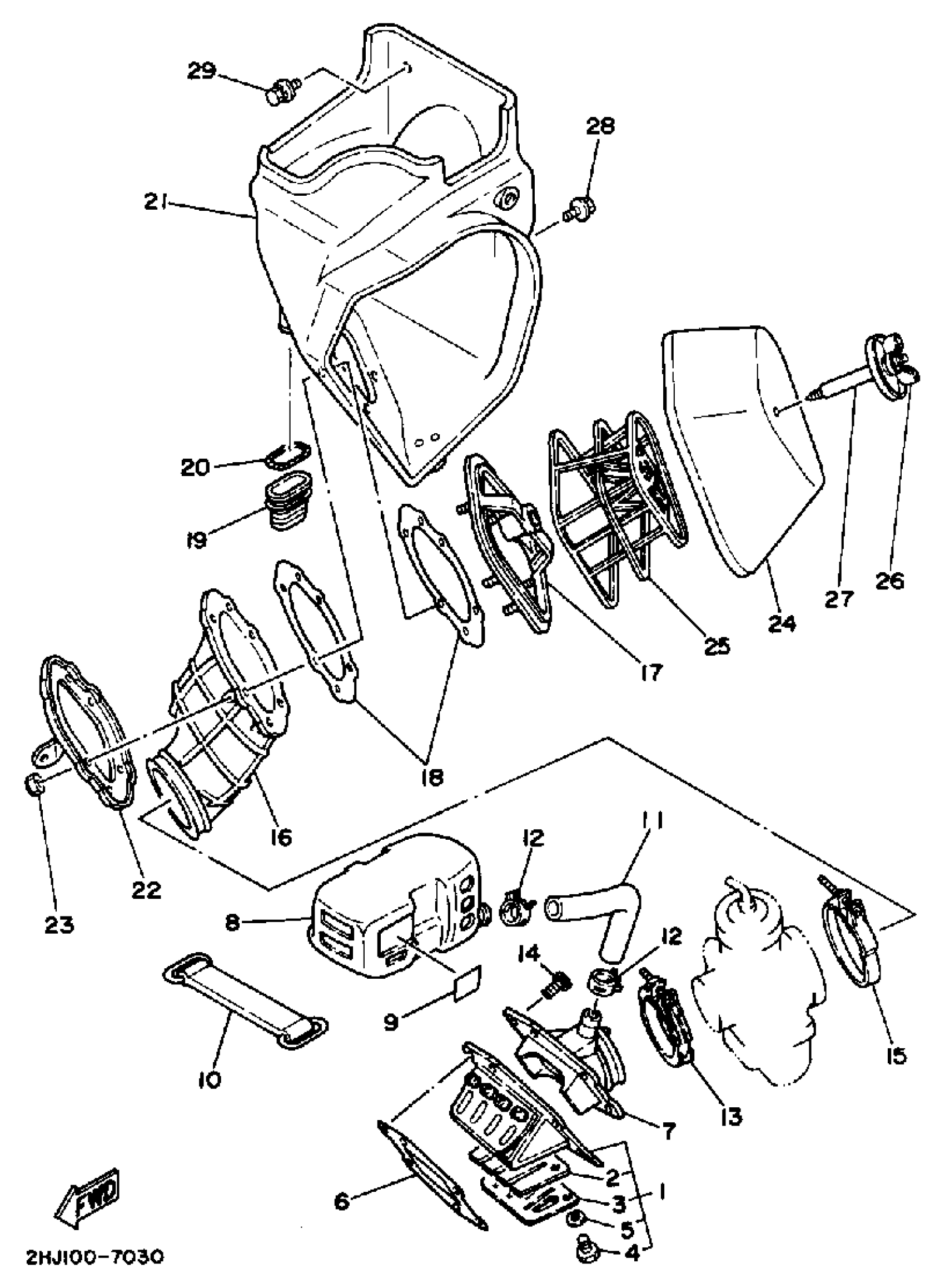

Yamaha YZ490W (MOTOCROSS) 1989 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

56A-13610-01-00

Unavailable

2

REED,VALVE

8AB-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

56A-13616-00-00

Unavailable

4

SCREW, PAN HEAD(78G)

98580-03006-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

39X-13621-11-00

Unavailable

7

JOINT, CARBURETOR

2HJ-13565-00-00

Unavailable

8

CHAMBER, AIR

40T-13581-00-00

Unavailable

9

EMBLEM

4V3-1441K-00-00

Unavailable

10

BAND

26A-13575-00-00

Unavailable

11

PIPE, MANIFOLD

1LV-13584-00-00

Unavailable

12

CLIP(4HC)

90467-23177-00

$4.24

13

BAND

86M-13575-00-00

$19.49

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

CLAMP, HOSE

90460-74254-00

Unavailable

16

JOINT, AIR CLNR 1

2HJ-14453-00-00

Unavailable

17

HOLDER, GUIDE

56A-14459-00-00

Unavailable

18

SEAL

39X-14462-00-00

Unavailable

19

SEAL

39K-14457-00-00

Unavailable

20

SPRING, COMPRESSION

90504-03033-00

Unavailable

21

AIR CLEANER CASE COMP

1LU-W1441-00-00

Unavailable

22

PLATE

1LU-14477-00-00

Unavailable

23

NUT, U

95617-05100-00

Unavailable

24

ELEMENT, AIR CLNR

2HH-14451-00-00

Unavailable

25

GUIDE, ELEMENT

2HH-14458-00-00

Unavailable

26

PLATE, ELEMENT FTNG

2HH-14468-00-00

Unavailable

27

BOLT, WING

90122-06025-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

Unavailable

29

BOLT, WITH WASHER

90119-06152-00

Unavailable
