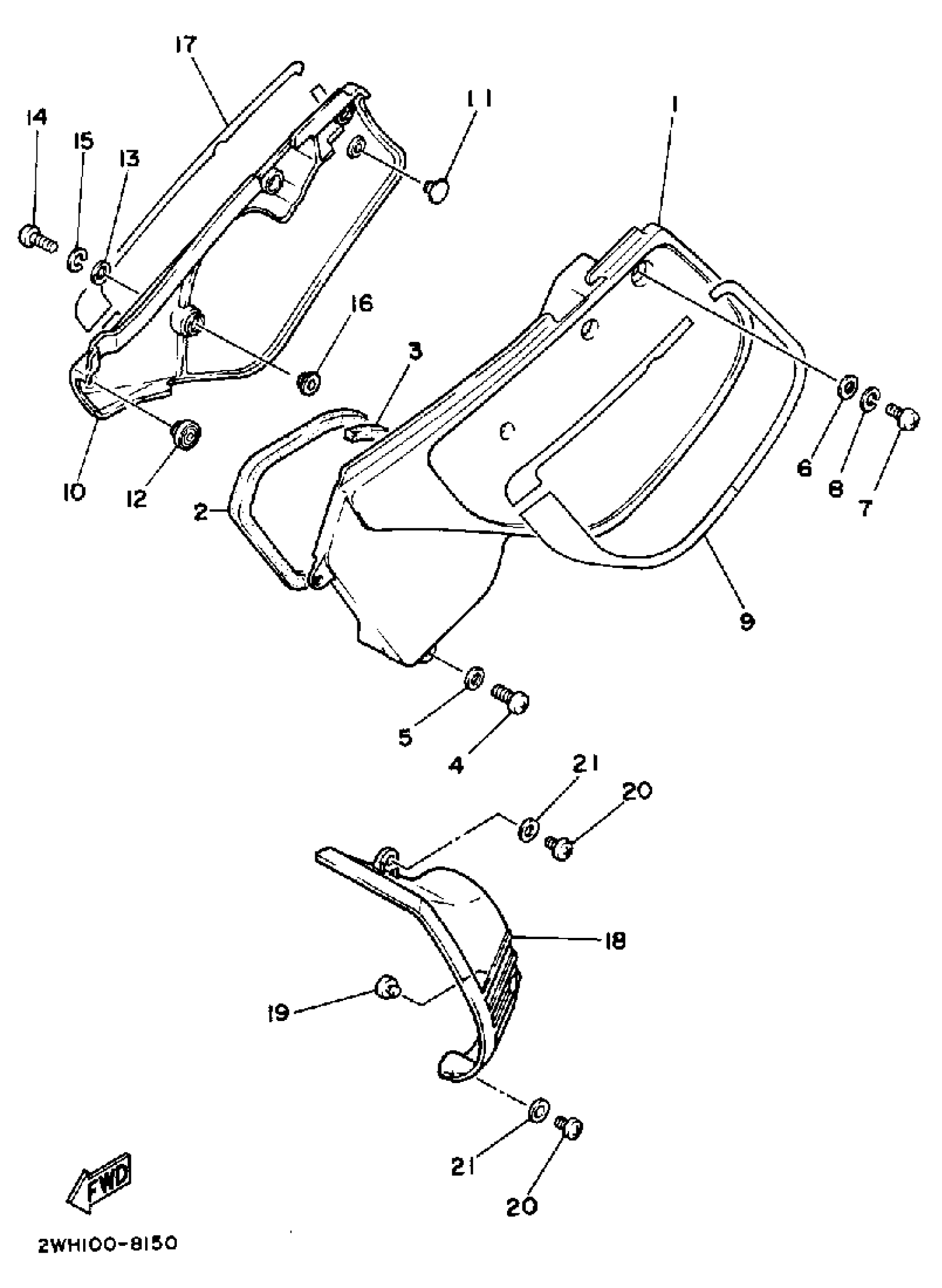

Yamaha YZ490U (YZ490U) 1988 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE LEFT

1LX-21711-01-98

Unavailable

2

SEAL

39W-14452-00-00

Unavailable

3

SEAL

39X-14452-00-00

Unavailable

4

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

5

WASHER(6TA)

92907-06600-00

$2.72

6

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

7

SCREW, PAN

98507-06014-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GRAPHIC SET 1

2VN-2173L-00-00

Unavailable

10

UNAVAILABLE IN PRICE BOOK

1LV-21721-01-00

Unavailable

11

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

12

PAD, SEAT

22W-24741-00-00

$8.99

13

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

14

SCREW, PAN

98507-06014-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

COLLAR(47X)

90387-061M0-00

Unavailable

17

GRAPHIC SET 2

2VN-2174L-00-00

Unavailable

18

SCOOP, AIR 1

43R-2137W-00-00

Unavailable

19

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

20

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

21

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable
