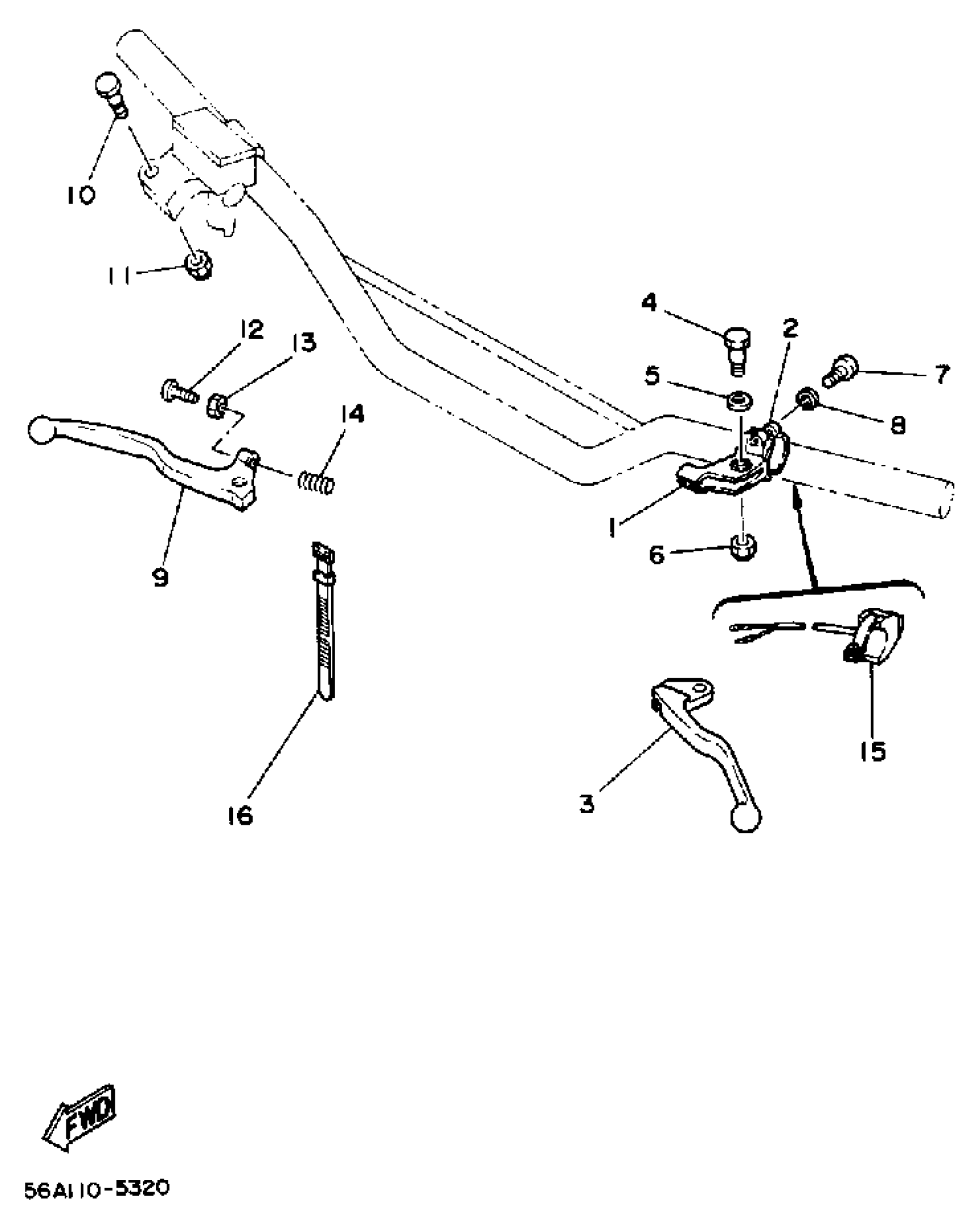

Yamaha YZ490U (YZ490U) 1988 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

H0LDER, LEVER 1

38V-82911-00-00

$38.99

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

23X-83912-02-00

$27.99

4

BOLT(3GB)

90109-061F3-00

$7.49

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

8

WASHER(3SX)

92907-05100-00

$8.49

9

LEVER 2

55Y-83922-02-00

$37.99

10

BOLT (4L0)

90109-06577-00

$5.60

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

15

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable
