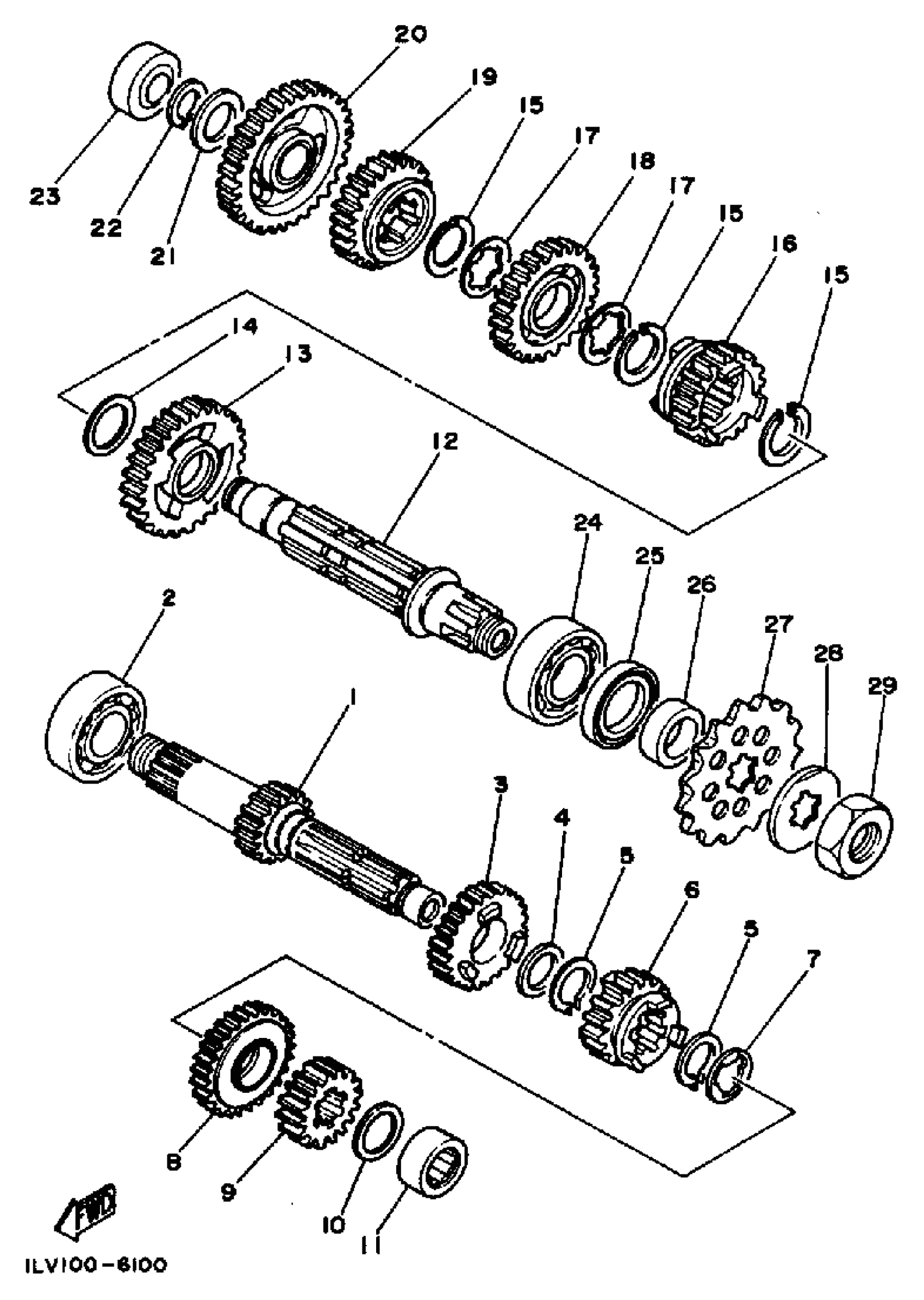

Yamaha YZ490S (YZ490) 1986 TRANSMISSION Diagram

AXLE, MAIN (15T)

1LV-17411-00-00

Unavailable

BEARING (23X)

93300-20501-00

$70.99

GEAR, 4TH PINION (22T)

1LV-17141-00-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

$8.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR,3RD PINION

1LV-17131-01-00

Unavailable

WASHER 434172160000

90209-22082-00

Unavailable

GEAR, 5TH PINION (24T)

1LV-17151-00-00

Unavailable

GEAR, 2ND PINION (16T)

1LV-17121-00-00

Unavailable

WASHER

90209-20213-00

Unavailable

BEARING (2X7)

93311-62035-00

$57.99

AXLE, DRIVE

5X5-17421-00-00

Unavailable

GEAR, 2ND WHEEL (24T)

1LV-17221-00-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

$8.49

CIRCLIP (4L0)

93440-25084-00

$5.60

GEAR, 5TH WHEEL (20T)

1LV-17251-00-00

Unavailable

WASHER 434172160000

90209-22082-00

Unavailable

GEAR, 3RD WHEEL (22T)

1LV-17231-00-00

Unavailable

GEAR, 4TH WHEEL (22T)

1LV-17241-00-00

Unavailable

GEAR, 1ST WHEEL (29T)

1LV-17211-00-00

Unavailable

WASHER PLATE 168171160000

90201-20278-00

Unavailable

CIRCLIP (525)

93410-20038-00

Unavailable

BEARING (2X7)

93311-62035-00

$57.99

BEARING (23X)

93300-20501-00

$70.99

OIL SEAL (697)

93102-32M07-00

Unavailable

COLLAR (2K7)

90387-25663-00

Unavailable

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

SPROCKET, DRIVE

93834-14051-00

Unavailable

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

Unavailable

WASHER, LOCK (23X)

90215-21239-00

Unavailable

NUT (2K7)

90179-20255-00

Unavailable
