1986 Yamaha YZ490 (YZ490S) Swing ARM Diagram

← All diagrams

Find the part on the Swing ARM diagram for your 1986 Yamaha YZ490 (YZ490S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

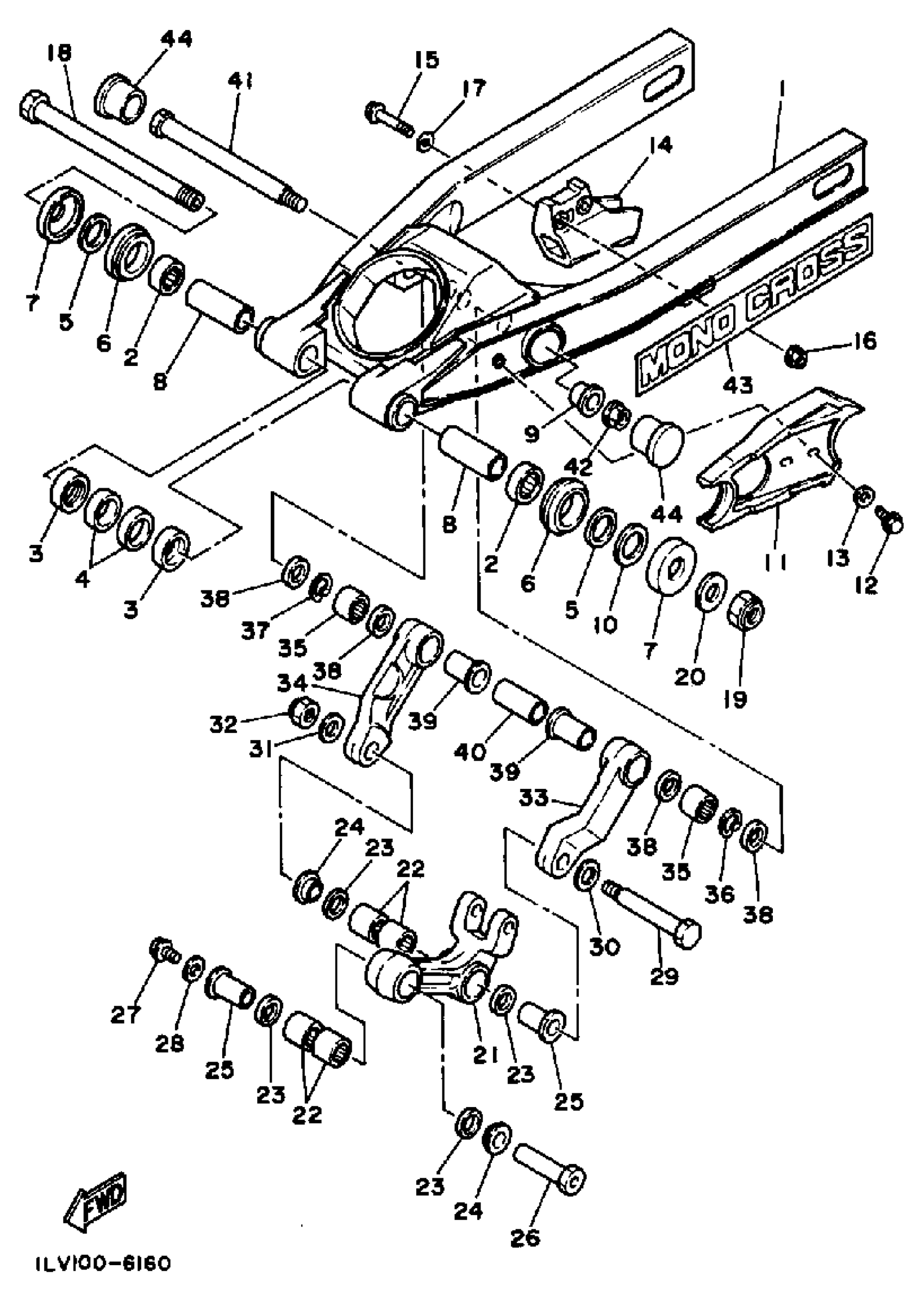

1986 Yamaha YZ490 (YZ490S) Swing ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(1LV-22110-00-00)

1
Out of stock

2

1

$38.51

In stock

3

BUSH, SOLID (23X)

90380-22111-00

1
Out of stock

4

OIL SEAL (23X)

93106-22019-00

1
Out of stock

5

BEARING, THRUST (3R7)

93342-22208-00

1

$29.03

In stock

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

1

$12.58

In stock

7

COVER, THRUST2

3R4-22129-00-00

1
Out of stock

8

BUSH, SOLID(1LV)

90380-16158-00

1

$27.42

In stock

9

BUSH, SOLID

90381-16060-00

1
Out of stock

10

SHIM,REAR ARM

240-22127-00-00

1

$5.74

In stock

11

SEAL, GUARD

1LX-22151-00-00

1

$26.77

In stock

12

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

SUPPORT, CHAIN

39W-22199-01-00

1

$34.74

In stock

15

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock

16

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

SHAFT, PIVOT

1LX-22141-00-00

1
Out of stock

19

NUT, SELF-LOCKING

90185-16002-00

—
Out of stock

20

WASHER, PLATE(33Y)

90201-164H4-00

—

$8.02

In stock

21

ARM, RELAY

1LX-2217A-00-00

1
Out of stock

22

BEARING, CYLINDRICAL(1LV)

93315-32044-00

—

$29.54

In stock

23

OIL SEAL

93109-20076-00

—
Out of stock

24

COLLAR(1LV)

90387-164N2-00

—

$20.38

In stock

25

COLLAR

90387-164N3-00

1
Out of stock

26

NUT, UNION

90402-10005-00

1
Out of stock

27

BOLT, FLANGE(3HP)

95817-10016-00

—

$6.17

In stock

28

WASHER, PLATE (17K)

90201-106F2-00

—

$7.66

In stock

29

BOLT

90101-14648-00

1
Out of stock

30

WASHER, PLATE(33Y)

90201-164H4-00

—

$8.02

In stock

31

WASHER, PLATE (25G)

90201-140H8-00

—
Out of stock

32

NUT, SELF-LOCKING (1J7)

90185-14070-00

—

$10.45

In stock

33

ROD, CONNECTING 1

(1LX-2217F-00-00)

1
Out of stock

34

ROD, CONNECTIING 2

(1LX-2217G-00-00)

1
Out of stock

35

BEARING, CYLINDRICAL(3MH)

93315-32057-00

—

$27.22

In stock

36

CIRCLIP, INNER

93450-28063-00

1
Out of stock

37

CIRCLIP, INNER

93450-28063-00

1
Out of stock

38

OIL SEAL

93109-20076-00

—
Out of stock

39

COLLAR

90387-164N3-00

1
Out of stock

40

COLLAR

90387-164N1-00

1
Out of stock

41

BOLT

90123-14104-00

1
Out of stock

42

NUT, SELF-LOCKING (8BF)

95607-14200-00

—
Out of stock

43

EMBLEM, REAR ARM

5X3-2218A-00-00

1
Out of stock

44

COVER

1HX-2135F-10-00

—
Out of stock
