1986 Yamaha YZ490 (YZ490S) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1986 Yamaha YZ490 (YZ490S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

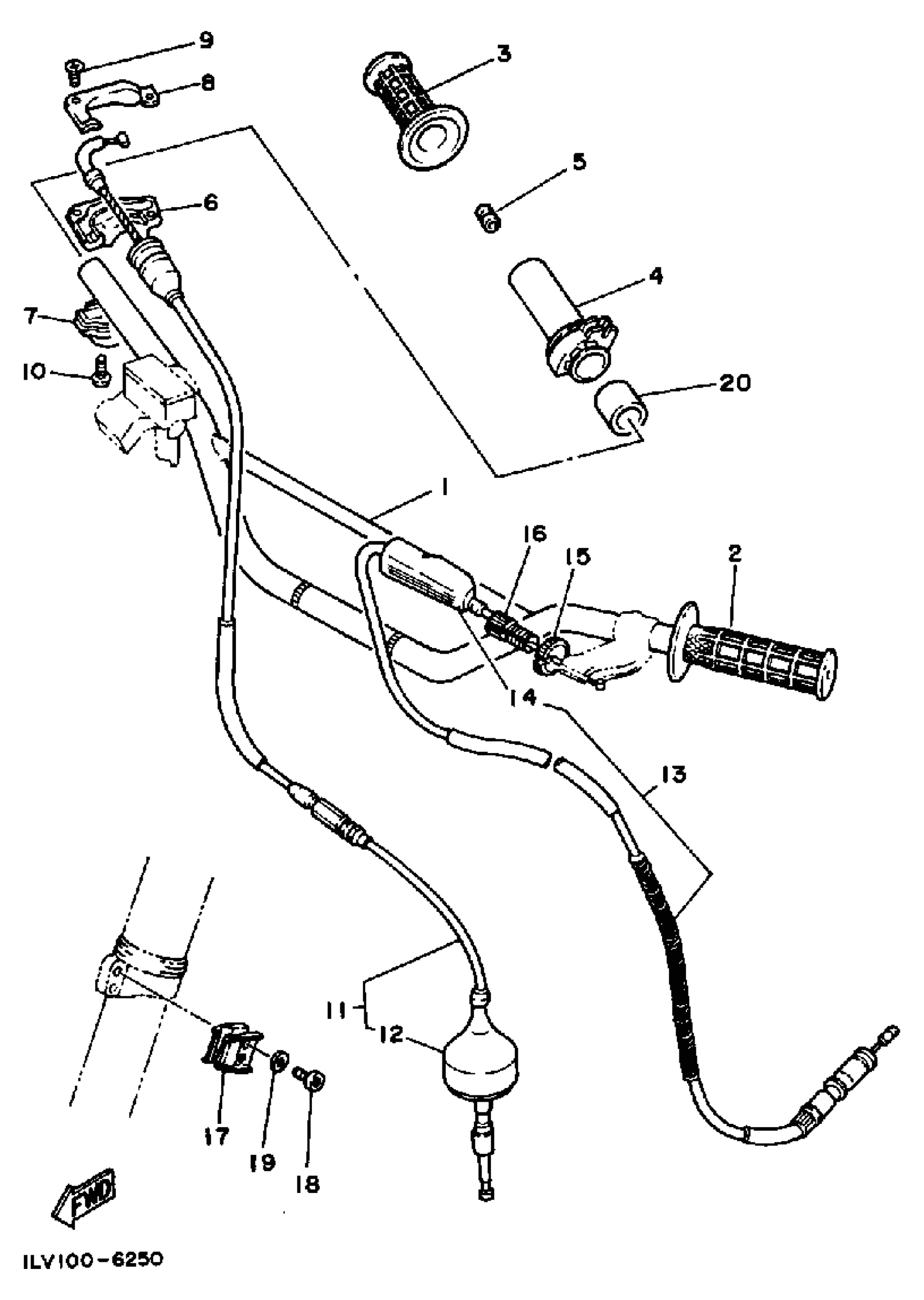

1986 Yamaha YZ490 (YZ490S) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1LN-26111-00-00

1
Out of stock

2

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

3

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

4

TUBE, THROTTLE GUIDE

23X-26243-01-00

1

$13.78

In stock

5

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

6

CAP, GRIP UPPER

23X-26281-01-00

1

$24.66

In stock

7

CAP, GRIP UNDER

431-26282-03-00

1

$34.32

In stock

8

CAP, WIRE

5X2-2628H-01-00

1

$21.62

In stock

9

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

10

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

11

CABLE, THROTTLE 1

40T-26311-00-00

1
Out of stock

12

CAP, RUBBER

510-26329-01-00

1
Out of stock

13

CABLE, CLUTCH

1LV-26335-00-00

1
Out of stock

14

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

15

NUT

90179-08401-00

1
Out of stock

16

BOLT (23X)

90123-08090-00

—

$14.46

In stock

17

CLAMP(26A)

90465-16258-00

—
Out of stock

18

BOLT, SOCKET

91314-06016-00

—

$6.17

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

20

SPACER(1LX)

90560-22281-00

—

$12.42

In stock
