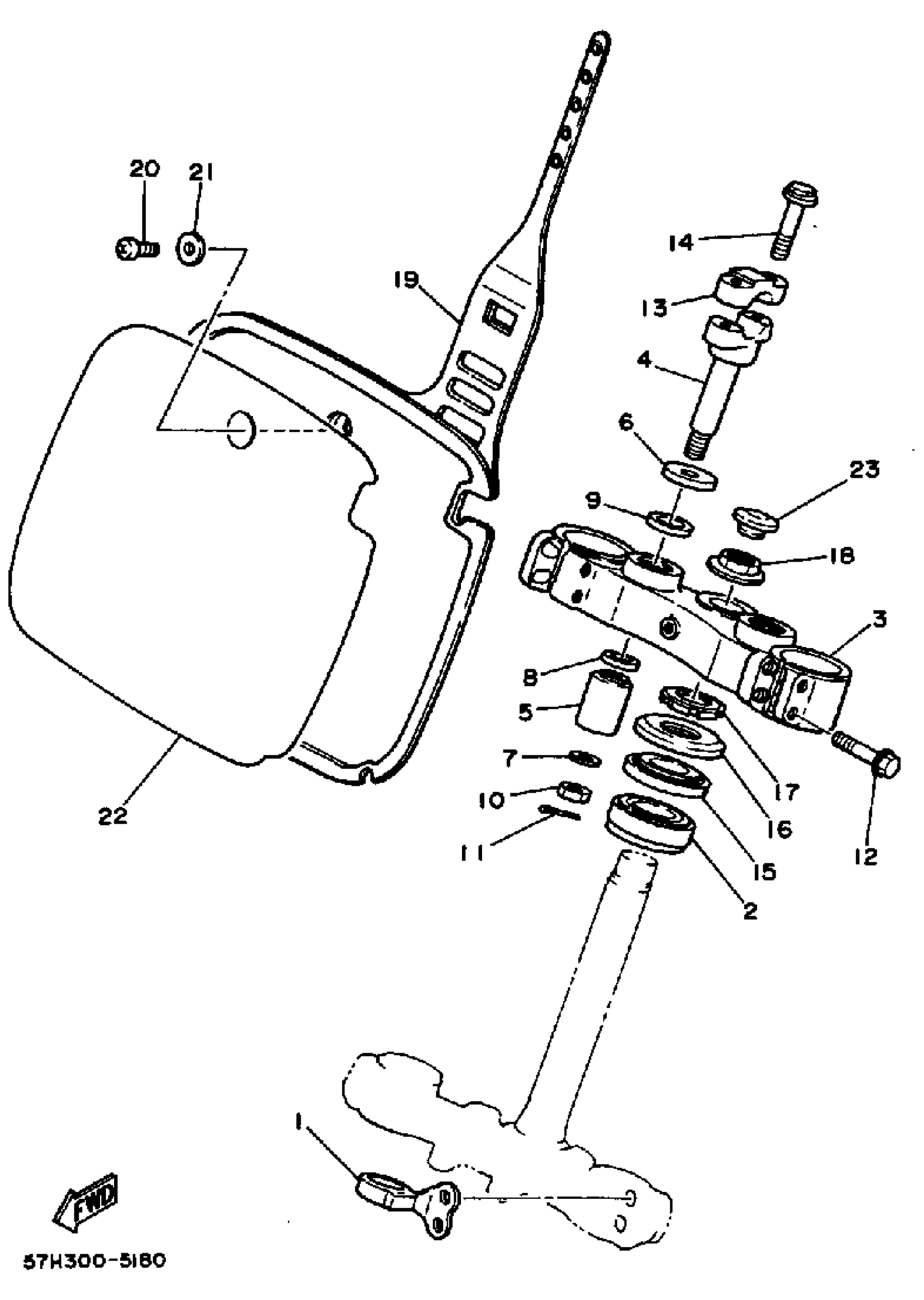

Yamaha YZ490S (YZ490) 1986 STEERING Diagram

#

Description
Price

1

GUIDE, WIRE

3R4-23389-00-00

$29.99

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$67.99

3

CROWN, HANDLE

40T-W2341-00-98

Unavailable

4

HOLDER, HANDLE LOWER

4AA-23442-01-98

Unavailable

5

BUSHING,REAR ARM

307-22123-00-00

$20.99

6

WASHER, PLATE

90201-123E8-00

Unavailable

7

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

8

COLLAR (4V4)

90387-121E8-00

$16.99

9

WASHER, PLATE (462)

90202-14077-00

$4.29

10

NUT, U

90185-10037-00

$9.49

11

PIN, COTTER

91490-20025-00

$1.99

12

BOLT, FLANGE

95814-08040-00

$4.72

13

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

14

BOLT, FLANGE

95817-08035-00

$9.49

15

BRG, TAPERED ROLLER (409)

93332-00001-00

$58.99

16

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

17

NUT

90179-25004-00

Unavailable

18

NUT

90179-22330-00

Unavailable

19

PLATE, NUMBER

3XJ-23485-01-00

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

21

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

22

EMBLEM

1LX-23395-00-00

Unavailable

23

CAP

34K-2319U-00-00

Unavailable
